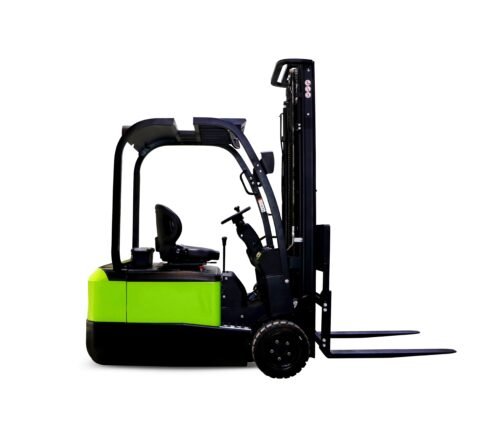

LIFMEX 3-WHEEL ELECTRIC FORKLIFT

Brand	LIFMEX
Brand Origin	UK
Capacity	2000 Kg
Color	Green
Product Dimensions	200MM × 50-10MM, 15MM × 4.5-8MM
Min Order Quantity	1

Brand

Lifmex

Capacity

2000 Kg

About This Product

Min Order Quantity: 1

Technical Details

Experience unmatched agility and precision in tight space!

Tight Turning Radius: Navigate narrow aisles and confined areas with ease.

3-Wheel Design: Offers exceptional maneuverability and responsiveness.

Compact Footprint: Ideal for small warehouses and congested spaces.

Smooth Operation: Provides a comfortable and efficient driving experience.

Reliable Power: Delivers consistent performance throughout the workday.

Faster Turnaround Times: Improve material flow and reduce cycle times.

Efficient Space Utilization: Maximize warehouse space utilization.

Enhanced Operational Efficiency: Streamline material handling processes.

Features:

Solid Rubber Tyre
Front Light
Warning Light
Seat Switch

Cost Savings:

Reduced Operating Costs: Minimize fuel consumption and maintenance expenses.
Increased Durability: Reduce the frequency of repairs and replacements.
Improved ROI: Maximize your investment with long-term reliability and performance.

Product Code	LEFL2060
Drive Unit	Electric
Operator Type	Seated
Load Capacity	(Q) kg	2000
Load Center Distance	(c) mm	500
Wheelbase	(y) mm	1358
Tyre Type	Solid Rubber
Tilt of Mast/Fork Carriage Forward/Backward	α/ß (°)	3/5
Height, Mast lowered	(h1) mm	2593
Free Lift (Load Backrest)	(h2) mm	1535
Lift Height	(h3) mm	6000
Height, Mast extended	(h4) mm	7058
Height of Overhead Guard (Cabin)	(h6) mm	2060
Seat Height/ Standing Height	(h7) mm	1000
Tow Center of Pin Height	(h10) mm	475
Overall Length	(l1) mm	2895
Length to face of forks	(l2) mm	1975
Overall Width	(b1) mm	1150
Fork Dimensions	(s/e/l) mm	40x100x920
Fork Carriage Class /Type A, B	A
Fork Carriage Width	mm	1040
Ground Clearance, laden, below mast	(m1) mm	108
Ground Clearance, center of wheelbase	(m2) mm	78
Aisle Width for pallets 1000 x 1200 crossways	(Ast) mm	3325
Aisle Width for pallets 800 x 1200 lengthways	(Ast) mm	3450
Turning Radius	(Wa) mm	1605
Travel Speed, Laden/Unladen	km/hr	13/14
Lifting Speed, Laden/Unladen	m/s	0.26/0.43
Lowering Speed, Laden/Unladen	m/s	0.44/0.435
Drive Motor Rating S2 60 min	kW	4.8 x 2
Lift Motor Rating at S3 15%	kW	11
Battery Voltage/Nominal Capacity K5	V/Ah	48V/600Ah
Type of Drive Control	AC
Sound pressure level at the driver’s ear	dB (A)	74
Approximate Battery Weight	kg	933
Approximate Service Weight (Battery included)	kg	3430
