LIFMEX 4-WHEEL ELECTRIC FORKLIFT

Brand LIFMEX
Brand Origin UK
Capacity 5360 Kg
Color Green
Product Dimensions 578MM × 228MM, 453MM × 194MM
Min Order Quantity 1

Brand

Lifmex

Capacity

3500 Kg

About This Product

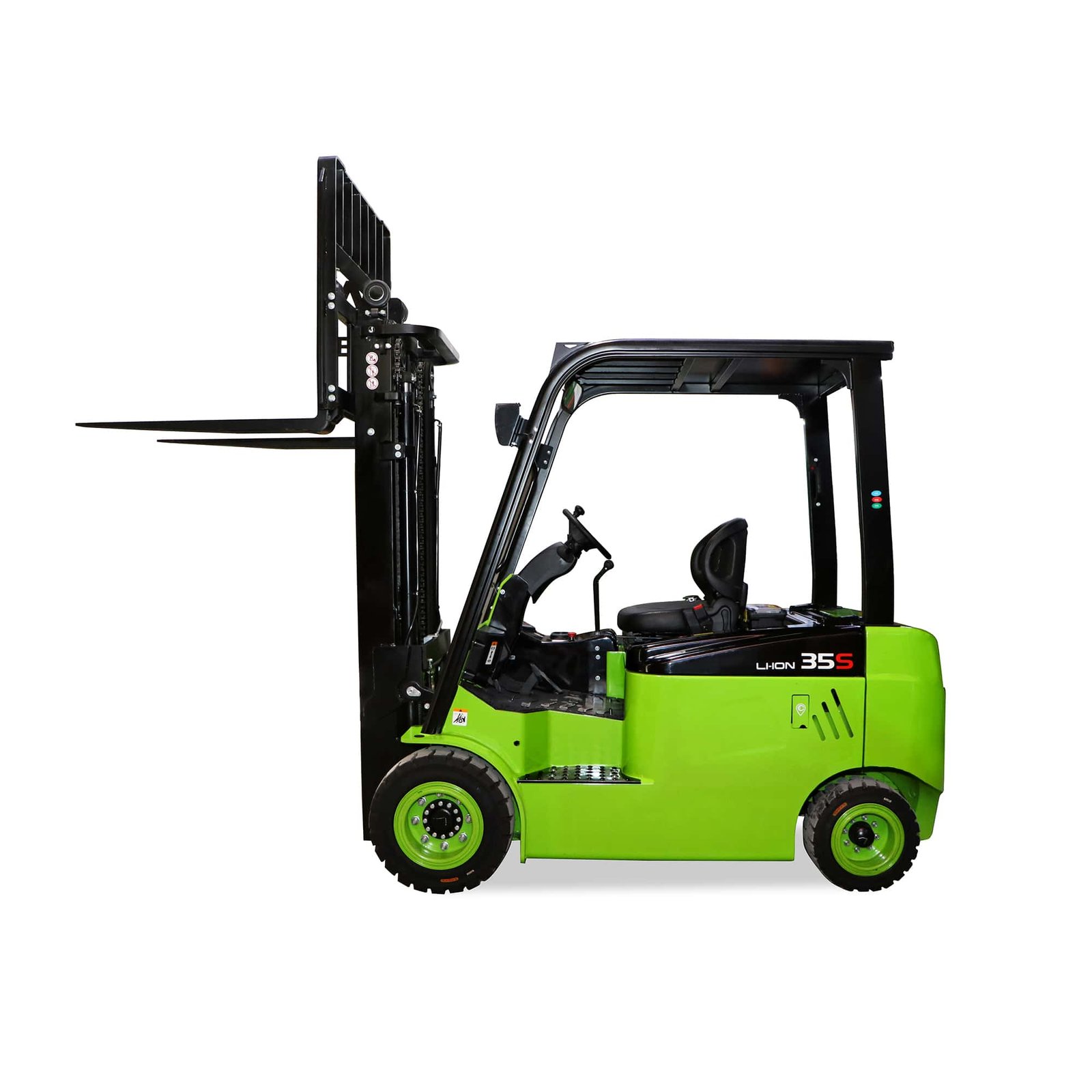

The Lifmex LEFL35L Electric Counterbalance Forklift is engineered for high efficiency and performance. With a weight capacity of 3500 Kg, it is suitable for various industrial applications. The forklift features a waterproof design, making it ideal for different weather conditions. It comes with a standard lithium battery that offers fast charging and longer charge retention. The larger cab provides high comfort for the operator. Equipped with solid rubber tires and front and warning lights, it ensures safety and stability during operation. The Lifmex LEFL35L is a reliable and efficient solution for material handling needs.

Min Order Quantity: 1

Technical Details

The reliable workhorse for demanding warehouse applications!

Four-Wheel Design: Provides superior stability and load capacity.

Wide Base: Ensures secure handling of heavy and uneven loads.

Robust Construction: Built to withstand the rigors of heavy-duty applications.

High Lifting Capacity: Handles a wide range of heavy and bulky loads.

Strong Traction: Excellent performance on various surfaces, including ramps and uneven floors.

Efficient Power Systems: Available in various fuel options to suit your needs.

Features:

  • Solid Rubber Tyre
  • Toyota Seat
  • LED Meter & Light
  • Triplex Mast
  • Front Light
  • Warning Light
  • Rearview
  • ZAPI AC Controller
  • Technology
Product Code LEFL3550
Drive Unit Electric
Operator Type Seated
Load Capacity (Q) kg 3500
Load Center Distance (c) mm 500
Wheelbase (y) mm 1698
Tyre Type Solid Rubber
Tilt of Mast/Fork Carriage Forward/Backward α/ß (°) 5/9
Height, Mast lowered (h1) mm 2310
Free Lift (Load Backrest) (h2) mm 1215
Lift Height (h3) mm 5000
Height, Mast Extended (h4) mm 6095
Height of Overhead Guard (Cabin) (h6) mm 2210
Seat Height/ Standing Height (h7) mm 1120
Tow Center of Pin Height (h10) mm 380
Overall Length (l1) mm 3660
Length to face of forks (l2) mm 2590
Overall Width (b1)(b2) mm 1356
Fork Dimensions (s/e/l) mm 50x125x1070
Fork Carriage Class /Type A, B 3A
Fork Carriage Width (b3) mm 1228
Ground Clearance, laden, below mast (m1) mm 130
Ground Clearance, center of wheelbase (m2) mm 125
Aisle Width for pallets 1000 x 1200 crossways (Ast) mm 4100
Aisle Width for pallets 800 x 1200 lengthways (Ast) mm 4300
Turning Radius (Wa) mm 2400
Travel Speed, Laden/Unladen km/hr 15/16
Lifting Speed, Laden/Unladen m/s 0.4/0.45
Lowering Speed, Laden/Unladen m/s 0.44/0.48
Service Brake Type Hydraulic
Parking Brake Mechanical
Drive Motor Rating S2 60 min kW 16.6
Lift Motor Rating at S3 15% kW 24
Battery Voltage/Nominal Capacity K5 V/Ah 80V/540Ah
Type of Drive Control AC
Steering Design Hydraulic
Sound pressure level at the driver’s ear dB (A) 70
Approximate Battery Weight kg 395
Approximate Service Weight (Battery included) kg 5150
