Rescue Tripod with winch
| Brand | |
| Capacity |
Brand
SafeMax
Capacity
500 kg
About This Product
An equipment used for confined space entry and retrieval in manholes, storage tanks, and other vertical enclosures.
With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing cable.
Technical Details
| Product Code | STRI0020 | |||
|---|---|---|---|---|
| Physical Parameters | Adjustable height from 1.15 to 2.15 meters from ground level. Adjustment achieved by sliding telescopic legs (Inner & Outer). Maximum diameter when fully opened is 1.6 meters. Locking pins attached by cables. Securely connected two eyebolts to be used for connection to personal protective equipment. A pulley system provided for steel cable guiding in case a winch is used in the system. |
|||
| Approximate Net Weight | 14.500 kg ±10% | |||
| Metal Components | Tripod leg | Material: Premium quality aluminium alloy. Outer Section: 44mm x 44mm (wall thickness 2.4mm) Inner Section: 37.5mm x 37.5 (wall thickness 3.0mm) |
||
| Cast Head | Material: Premium quality aluminium alloy Casting: Gravity Die Casting |
|||
| Eye Bolt Locking Pin | Material: Stainless steel | |||

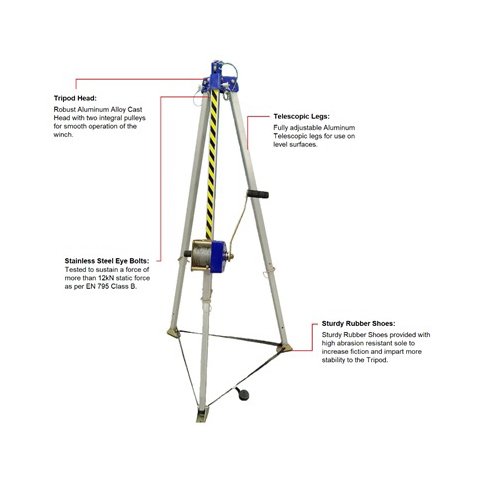

TRIPOD
It allows making configuration with one winch and one self-retractable block with hoisting facility.
Having two auxiliary eye bolts as attachment points.
Aluminum alloy cast head, legs in aluminum.
Steel support-shoes provided with rubber sole to increase friction and more stability.
Strength of anchorage point is greater than 12 kN.
Maximum Load Capacity: 500 kg.
Conforms to EN795:2012 (Type B)

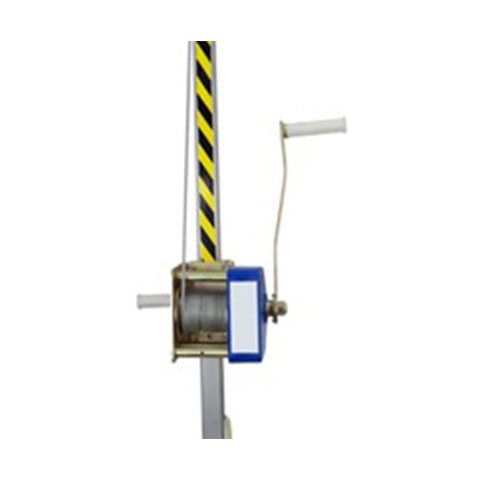

WINCH
Every Tripod is provided with built-in fixture for attaching the Winch.
Galvanized Steel Wire Rope of diameter 4.5mm
Length of Cable: 20 meters
Connector: Steel Screw-locking Carabiner
Conforms to EN1496:2017 (Class A)
| Product Code | STRI0020 | |||
|---|---|---|---|---|
| Physical Parameters | Adjustable height from 1.15 to 2.15 meters from ground level. Adjustment achieved by sliding telescopic legs (Inner & Outer). Maximum diameter when fully opened is 1.6 meters. Locking pins attached by cables. Securely connected two eyebolts to be used for connection to personal protective equipment. A pulley system provided for steel cable guiding in case a winch is used in the system. |
|||
| Approximate Net Weight | 14.500 kg ±10% | |||
| Metal Components | Tripod leg | Material: Premium quality aluminium alloy. Outer Section: 44mm x 44mm (wall thickness 2.4mm) Inner Section: 37.5mm x 37.5 (wall thickness 3.0mm) |
||
| Cast Head | Material: Premium quality aluminium alloy Casting: Gravity Die Casting |
|||
| Eye Bolt Locking Pin | Material: Stainless steel | |||
