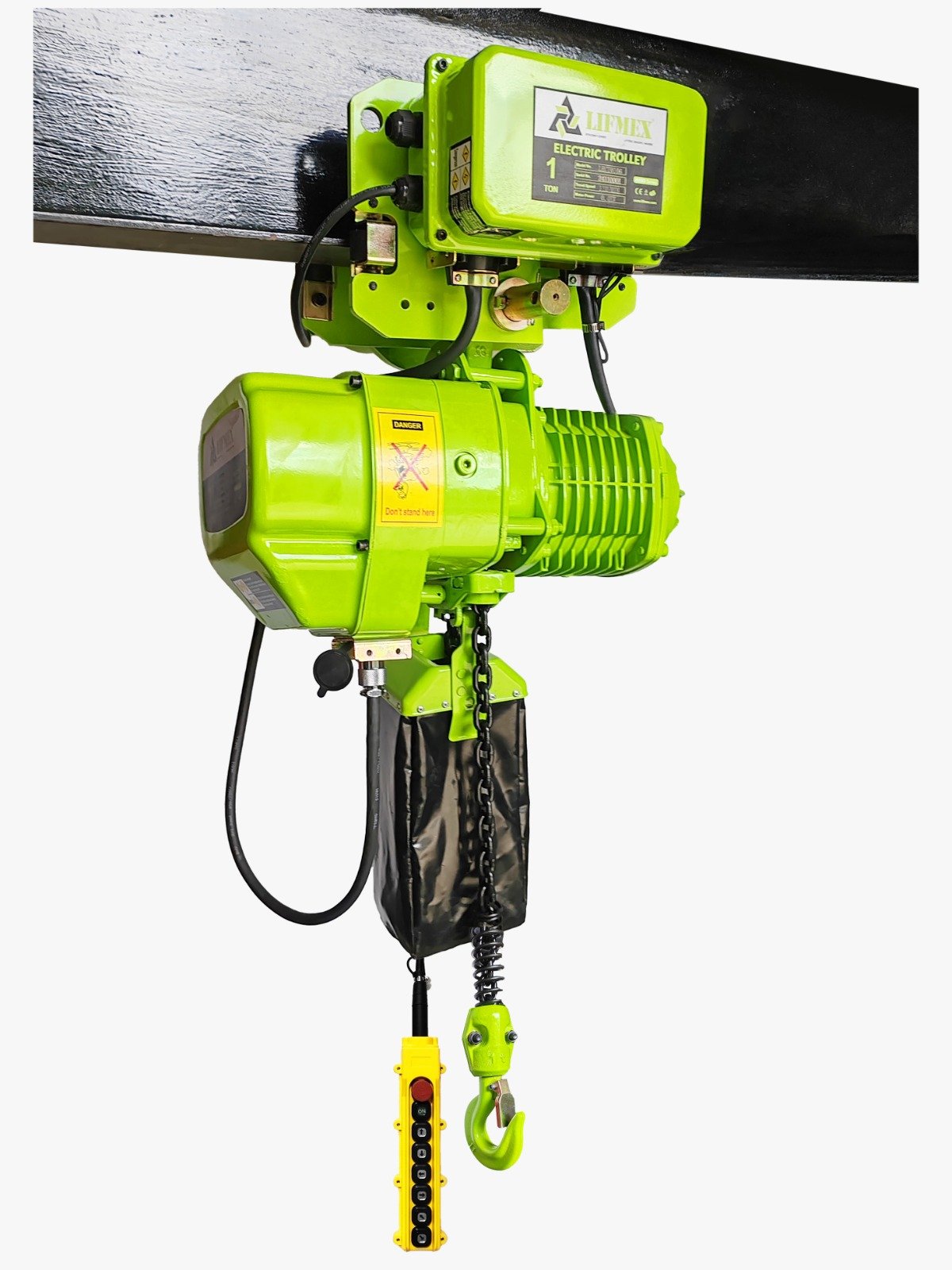

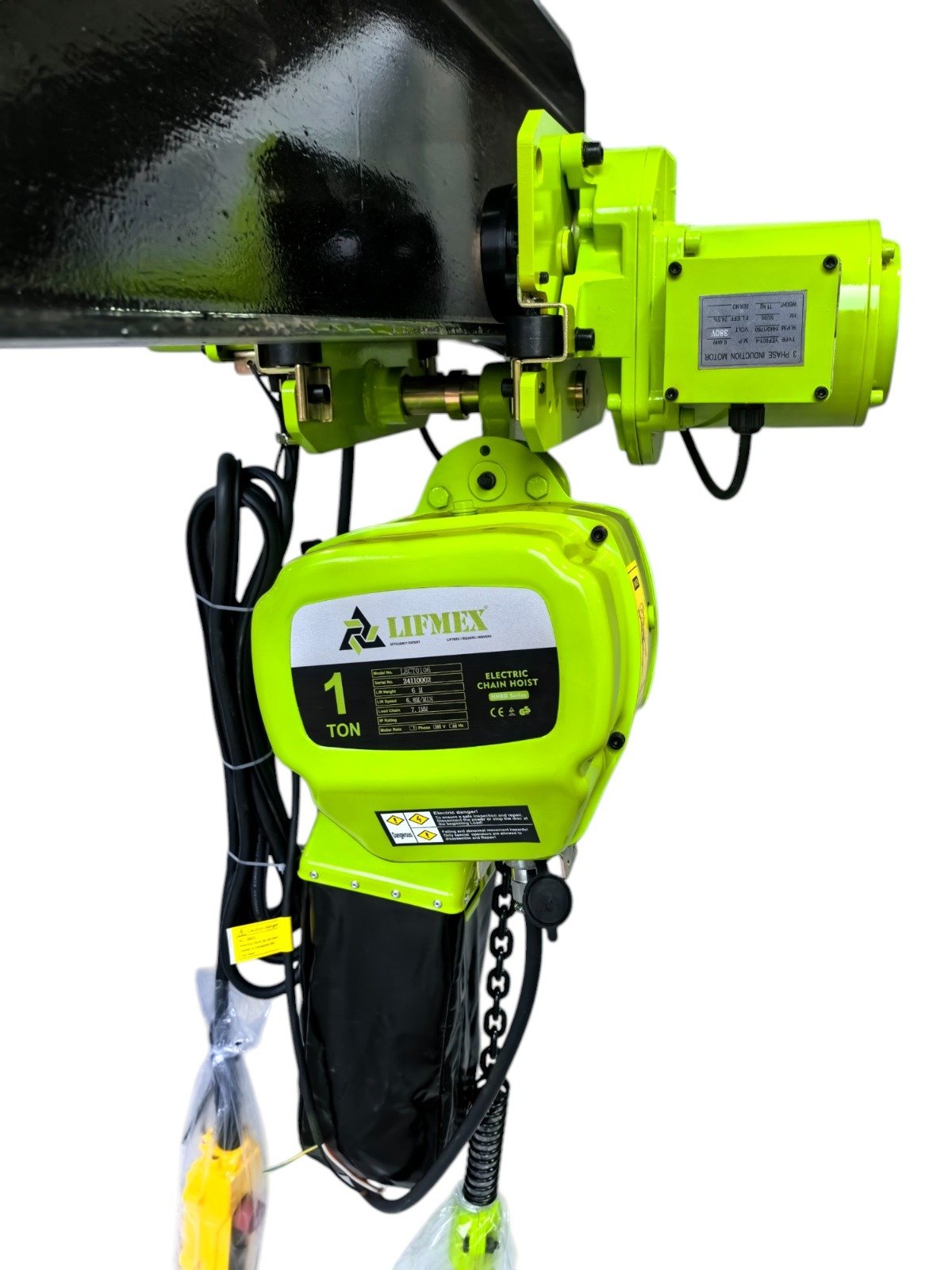

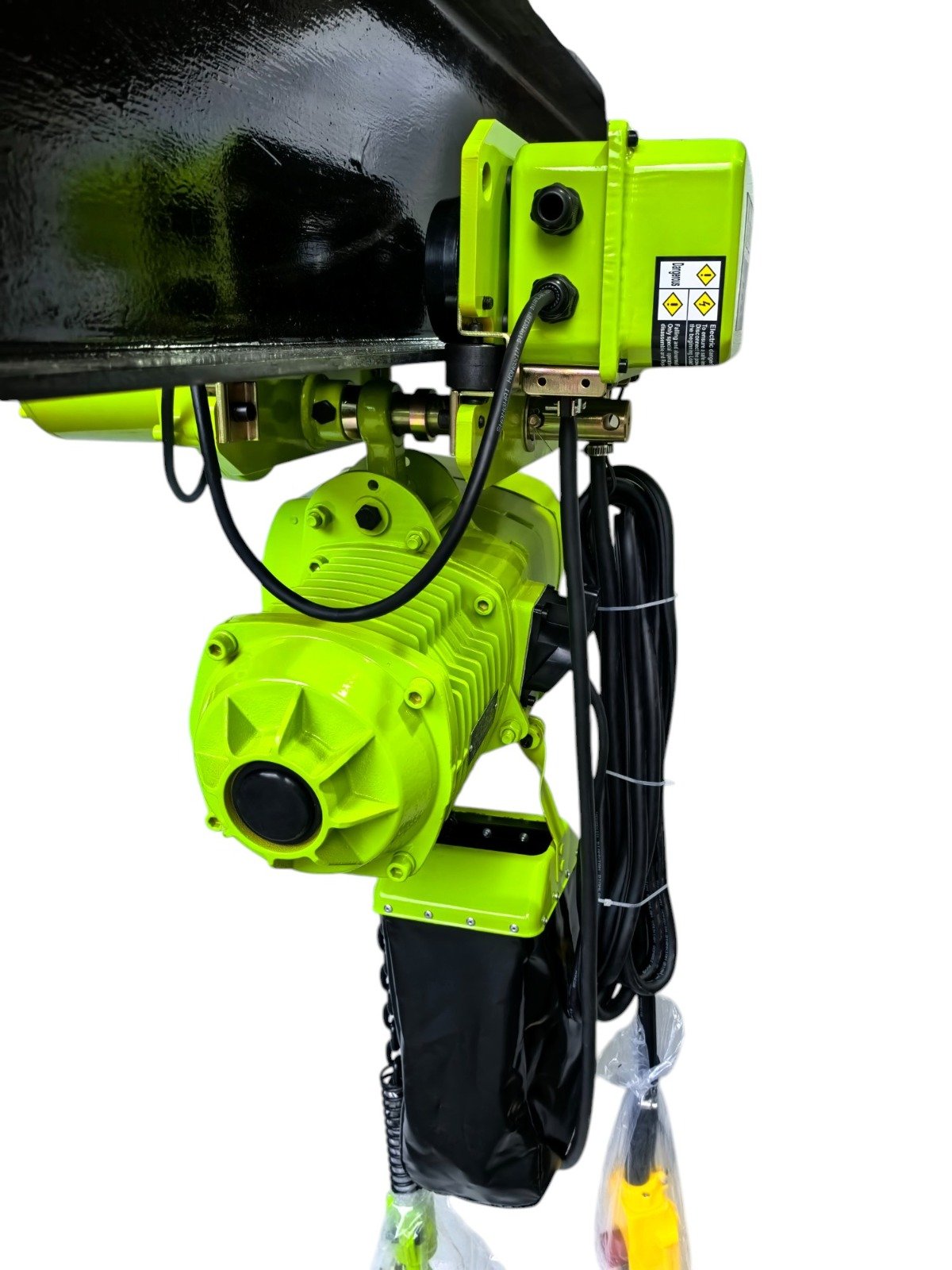

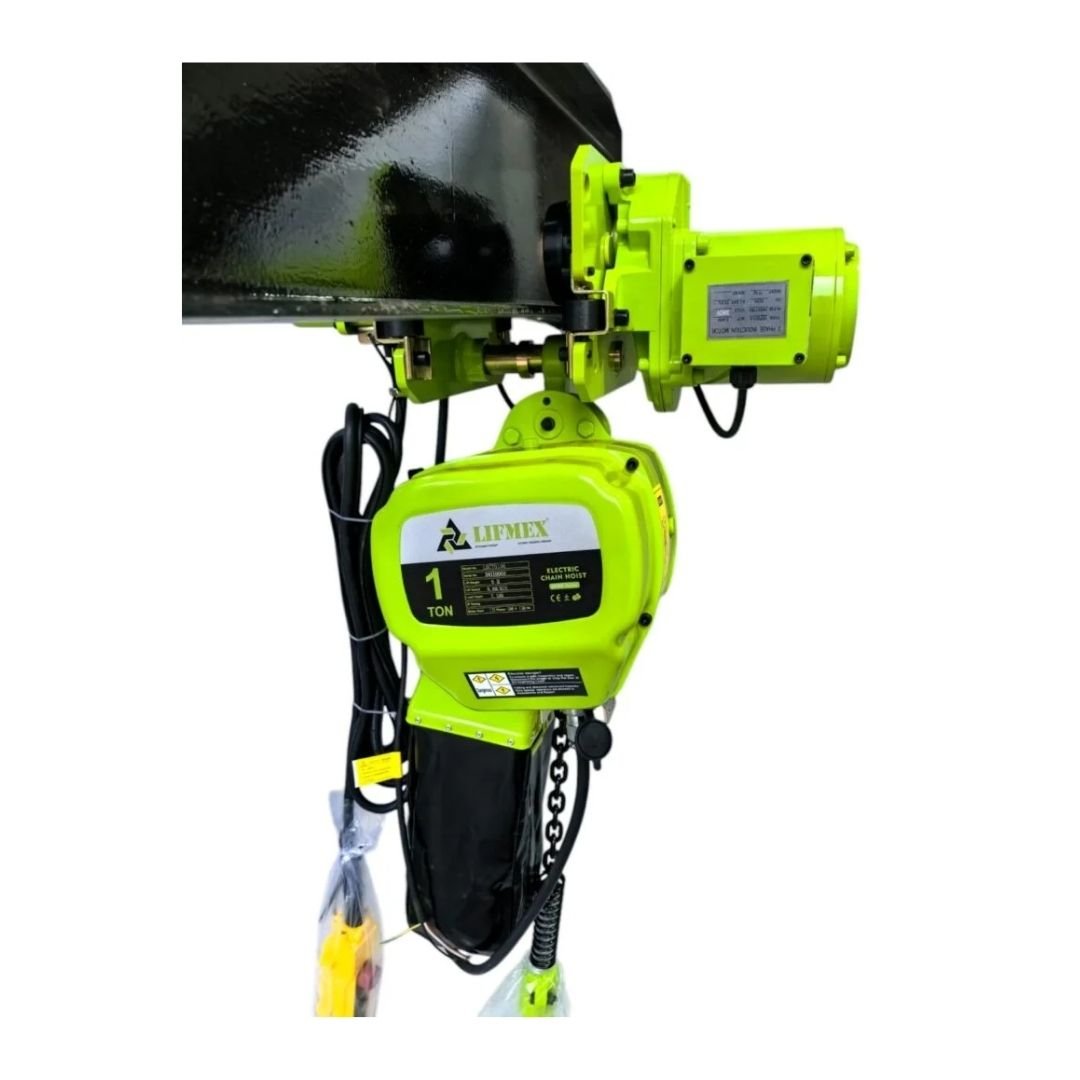

Electric Chain Hoist With Trolley
| Brand | |
| Capacity |
Capacity
0.5 TON TO 25 TON
About This Product
The Future of Overhead Lifting.
- Space Saving Design – Compact for low-headroom applications.
- Low Maintenance – Sealed bearings, self-lubricating gears.
- Smooth Operation – Precision gearbox for jerk-free lifting.
- Trolley Type: Motorized (Geared)
- 3-Phase, 380V, 50HZ
- Single Speed (Dual Speed, available upon request)
Technical Details
| Capacity (t) |
Speed 50Hz (m/min) |
Motor (kW) |
MIN Turning Radius (m) |
I-Beam Size (mm) |
|---|---|---|---|---|
| 0.5 | 11/21 | 0.4 | 0.8 | 52-153 |
| 1 | 11/21 | 0.4 | 0.8 | 52-153 |
| 2 | 11/21 | 0.4 | 0.8 | 82-178 |
| 3 | 11/21 | 0.75 | 1.0 | 100-178 |
| 5 | 11/21 | 0.75 | 1.8 | 100-178 |
| Capacity (t) | Standard Lift (m) | Test Load (kN) | Motor Power (kW) | No. of Chains | Chain Diameter (mm) | Lifting Speed (m/min) | I-Beam Size (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | Single | Dual | ||||||
| 0.5 | 3 | 6.25 | 0.75 | 0.8/0.27 | 1 | 6.3 | 6.8 | 6.9/2.3 | 58 – 153 |
| 1 | 3 | 12.5 | 1.5 | 1.8/1.6 | 1 | 7.1 | 6.6 | 6.9/2.3 | 58 – 153 |
| 2 | 3 | 25 | 3 | 3.0/1.0 | 1 | 10 | 6.6 | 6.8/2.3 | 82 – 178 |
| 3 | 3 | 37.5 | 3 | 3.0/1.0 | 1 | 11.2 | 5.4 | 5.4/1.8 | 100 – 178 |
| 5 | 3 | 62.5 | 3 | 3.0/1.0 | 2 | 11.2 | 2.8 | 2.7/0.9 | 100 – 178 |
| 7.5 | 3 | 94 | 3 | 3.0/1.0 | 3 | 11.2 | 1.8 | 1.8/0.6 | 100 – 178 |
| 10 | 6 | 125 | 3 | 3.0 x 2/1.0 x 2 | 4 | 11.2 | 2.7 | 2.7/0.9 | 150 – 220 |
| 15 | 6 | 187.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 6 | 11.2 | 1.8 | 1.8/0.6 | 150 – 220 |
| 20 | 6 | 250 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 8 | 11.2 | 1.4 | 1.5/0.6 | 150 – 220 |
| 25 | 6 | 312.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 10 | 11.2 | 1.1 | 1.2/0.4 | 160-220 |
Electric Motor Trolley
To be used together with Electric Chain Hoist. The unique side guide system makes the trolley drives smoothly. Simple structured gear box, light weight and well balanced.
| Capacity (t) |
Speed 50Hz (m/min) |
Motor (kW) |
MIN Turning Radius (m) |
I-Beam Size (mm) |
|---|---|---|---|---|
| 0.5 | 11/21 | 0.4 | 0.8 | 52-153 |
| 1 | 11/21 | 0.4 | 0.8 | 52-153 |
| 2 | 11/21 | 0.4 | 0.8 | 82-178 |
| 3 | 11/21 | 0.75 | 1.0 | 100-178 |
| 5 | 11/21 | 0.75 | 1.8 | 100-178 |
| Capacity (t) | Standard Lift (m) | Test Load (kN) | Motor Power (kW) | No. of Chains | Chain Diameter (mm) | Lifting Speed (m/min) | I-Beam Size (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | Single | Dual | ||||||
| 0.5 | 3 | 6.25 | 0.75 | 0.8/0.27 | 1 | 6.3 | 6.8 | 6.9/2.3 | 58 – 153 |
| 1 | 3 | 12.5 | 1.5 | 1.8/1.6 | 1 | 7.1 | 6.6 | 6.9/2.3 | 58 – 153 |
| 2 | 3 | 25 | 3 | 3.0/1.0 | 1 | 10 | 6.6 | 6.8/2.3 | 82 – 178 |
| 3 | 3 | 37.5 | 3 | 3.0/1.0 | 1 | 11.2 | 5.4 | 5.4/1.8 | 100 – 178 |
| 5 | 3 | 62.5 | 3 | 3.0/1.0 | 2 | 11.2 | 2.8 | 2.7/0.9 | 100 – 178 |
| 7.5 | 3 | 94 | 3 | 3.0/1.0 | 3 | 11.2 | 1.8 | 1.8/0.6 | 100 – 178 |
| 10 | 6 | 125 | 3 | 3.0 x 2/1.0 x 2 | 4 | 11.2 | 2.7 | 2.7/0.9 | 150 – 220 |
| 15 | 6 | 187.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 6 | 11.2 | 1.8 | 1.8/0.6 | 150 – 220 |
| 20 | 6 | 250 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 8 | 11.2 | 1.4 | 1.5/0.6 | 150 – 220 |
| 25 | 6 | 312.5 | 3.0 x 2 | 3.0 x 2/1.0 x 2 | 10 | 11.2 | 1.1 | 1.2/0.4 | 160-220 |
