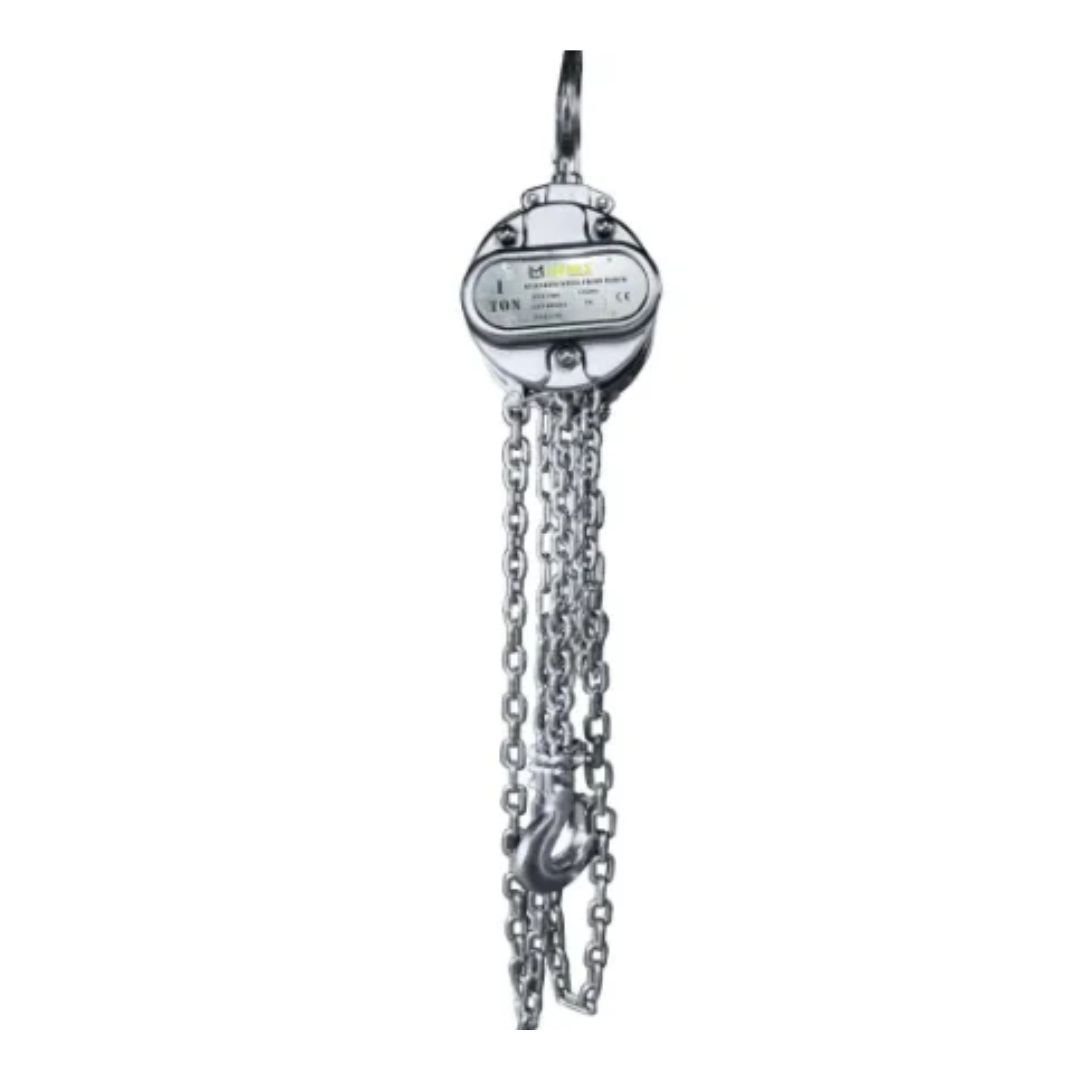

Stainless Steel Chain Hoist

Brand	LIFMEX
Brand Origin	UK
Capacity	0.5-30T
Color	Steel
Product Dimensions
Min Order Quantity	1

Brand

Lifmex

Capacity

0.5 TON TO 25 TON

About This Product

The Saltwater Specialist – Lift With Confidence.

Zero Rust – Withstands acids, chlorides, and steam.
Hygienic – No porous surfaces for bacterial growth.
Longevity – 3-5x lifespan vs. galvanized hoists in harsh conditions.
Ambient Temperature – -30°C to +60°C
Safety Compliant – Meets international standards (ISO, CE, OSHA).

Min Order Quantity: 1

Technical Details

Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort Required to Lift MAX Load (n)	Load Chain (mm)		Headroom (drawn close) Hmin (mm)
Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort Required to Lift MAX Load (n)	No. of Fall	Diameter	Headroom (drawn close) Hmin (mm)
0.5	2.5	0.75	221	1	6	255
1	2.5	1.5	304	1	6	306
1.5	2.5	2.25	343	1	8	368
2	2.5	3	314	2	6	444
3	3	4.5	343	2	8	486
5	3	6.25	383	2	10	616
8	3	10	392	4	10	700
10	3	12.5	392	4	10	700
16	3	20	392	6	10	820
20	3	28	392	8	10	1000
30	3	37.5	431	12	10	1100

Features:

Construction: Full stainless-steel body, chain, and hooks for durability in corrosive, humid, or marine environments.
Load Chain: High-grade stainless steel, heat-treated for strength and wear resistance.
Hooks: Swivel or fixed hooks with safety latches (optional).
Operation: Manual (lever or hand chain)

Applications:

Food & beverage processing
Marine/offshore operations
Chemical/pharmaceutical plants
Water treatment facilities
Cleanrooms or sterile environments

Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort Required to Lift MAX Load (n)	Load Chain (mm)		Headroom (drawn close) Hmin (mm)
Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort Required to Lift MAX Load (n)	No. of Fall	Diameter	Headroom (drawn close) Hmin (mm)
0.5	2.5	0.75	221	1	6	255
1	2.5	1.5	304	1	6	306
1.5	2.5	2.25	343	1	8	368
2	2.5	3	314	2	6	444
3	3	4.5	343	2	8	486
5	3	6.25	383	2	10	616
8	3	10	392	4	10	700
10	3	12.5	392	4	10	700
16	3	20	392	6	10	820
20	3	28	392	8	10	1000
30	3	37.5	431	12	10	1100
