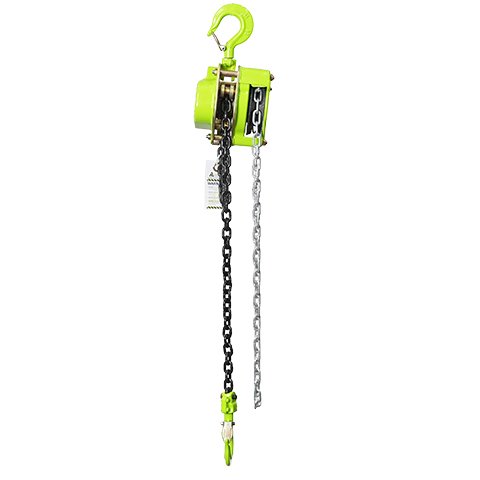

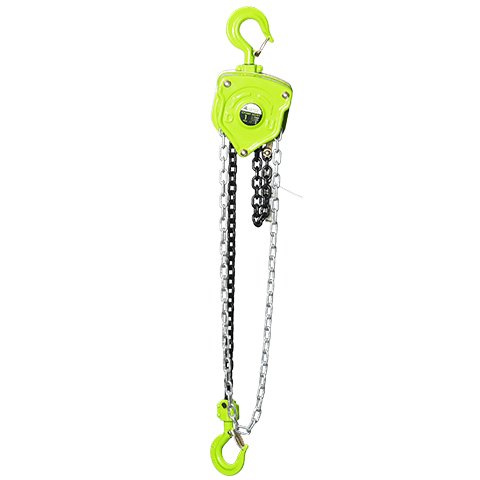

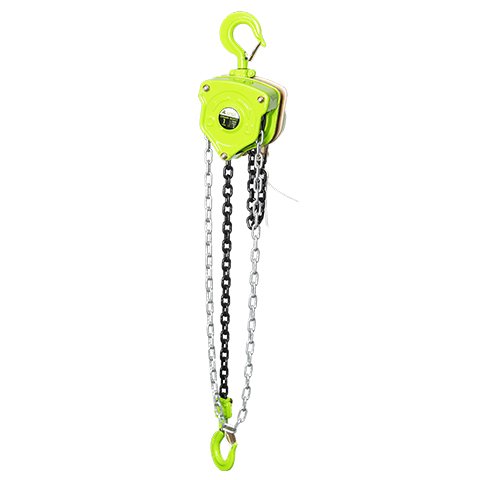

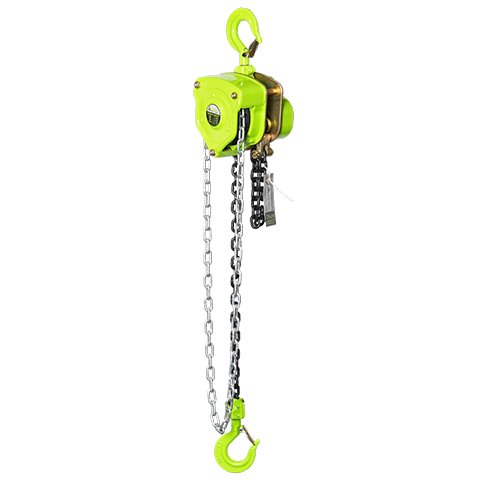

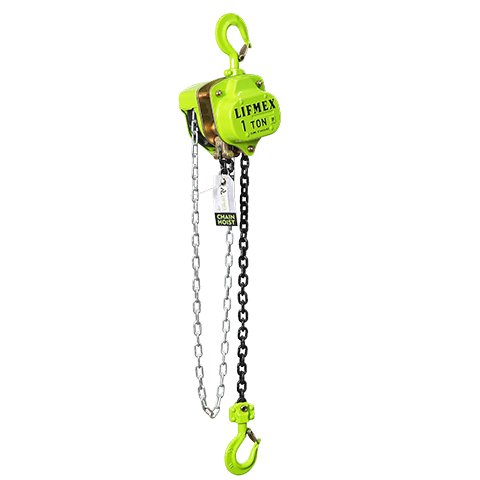

Manual Chain Hoist

Brand	LIFMEX
Brand Origin	UK
Capacity	0.5-50T
Color	Green
Product Dimensions
Min Order Quantity	1

Brand

Lifmex

Capacity

0.5 TON TO 30 TON

About This Product

Reliable. Durable. Cost-effective Lifting Solution.

Heavy-Duty Performance – Designed for industrial use with high load capacity.
Precision Control – Smooth operation for accurate load positioning.
Low Maintenance – Robust construction reduces downtime.
Safety Compliant – Meets international standards (ISO, CE, OSHA).
Versatile – Ideal for workshops, warehouses, construction, and maintenance.

Min Order Quantity: 1

Technical Details

Capacity (t)	Standard Lift (m)	Proof Load (kN)	Effort required to lift MAX Load (n)	Load Chain (mm)		Dimensions (mm)				Approx N.W. (kg/pc)
Capacity (t)	Standard Lift (m)	Proof Load (kN)	Effort required to lift MAX Load (n)	No. of Fall	Diameter	H	A	B	D	Approx N.W. (kg/pc)
0.5	2.5	7.5	350	1	5×15	285	126	145	25	8.4
1	2.5	15	330	1	6×19	315	151	159	27	12
1.5	2.5	22.5	348	1	7.1×21	340	151	178	35	16.2
2	3	30	365	2	8×24	380	183	205	39	20
3	3	45	360	2	8×24	475	151	208	39	24
5	3	75	390	2	10×30	600	195	280	45	40
7.5	3	112.5	410	3	10×30	700	185	355	53	69
10	3	150	435	4	10×30	810	195	420	60	90
15	3	225	435	6	10×30	870	190	580	75	123
20	3	300	435*2	8	10×30	890	192	630	82	203
30	3	450	435*2	12	10×30	1000	230	670	106	235

Capacity (t)	Standard Lift (m)	Proof Load (kN)	Effort required to lift MAX Load (n)	Load Chain (mm)		Dimensions (mm)				Approx N.W. (kg/pc)
Capacity (t)	Standard Lift (m)	Proof Load (kN)	Effort required to lift MAX Load (n)	No. of Fall	Diameter	H	A	B	D	Approx N.W. (kg/pc)
0.5	2.5	7.5	350	1	5×15	285	126	145	25	8.4
1	2.5	15	330	1	6×19	315	151	159	27	12
1.5	2.5	22.5	348	1	7.1×21	340	151	178	35	16.2
2	3	30	365	2	8×24	380	183	205	39	20
3	3	45	360	2	8×24	475	151	208	39	24
5	3	75	390	2	10×30	600	195	280	45	40
7.5	3	112.5	410	3	10×30	700	185	355	53	69
10	3	150	435	4	10×30	810	195	420	60	90
15	3	225	435	6	10×30	870	190	580	75	123
20	3	300	435*2	8	10×30	890	192	630	82	203
30	3	450	435*2	12	10×30	1000	230	670	106	235
