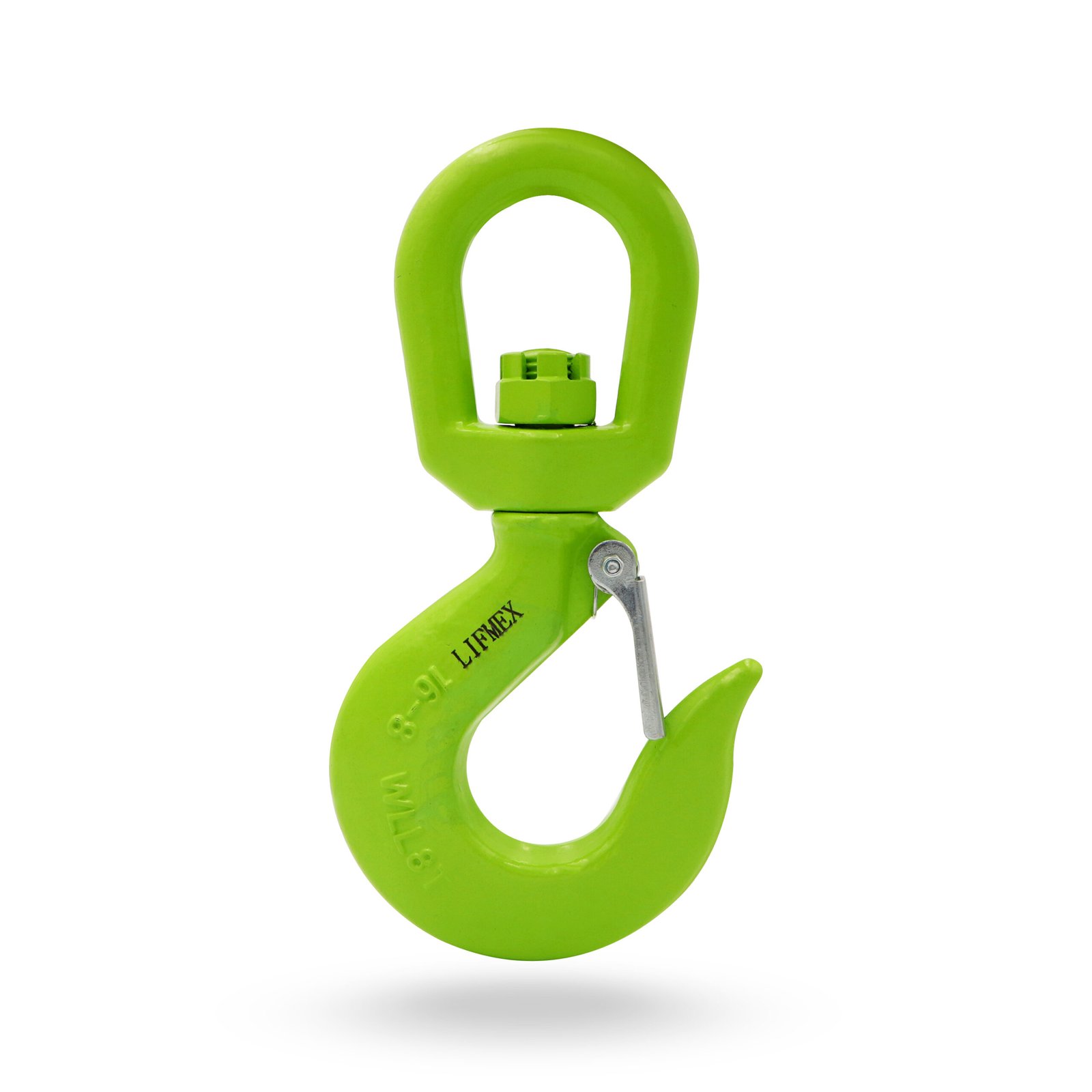

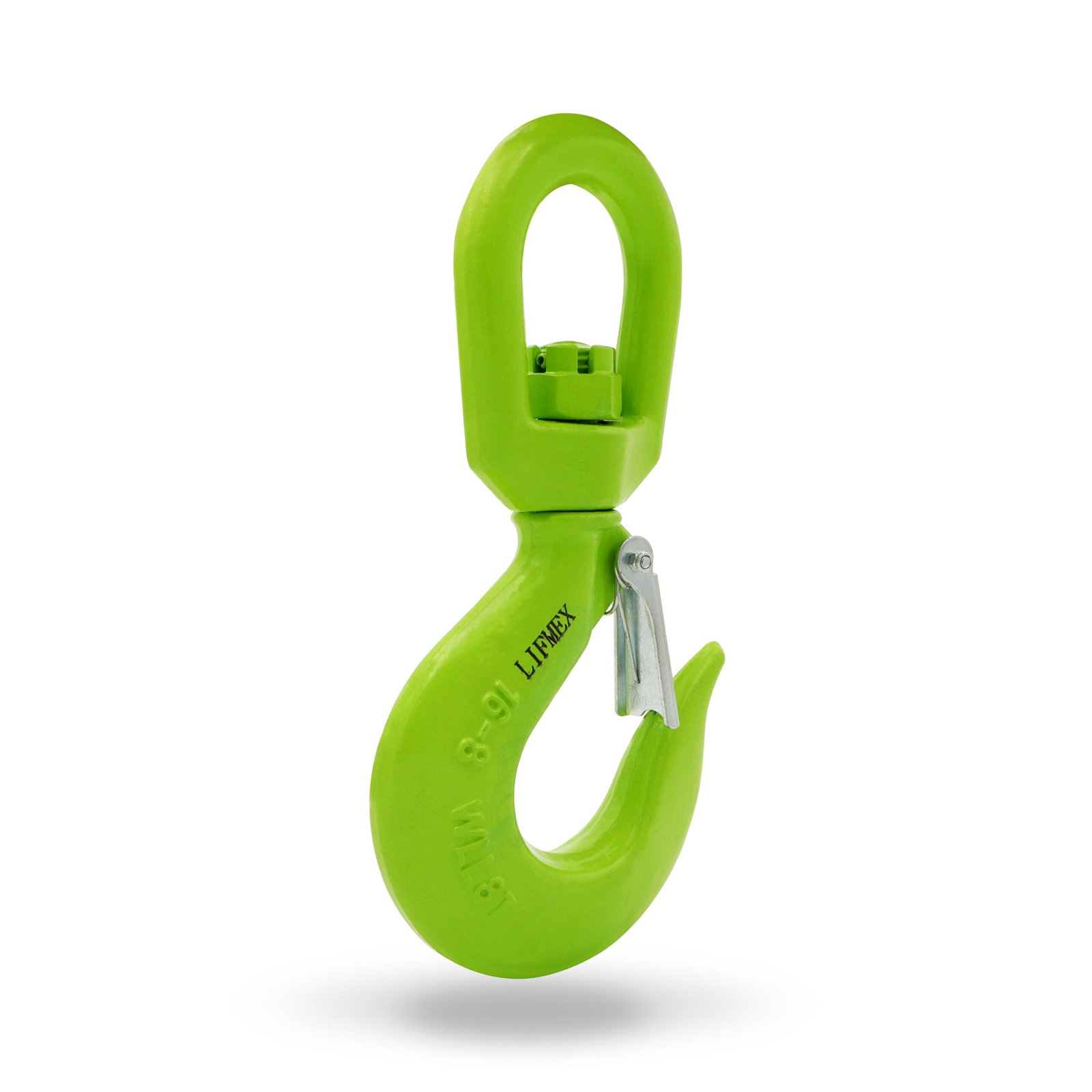

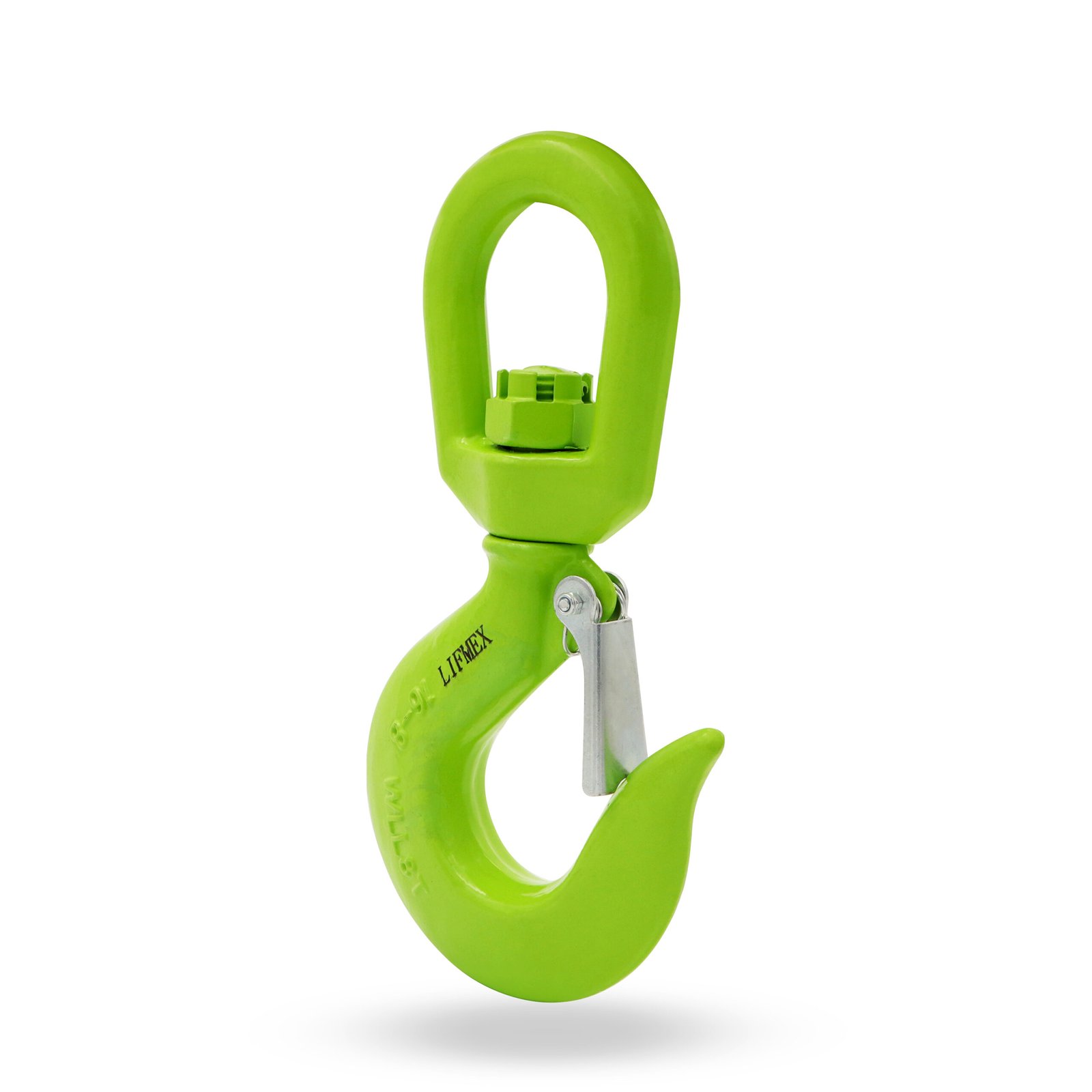

G80 Swivel Latch Hook

Brand
Capacity

Brand

Lifmex

Capacity

2 TON TO 12.5 TON

About This Product

A G80 Swivel Latch Hook is a specialized lifting tool designed to provide a secure and flexible connection between lifting chains or slings and the load being lifted.

Min Order Quantity: 1

Size (mm)	WLL (t)	BL (t)	Dimensions (mm)							Approx N.W. (kg/pc)
Size (mm)	WLL (t)	BL (t)	A	E	B	H	K	L	M	Approx N.W. (kg/pc)
7/8 – 8	2	8	42	21.5	35	15.8	150	192	21	1.02
13 – 8	5.3	21.2	48	32.5	39	18	191	246	31	3.6
16 – 8	8	32	62	43	51	25	243.5	313	34	4.66
20 – 8	12.5	50	68	49.5	53	28.5	276.5	363.5	41.5	7.4

Secure Attachment: Provides a reliable connection between lifting equipment and the load.
Swivel Action: Reduces twisting and strain on the lifting chain or sling.
Safety: The latch mechanism prevents accidental opening, ensuring load security.
Versatility: Can be used in various lifting applications, including construction, manufacturing, and logistics.

G80 Grade: Indicates high-quality alloy steel construction, meeting stringent strength and durability standards.
Swivel Mechanism: Allows the hook to rotate 360 degrees, reducing twisting and potential damage to the lifting chain or sling.
Latch Mechanism: Ensures the hook remains securely closed, preventing accidental disengagement and load slippage.
Proof Tested: The hook is proof tested to 2.5 times its Working Load Limit (WLL), verifying its strength and reliability.
Heat Treated: The steel is heat treated for optimal strength and durability.
Clear Load Ratings: The hook is stamped with its WLL, ensuring it’s used within its safe capacity.
