- Availability
- In Stock

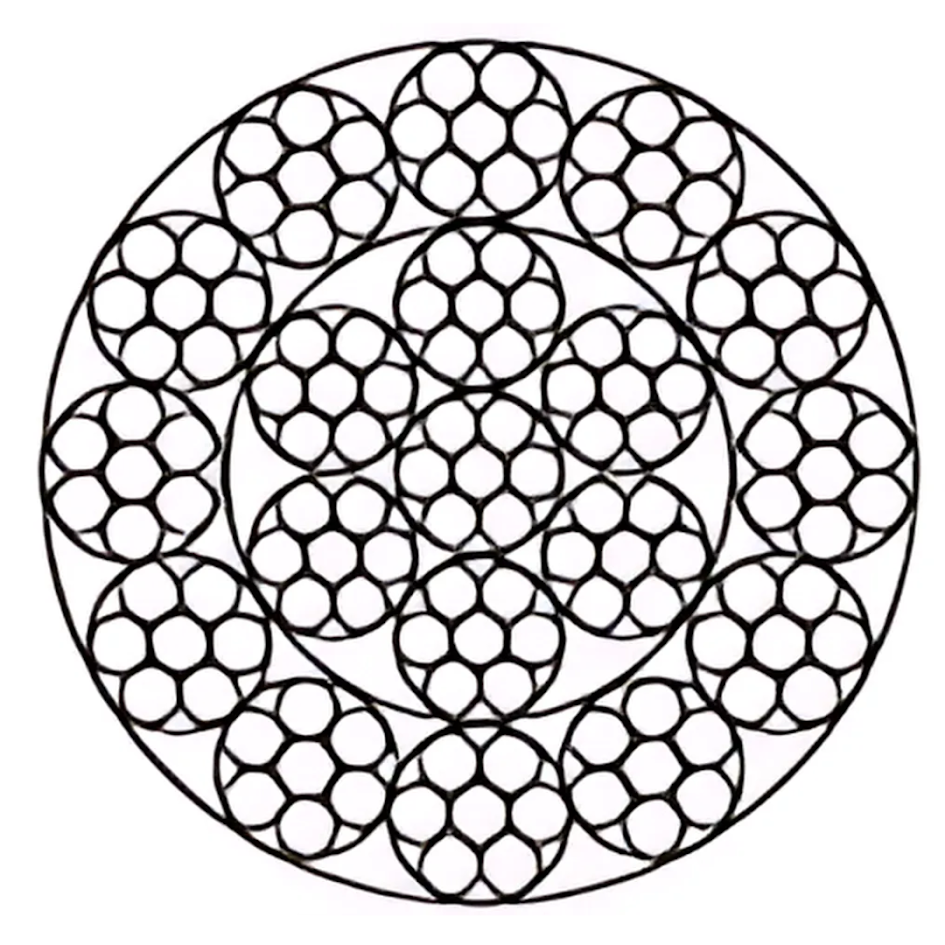

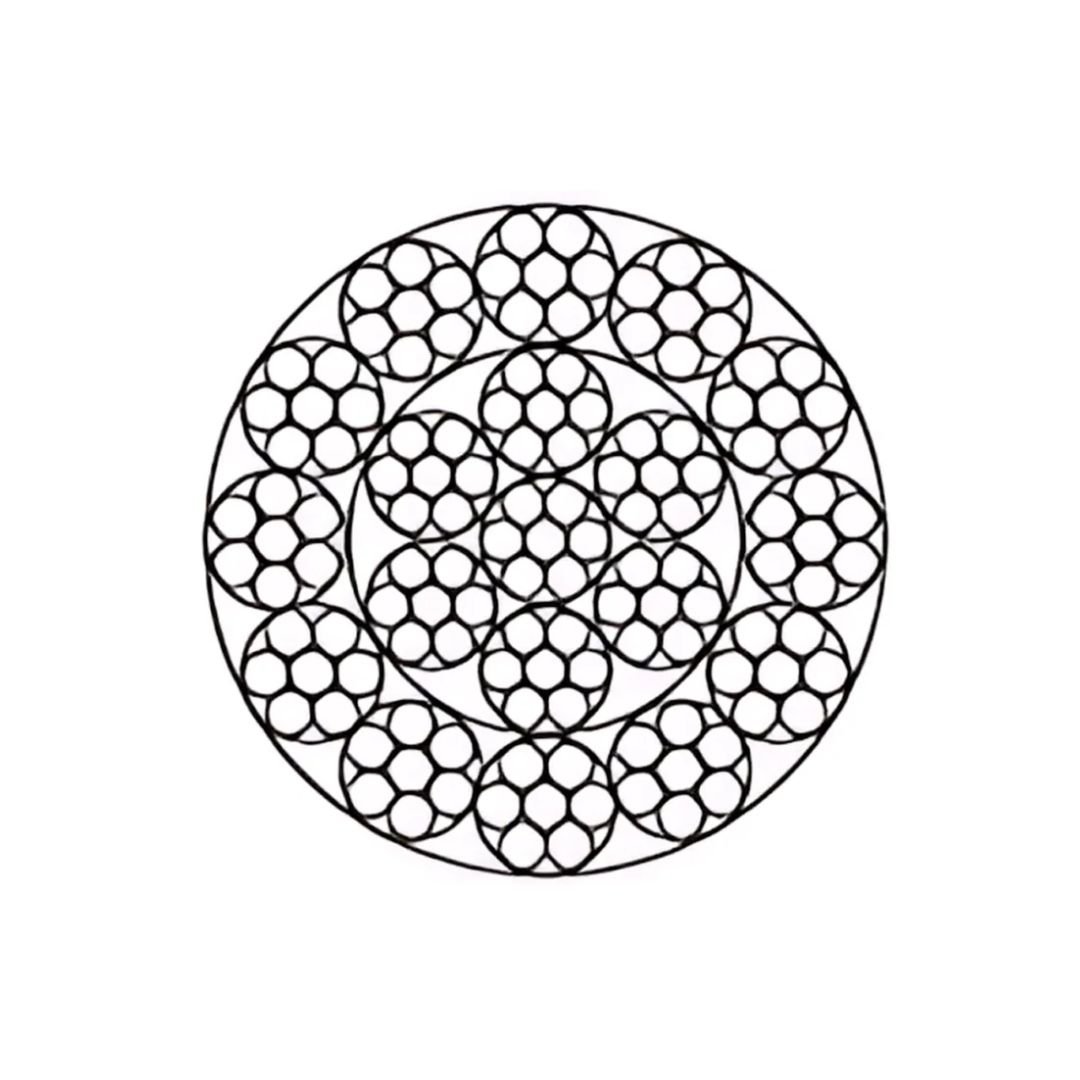

Non-rotating Wire Rope
| Brand | |
| Capacity |
Brand
Lifmex
Capacity
DIAMETER-6 MM TO 22 MM
About This Product
- A Non-rotating Wire Rope is a specialized type of wire rope designed to minimize or eliminate twisting or rotation during operation. This is achieved through specific wire lay configurations and manufacturing processes.
Technical Details
| Nominal Diameter (mm) |
Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²) |
Approx N.W. (kg/100mtr) |
|
|---|---|---|---|
| 1570 N/mm² | 1770 N/mm² | ||
| 6 | – | 20.9 | 14.5 |
| 8 | 33 | 37.2 | 25.7 |
| 10 | 51.5 | 58.1 | 40.2 |
| 12 | 74.2 | 83.6 | 57.9 |
| 14 | 101 | 114 | 78.8 |
| 16 | 132 | 149 | 103 |
| 18 | 167 | 188 | 130 |
| 20 | 206 | 232 | 161 |
| 22 | 249 | 281 | 195 |
Why is non-rotation important?
- Reduced Wear and Tear: Non-rotating wire ropes experience less wear and tear on the rope itself and the associated equipment, such as sheaves and drums.
- Improved Performance: Reduced rotation leads to smoother operation and increased efficiency.
- Enhanced Safety: By preventing twisting, non-rotating wire ropes reduce the risk of accidents and injuries.
How does it work?
- Non-rotating wire ropes are typically constructed with a specific wire lay configuration, such as Lang’s lay or Seale’s lay. These configurations are designed to balance the forces acting on the rope, minimizing the tendency to rotate.
- In addition to the wire lay, other factors such as the core material and the overall construction of the rope can influence its rotational behavior.
Common applications of non-rotating wire ropes:
- Elevators: To ensure smooth and reliable operation.
- Hoists: To prevent twisting and improve load handling.
- Mining equipment: To reduce wear and tear on machinery.
- Construction equipment: To enhance safety and efficiency
| Nominal Diameter (mm) |
Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²) |
Approx N.W. (kg/100mtr) |
|
|---|---|---|---|
| 1570 N/mm² | 1770 N/mm² | ||
| 6 | – | 20.9 | 14.5 |
| 8 | 33 | 37.2 | 25.7 |
| 10 | 51.5 | 58.1 | 40.2 |
| 12 | 74.2 | 83.6 | 57.9 |
| 14 | 101 | 114 | 78.8 |
| 16 | 132 | 149 | 103 |
| 18 | 167 | 188 | 130 |
| 20 | 206 | 232 | 161 |
| 22 | 249 | 281 | 195 |
