- Availability
- In Stock

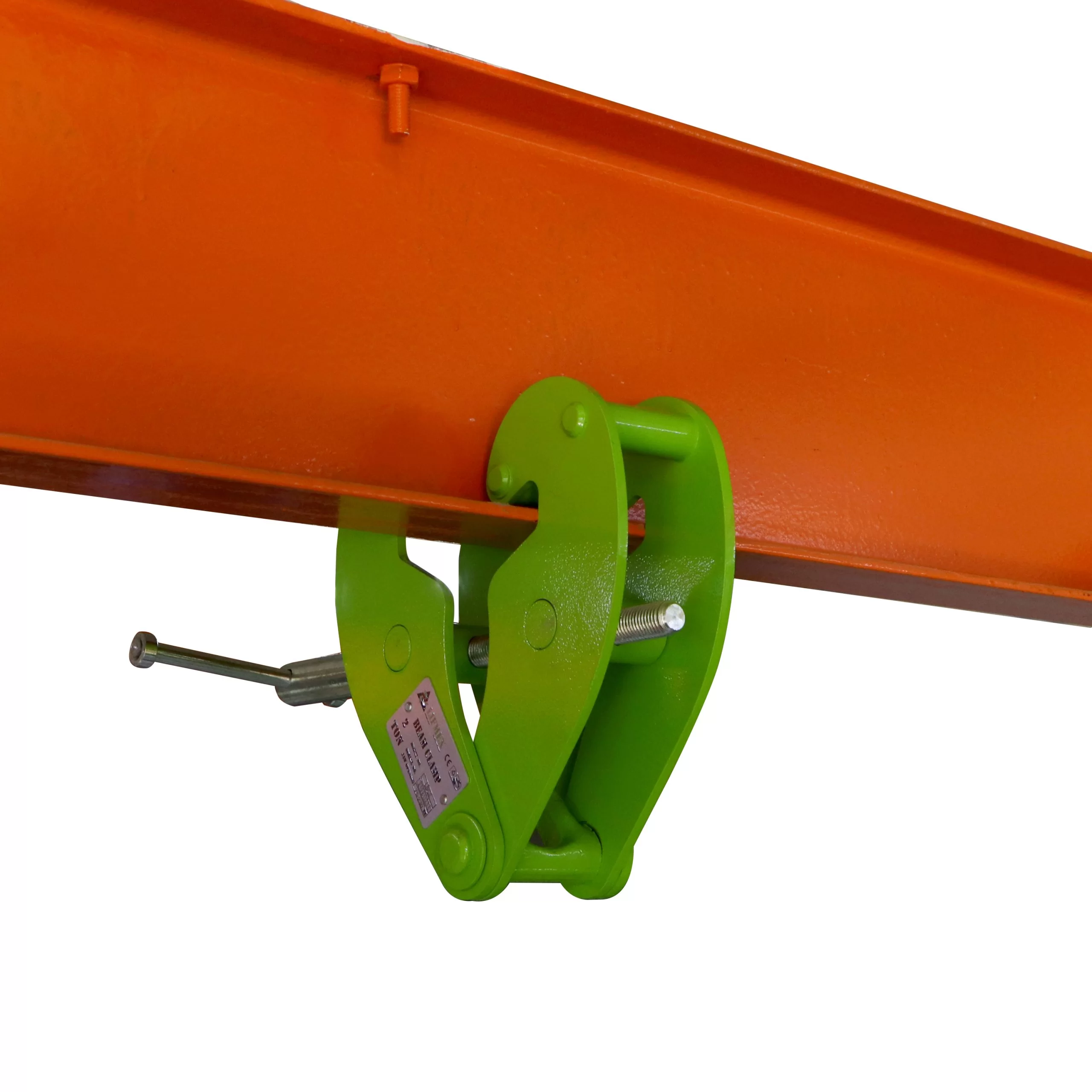

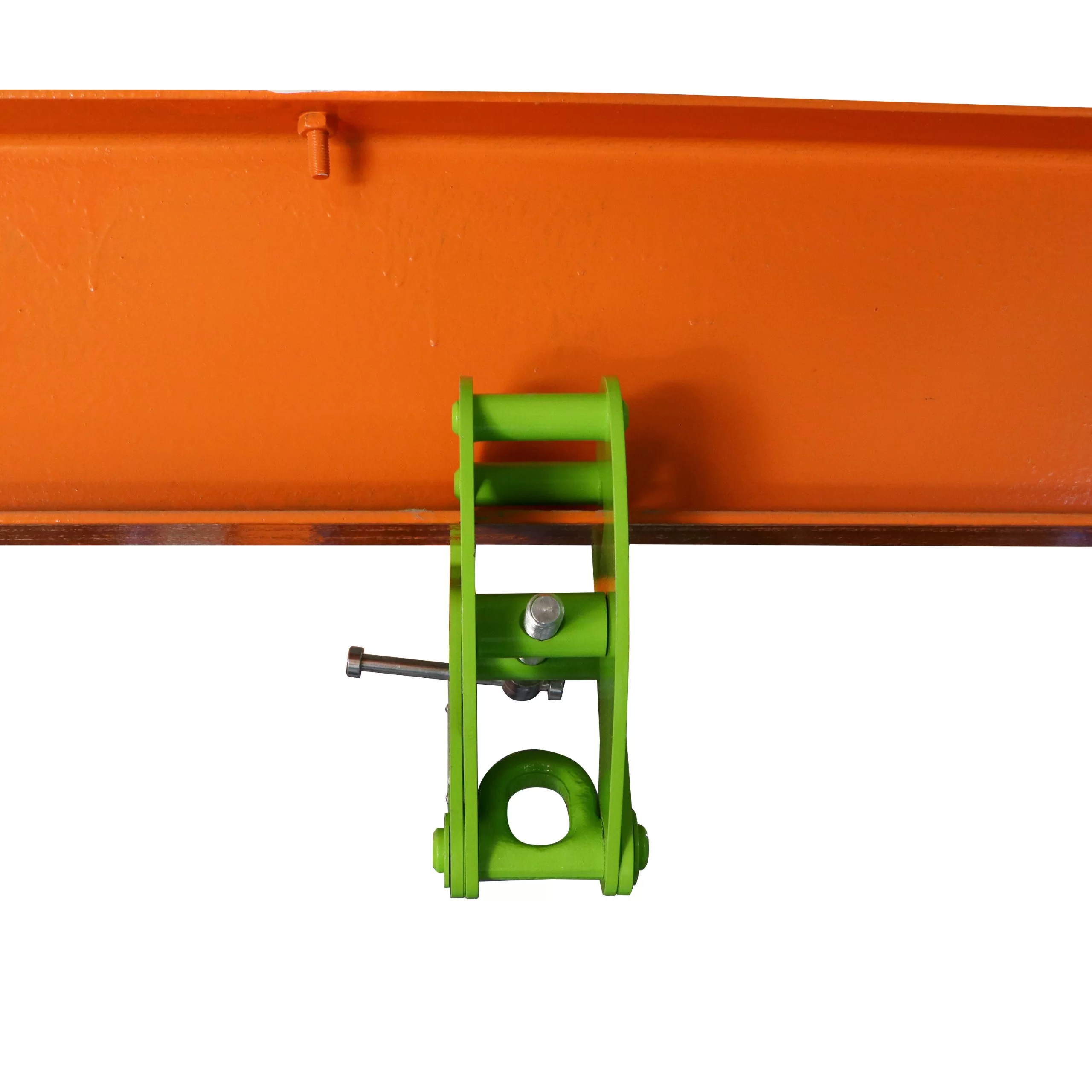

Beam Clamp
| Brand | LIFMEX |
| Brand Origin | UK |
| Capacity | 1 ton, 2 tons, 3 tons, 5 tons, and 10 tons |
| Color | Green |
| Product Dimensions | 75 mm to 320 mm |
| Min Order Quantity | 1 |
Brand
Lifmex
Capacity
1 TON TO 10 TON
About This Product
A Beam Clamp can be used to suspend manual, electric or an air hoist from a suitably rated beam or gantry.
Compact size for quick & easy installation for I & H beam.
Technical Details
| Rated Capacity (t) | Test Load (kN) | Adjustable Beam Width (mm) | Approx N.W. (kg/pc) |
|---|---|---|---|
| 1 | 12.5 | 75 – 230 | 4.2 |
| 2 | 25 | 75 – 230 | 5.1 |
| 3 | 37.5 | 80 – 320 | 10.4 |
| 5 | 62.5 | 80 – 320 | 12.2 |
| 10 | 125 | 90 – 320 | 18.8 |
Designed to provide a quick and versatile rigging point for all types of hoisting equipment. Eliminates the requirement for drilling, welding or other attachment techniques.
| Rated Capacity (t) | Test Load (kN) | Adjustable Beam Width (mm) | Approx N.W. (kg/pc) |
|---|---|---|---|
| 1 | 12.5 | 75 – 230 | 4.2 |
| 2 | 25 | 75 – 230 | 5.1 |
| 3 | 37.5 | 80 – 320 | 10.4 |
| 5 | 62.5 | 80 – 320 | 12.2 |
| 10 | 125 | 90 – 320 | 18.8 |
