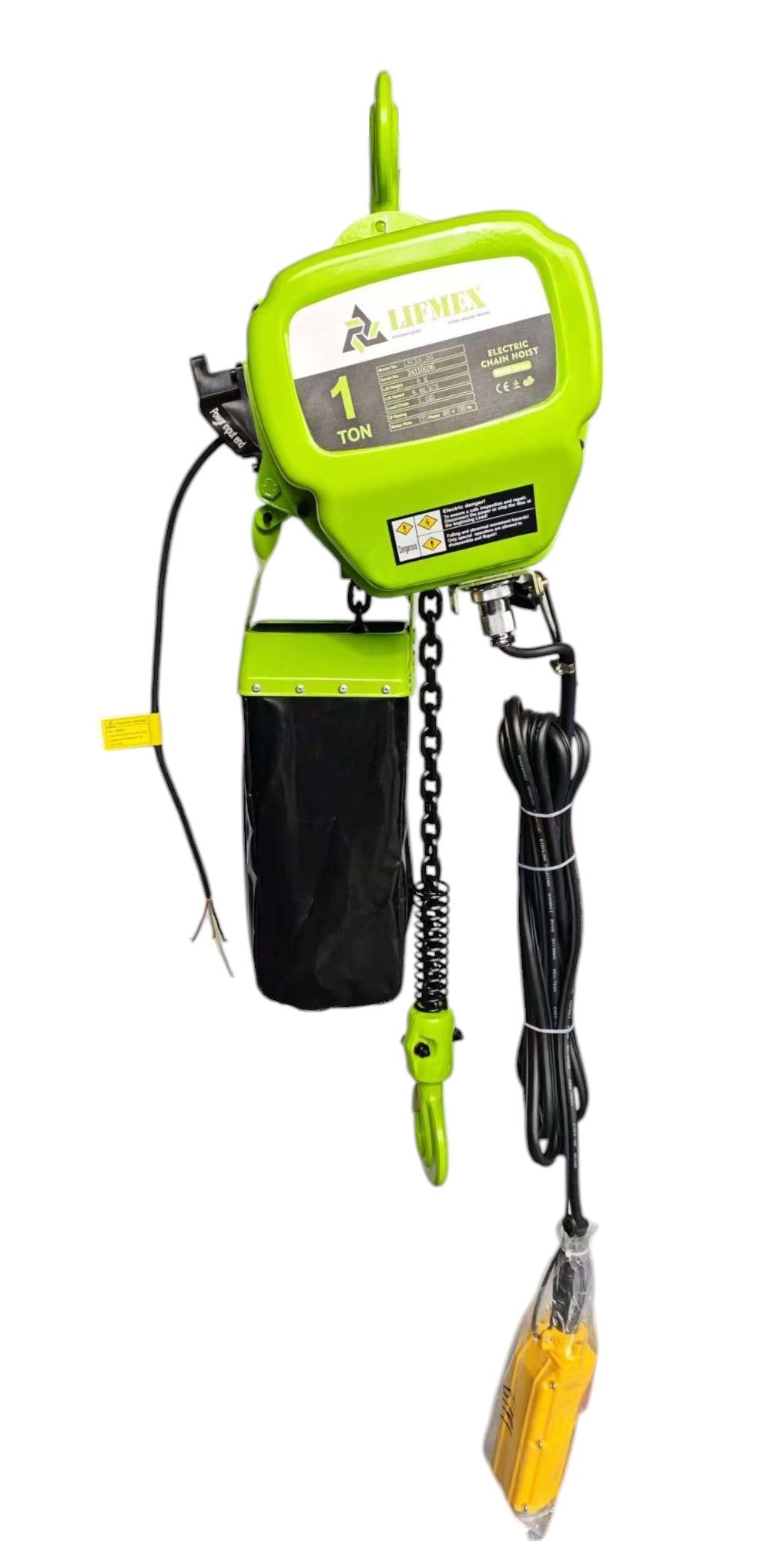

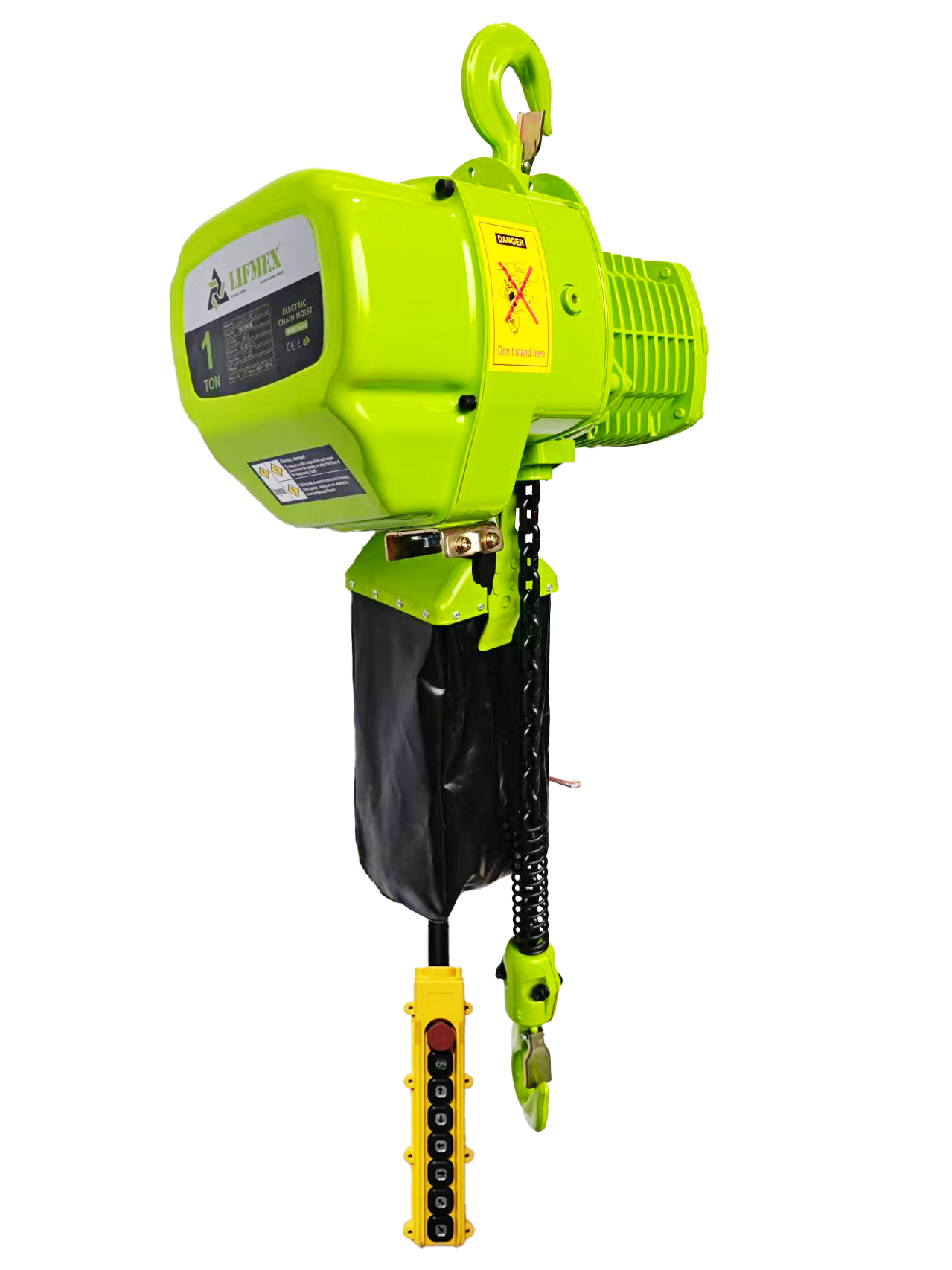

Electric Chain Hoist

Brand	LIFMEX
Brand Origin	UK
Capacity
Color	Green
Product Dimensions
Min Order Quantity	1

Brand

Lifmex

0.5 TON TO 10 TON

About This Product

Lift Smarter, Work Stronger.

Smooth & Precise Lifting – Advanced motor control for safe load handling.
Low Maintenance – Sealed gears and low-noise operation.
Compact Design – Ideal for confined workspaces.
Reliable Performance – Tested under rigorous industrial conditions.
Safety Guaranteed – Meets ISO 9001, CE, and OSHA standards.

Min Order Quantity: 1

Technical Details

Capacity (t)	Standard Lift (m)	Test Load (kN)	Motor Power (kW)		No. of Chains	Chain Diameter (mm)	Lifting Speed (m/min)		I-Beam Size (mm)
Capacity (t)	Standard Lift (m)	Test Load (kN)	Single	Dual	No. of Chains	Chain Diameter (mm)	Single	Dual	I-Beam Size (mm)
0.5	3	6.25	0.75	0.8/0.27	1	6.3	6.8	6.9/2.3	58 – 153
1	3	12.5	1.5	1.8/1.6	1	7.1	6.6	6.9/2.3	58 – 153
2	3	25	3	3.0/1.0	1	10	6.6	6.8/2.3	82 – 178
3	3	37.5	3	3.0/1.0	1	11.2	5.4	5.4/1.8	100 – 178
5	3	62.5	3	3.0/1.0	2	11.2	2.8	2.7/0.9	100 – 178
7.5	3	94	3	3.0/1.0	3	11.2	1.8	0.6	100 – 178
10	6	125	3	3.0 × 2/1.0 × 2	4	11.2	2.7	2.7/0.9	150 – 220

Engineered for Precision Lifting Across Industries:

Manufacturing & Assembly
Construction & Infrastructure
Warehousing & Logistics
Automotive & Repair
Marine & Offshore
Energy & Utilities
Entertainment & Events
Mining & Heavy Industry

Capacity (t)	Standard Lift (m)	Test Load (kN)	Motor Power (kW)		No. of Chains	Chain Diameter (mm)	Lifting Speed (m/min)		I-Beam Size (mm)
Capacity (t)	Standard Lift (m)	Test Load (kN)	Single	Dual	No. of Chains	Chain Diameter (mm)	Single	Dual	I-Beam Size (mm)
0.5	3	6.25	0.75	0.8/0.27	1	6.3	6.8	6.9/2.3	58 – 153
1	3	12.5	1.5	1.8/1.6	1	7.1	6.6	6.9/2.3	58 – 153
2	3	25	3	3.0/1.0	1	10	6.6	6.8/2.3	82 – 178
3	3	37.5	3	3.0/1.0	1	11.2	5.4	5.4/1.8	100 – 178
5	3	62.5	3	3.0/1.0	2	11.2	2.8	2.7/0.9	100 – 178
7.5	3	94	3	3.0/1.0	3	11.2	1.8	0.6	100 – 178
10	6	125	3	3.0 × 2/1.0 × 2	4	11.2	2.7	2.7/0.9	150 – 220
