Ratchet Puller and Ratchet Puller with Grip
| Brand | LIFMEX |
| Brand Origin | UK |
| Capacity | |
| Color | |
| Product Dimensions | 270MM × 260MM ×110MM |
| Min Order Quantity | 1 |
Brand
Lifmex
Capacity
1 TON TO 3 TON
About This Product
- Designed for electric wire pulling for field needs.
- Equipped with automatic mechanical brake and change pawl.
- Widely used in Electric Power, Telephone Wire works, Construction, Farm & General Purposes.
- Solid ductile and malleable iron construction. Easily repairable and inexpensive to maintain.
Technical Details

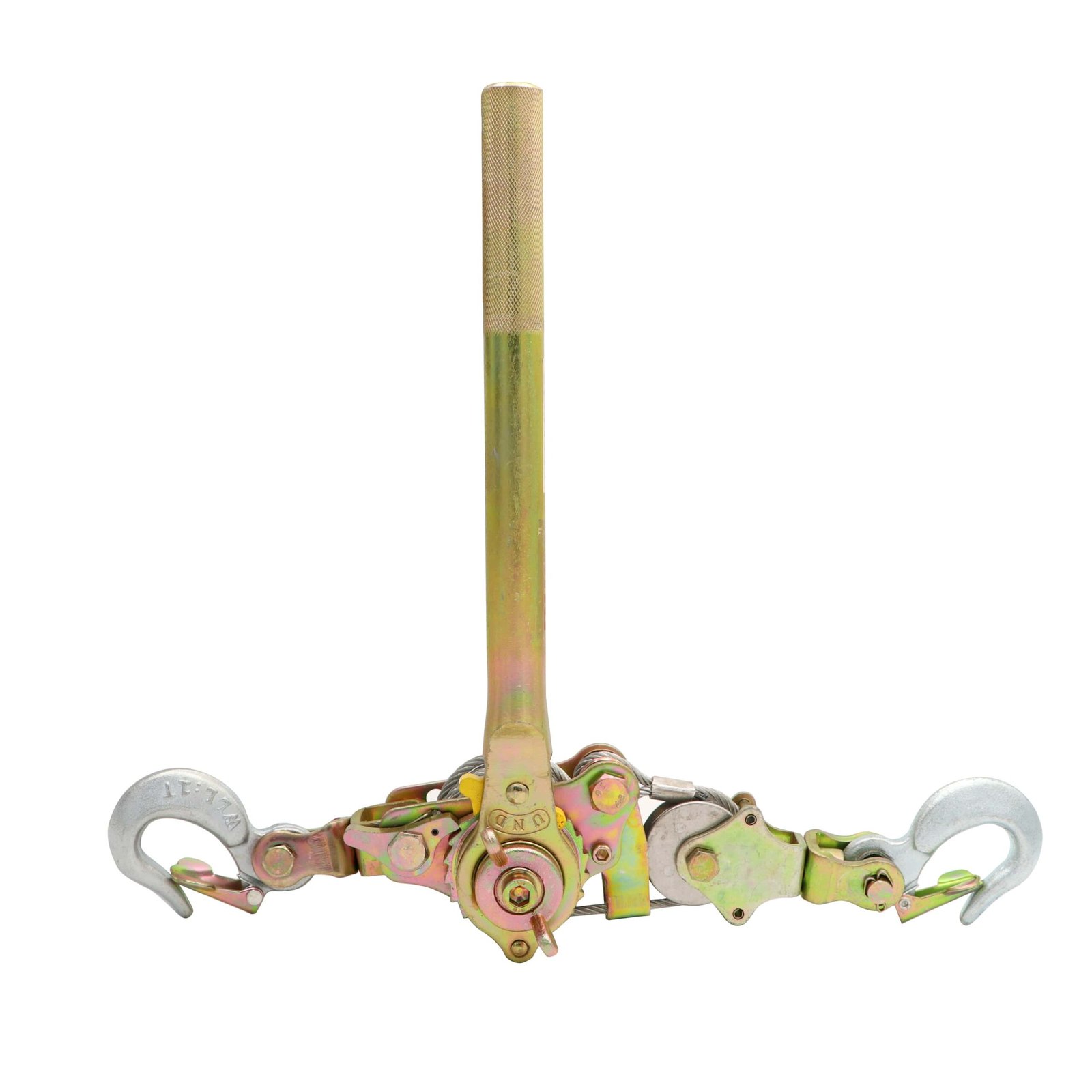

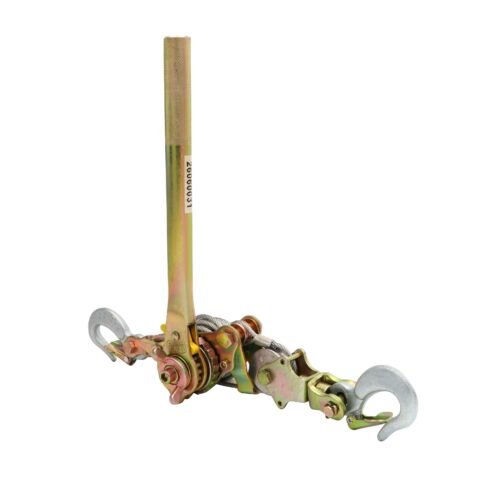

RATCHET PULLER
| Capacity (t) |
Pull Length (mm) | Wire Size (mm) |
|
|---|---|---|---|
| MIN | MAX | ||
| 1 | 410 | 1210 | 4.5 x 2300 |
| 2 | 480 | 1400 | 5.5 x 2300 |
| 3 | 480 | 1400 | 6 x 2400 |

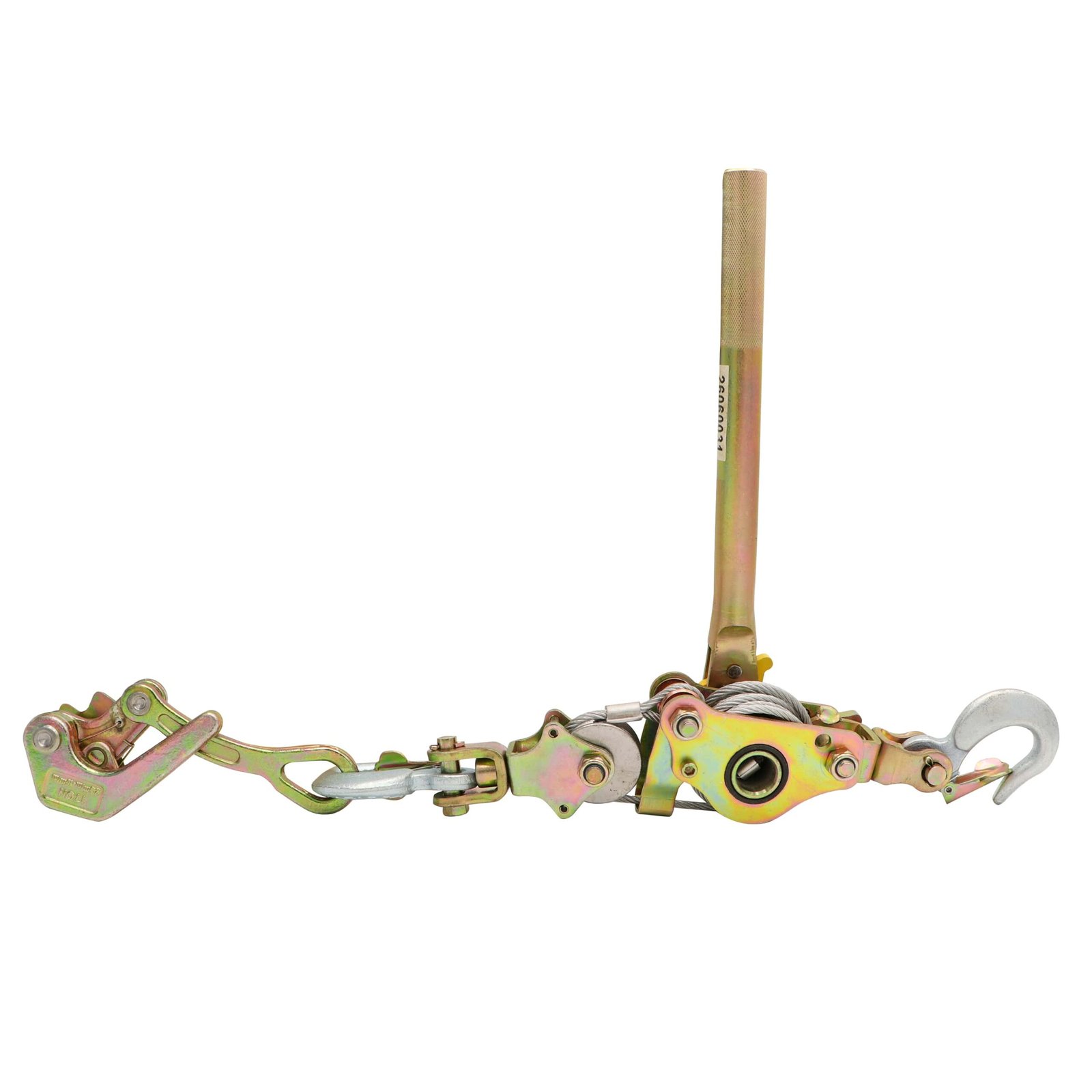

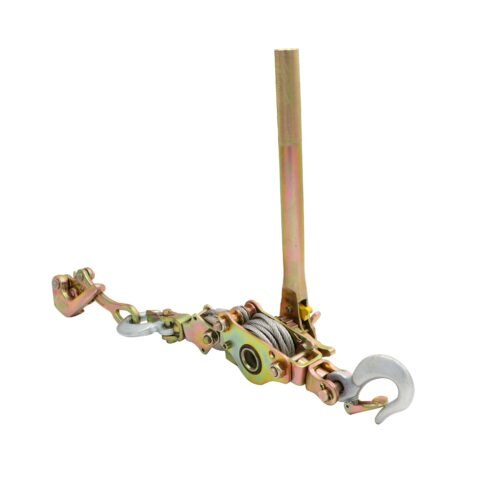

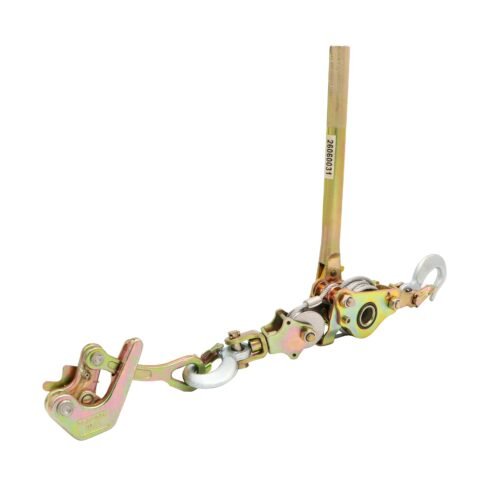

RATCHET PULLER WITH GRIP
| Capacity (t) |
Pull Length (mm) | Grip Size (kg) |
Wire Size (mm) |
|
|---|---|---|---|---|
| MIN | MAX | |||
| 1 | 410 | 1210 | 1000 | 4.5 x 2300 |
| 2 | 480 | 1400 | 2000 | 5.5 x 2300 |
| 3 | 480 | 1400 | 3000 | 6 x 2400 |
RATCHET PULLER
| Capacity (t) |
Pull Length (mm) | Wire Size (mm) |
|
|---|---|---|---|
| MIN | MAX | ||
| 1 | 410 | 1210 | 4.5 x 2300 |
| 2 | 480 | 1400 | 5.5 x 2300 |
| 3 | 480 | 1400 | 6 x 2400 |
RATCHET PULLER WITH GRIP
| Capacity (t) |
Pull Length (mm) | Grip Size (kg) |
Wire Size (mm) |
|
|---|---|---|---|---|
| MIN | MAX | |||
| 1 | 410 | 1210 | 1000 | 4.5 x 2300 |
| 2 | 480 | 1400 | 2000 | 5.5 x 2300 |
| 3 | 480 | 1400 | 3000 | 6 x 2400 |
