- Availability
- In Stock

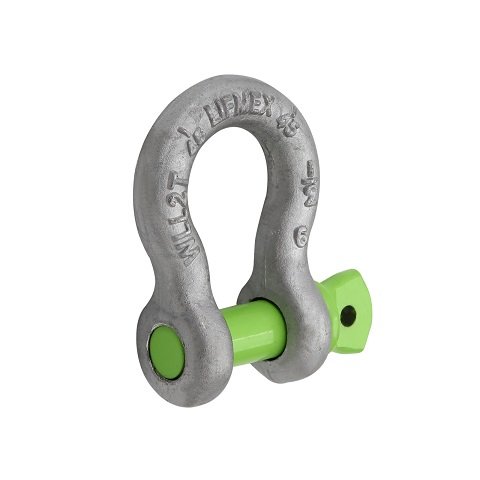

G209 US Type Forged Screw Pin Anchor Type
| Brand | |
| Capacity |
Brand
Lifmex
Capacity
1 TON TO 55 TON
About This Product
Technical Details
| Size (in) | WLL (t) | Dimensions (in) | Approx N.W. (kg/pc) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.14 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.29 |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 1.02 |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 1.53 |
| 1 | 81/2 | 1.69 | 1.13 | 3.75 | 2.41 |
| 11/8 | 91/2 | 1.81 | 1.25 | 4.25 | 3.09 |
| 11/4 | 12 | 2.03 | 1.38 | 4.69 | 4.31 |
| 13/8 | 131/2 | 2.25 | 1.5 | 5.25 | 6.01 |
| 11/2 | 17 | 2.38 | 1.63 | 5.75 | 7.80 |
| 13/4 | 25 | 2.88 | 2 | 78 | 13.78 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 20.41 |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 38.9 |
Functions:
- Lifting: The shackle can be used to connect lifting hooks, chains, or other rigging hardware to loads.
- Rigging: It serves as a crucial component in rigging setups, allowing for the attachment of various components to form a complete lifting system.
- Anchoring: The shackle can be used as an anchor point for securing loads or equipment.
- Lashing: It can be used for lashing and securing cargo during transportation.
Features:
- Construction: Drop forged from high-quality carbon steel, ensuring strength and durability.
- Screw Pin Type: The shackle features a screw pin, allowing for quick and easy attachment of various rigging hardware.
- Hot-Dip Galvanized: This coating provides excellent corrosion resistance, extending the shackle’s lifespan.
- Quenched and Tempered: This heat treatment process enhances the shackle’s strength and toughness.
- Alloy Pin: The screw pin is made from alloy steel for superior strength and resistance to wear and tear.
- Wide Body Design: The shackle’s body is designed to handle multi-directional loads, providing versatility in various lifting scenarios.
- Clear Markings: The shackle is clearly marked with its Working Load Limit (WLL), grade, and other relevant information.
Key Points:
- Safety Factor: The shackle is designed with a safety factor of 6, meaning it can withstand six times its Working Load Limit before failure.
- Versatility: The wide body design allows for multi-directional loading, making it suitable for various applications.
- Durability: The hot-dip galvanized coating and robust construction ensure long-lasting performance in harsh environments.
- Compliance: The G209 shackle meets or exceeds industry standards, ensuring safety and reliability.
| Size (in) | WLL (t) | Dimensions (in) | Approx N.W. (kg/pc) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.14 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.29 |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 1.02 |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 1.53 |
| 1 | 81/2 | 1.69 | 1.13 | 3.75 | 2.41 |
| 11/8 | 91/2 | 1.81 | 1.25 | 4.25 | 3.09 |
| 11/4 | 12 | 2.03 | 1.38 | 4.69 | 4.31 |
| 13/8 | 131/2 | 2.25 | 1.5 | 5.25 | 6.01 |
| 11/2 | 17 | 2.38 | 1.63 | 5.75 | 7.80 |
| 13/4 | 25 | 2.88 | 2 | 78 | 13.78 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 20.41 |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 38.9 |
