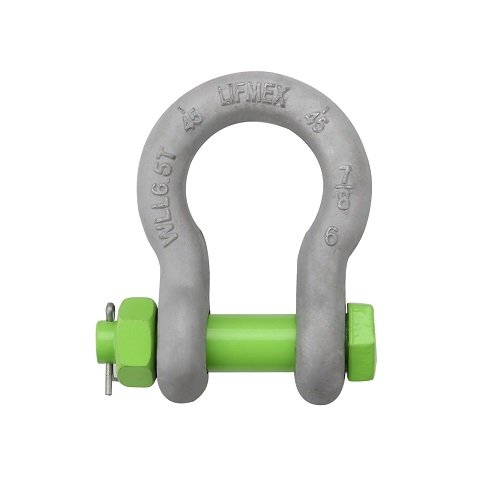

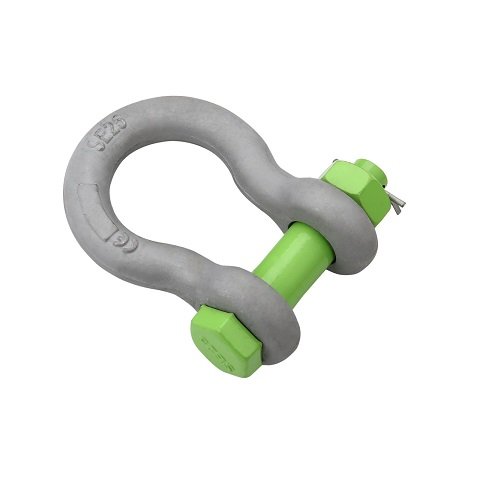

G2130 US TYPE FORGED BOLT TYPE SHACKLE

Brand
Capacity

Brand

Lifmex

Capacity

2 TON TO 150 TON

About This Product

The G2130 US TYPE FORGED BOLT TYPEis engineered for secure and long-term lifting and rigging applications. Its wide bow design allows for multiple sling connections, while the bolt and nut system ensures maximum safety and stability under heavy loads and dynamic conditions.

Min Order Quantity: 1

Technical Details

Size (in)	WLL (t)	Dimensions (in)			Approx N.W. (kg/pc)
Size (in)	WLL (t)	A	B	C	Approx N.W. (kg/pc)
1/2	2	0.81	0.63	1.88	0.36
5/8	3^1/4	1.06	0.75	2.38	0.76
3/4	4^3/4	1.25	0.88	2.81	1.23
7/8	6^1/2	1.44	1.00	3.31	1.79
1	8^1/2	1.69	1.13	3.75	2.78
1^1/8	9^1/2	1.81	1.25	4.25	3.75
1^1/4	12	2.03	1.38	4.69	5.31
1^3/8	13^1/2	2.25	1.50	5.25	7.18
1^1/2	17	2.38	1.63	5.75	9.43
1^3/4	25	2.88	2.00	7.00	15.38
2	35	3.25	2.25	7.75	23.70
2^1/2	55	4.13	2.75	10.5	44.57
3	85	5.00	3.25	13.5	69.85
3^1/2	120	5.25	3.75	14.5	120.20
4	150	5.50	4.25	14.63	153.32

Functions:

Lifting: The shackle can be used to connect lifting hooks, chains, or other rigging hardware to loads.
Rigging: It serves as a crucial component in rigging setups, allowing for the attachment of various components to form a complete lifting system.
Anchoring: The shackle can be used as an anchor point for securing loads or equipment.
Lashing: It can be used for lashing and securing cargo during transportation.

Features:

Construction: Drop forged from high-quality carbon steel, ensuring strength and durability.
Bolt Type: The shackle features a bolt and nut with a cotter pin for secure fastening.
Hot-Dip Galvanized: This coating provides excellent corrosion resistance, extending the shackle’s lifespan.
Quenched and Tempered: This heat treatment process enhances the shackle’s strength and toughness.
Alloy Pin: The pin is made from alloy steel for superior strength and resistance to wear and tear.
Wide Body Design: The shackle’s body is designed to handle multi-directional loads, providing versatility in various lifting scenarios.
Clear Markings: The shackle is clearly marked with its Working Load Limit (WLL), grade, and other relevant information.

Key Points:

Safety Factor: The shackle is designed with a safety factor of 6, meaning it can withstand six times its Working Load Limit before failure.
Versatility: The wide body design allows for multi-directional loading, making it suitable for various applications.
Durability: The hot-dip galvanized coating and robust construction ensure long-lasting performance in harsh environments.
Compliance: The G2130 shackle meets or exceeds industry standards, ensuring safety and reliability.
