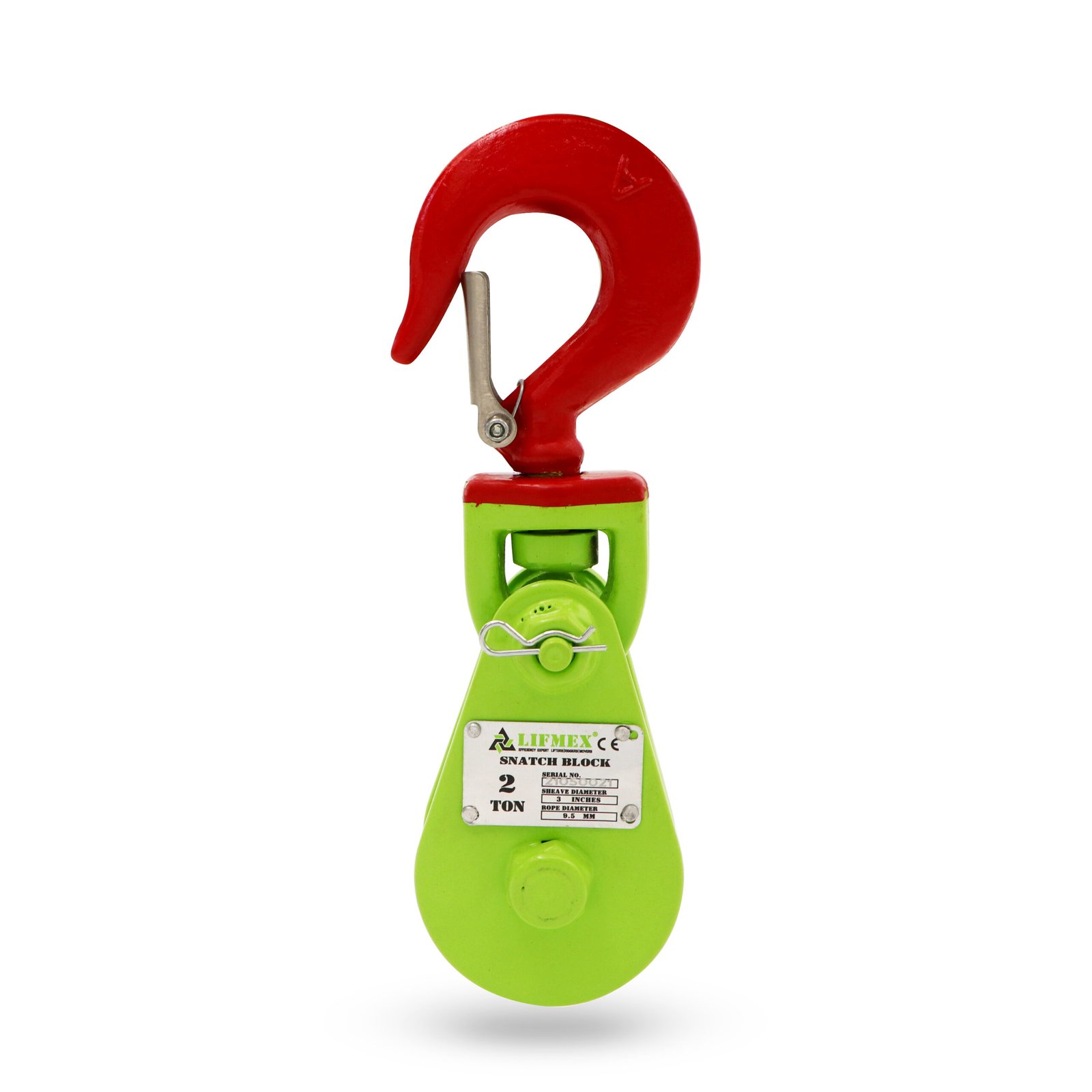

Snatch Block Hook Type

Brand
Capacity

Brand

Lifmex

Capacity

4 - 108 (kg/pc)

About This Product

  • A Snatch Block Hook Type is a mechanical device used to redirect the line of pull, making it easier to apply force in a desired direction.
  • It consists of a grooved wheel (sheave) mounted in a frame, with a hook for attachment.

Functions:

  • Changing Direction: Snatch blocks are primarily used to redirect the line of pull, making it easier to apply force in a desired direction.
  • Mechanical Advantage: By redirecting the line, a snatch block can effectively increase the mechanical advantage, allowing you to lift heavier loads with less effort.
  • Reducing Friction: The sheave within the snatch block reduces friction, making the pulling or lifting process more efficient.

Features:

  • Sheave: A grooved wheel that rotates freely, allowing the rope or cable to change direction smoothly.
  • Frame: A sturdy frame that houses the sheave and provides a secure mounting point.
  • Hook: A strong hook for attaching the snatch block to a fixed point or another piece of rigging equipment.
  • Material: Typically made from high-strength steel, ensuring durability and safety.
  • Working Load Limit (WLL): The maximum safe load that the snatch block can handle, clearly marked on the device.
  • Sheave Size and Groove Diameter: These factors influence the efficiency and capacity of the snatch block.
  • Swivel Hook: Allows for flexibility in positioning the snatch block and prevents rope twisting.

Common Applications:

  • Off-Road Recovery: Used to extract vehicles from mud, snow, or other difficult terrain.
  • Construction: Employed for lifting heavy loads, such as beams and structural components.
  • Tree Care: Used to tension cables and lift heavy branches.
  • Marine Applications: Utilized for mooring boats, pulling anchors, and other marine tasks.
  • Industrial Settings: Employed in various industrial applications, such as manufacturing and material handling.

Min Order Quantity: 1

Technical Details



Size (in) Safe Working Load (t) Sheave Diameter (mm) Rope Diameter (mm) Approx Weight (kg/pc)
3 x 1 2 75 7-9 4
4 ½ x 1 4 115 10-12 6.1
6 x 1 8 150 20-22 14.4
8 x 1 15 200 22-24 24
10 x 1 12 250 24-26 42
12 x 1 15 300 26-28 65
16 x 1 22 400 28-32 108
