- Availability
- In Stock

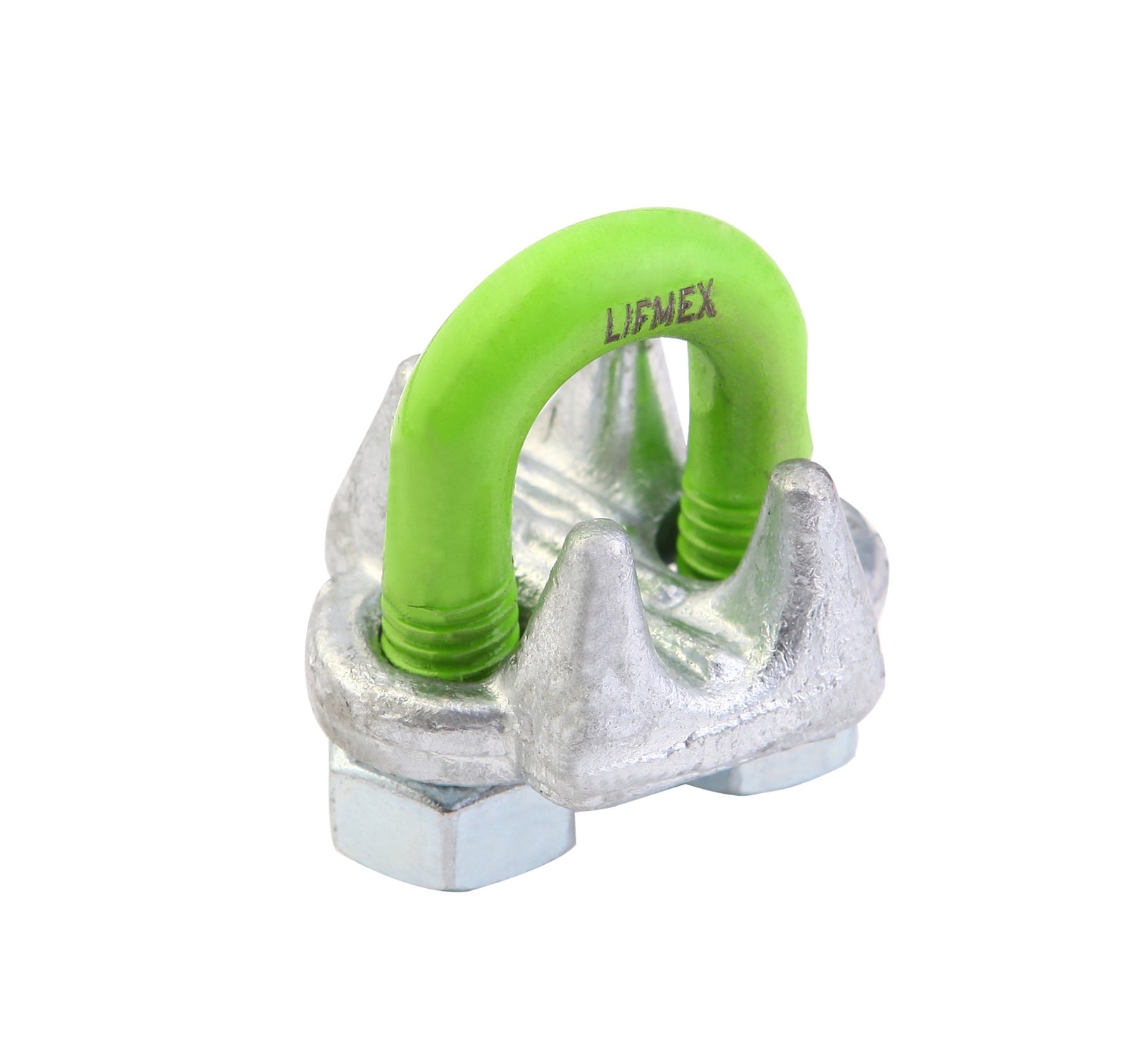

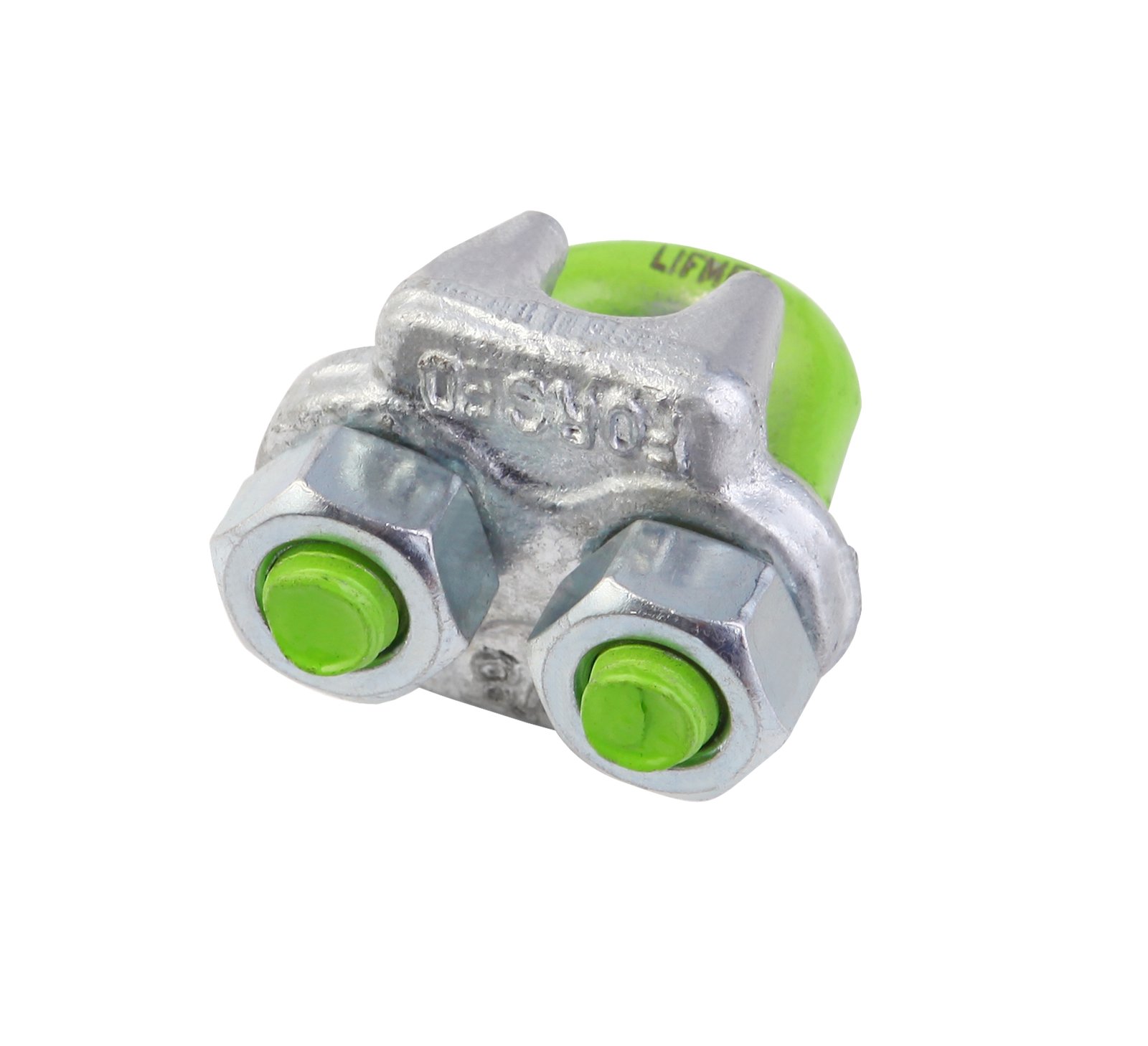

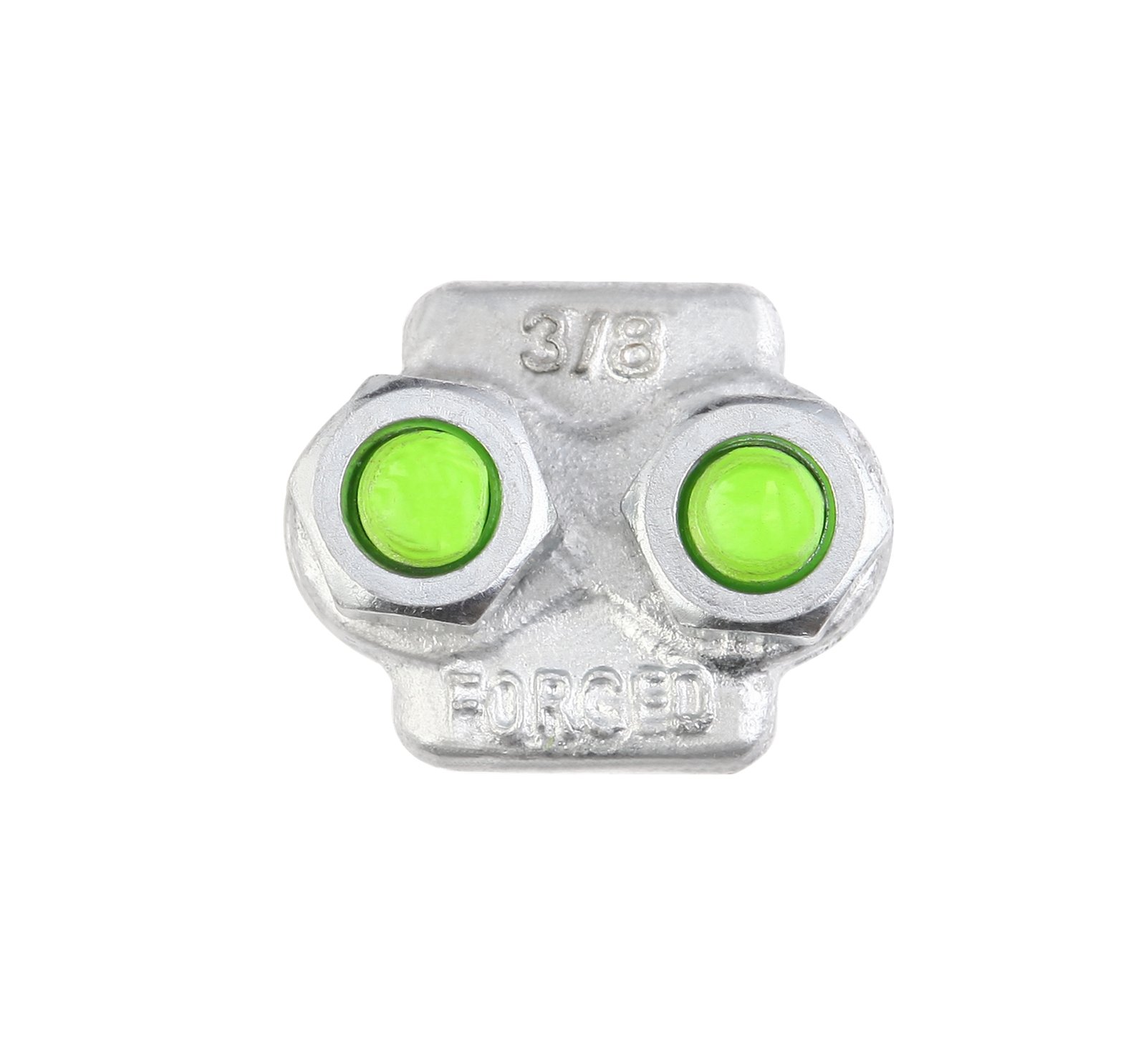

Jis Type Drop-forged Wire Rope Clip
| Brand | |
| Capacity |
Brand
Lifmex
Capacity
DIAMETER 6 MM TO 38 MM
About This Product
- A JIS Type Drop-Forged Wire Rope Clip is a type of mechanical fastener designed to secure the ends of wire ropes. It’s manufactured according to the Japanese Industrial Standard (JIS) and is known for its high quality and durability.
Technical Details
| Size (mm) | Dimensions (mm) | Approx N.W. (kg/pc) |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| B | C | E | G1 | M | H | L | S | ||
| 6 | 6 | 29 | 24 | 14 | 6 | 5 | 35 | 20 | 0.047 |
| 8 | 6 | 36 | 31 | 18 | 8 | 6.5 | 40 | 20 | 0.08 |
| 10 | 8 | 45 | 35 | 22 | 10 | 8 | 50 | 28 | 0.15 |
| 12 | 8 | 51 | 39 | 26 | 12 | 10 | 60 | 35 | 0.25 |
| 16 | 10 | 60 | 48 | 32 | 14 | 11 | 75 | 45 | 0.35 |
| 18 | 11 | 62 | 53 | 34 | 16 | 11 | 80 | 50 | 0.45 |
| 20 | 12 | 78 | 62 | 44 | 20 | 15 | 100 | 60 | 0.96 |
| 24–25 | 13 | 86 | 68 | 48 | 22 | 16 | 110 | 65 | 1.25 |
| 30–32 | 15 | 98 | 79 | 58 | 30 | 18 | 130 | 75 | 2.49 |
| 33–38 | 16 | 120 | 93 | 70 | 30 | 22 | 150 | 85 | 3.4 |
Functions:
- Preventing Fraying: The clips clamp the end of the wire rope, preventing it from unraveling and deteriorating.
- Securing Connections: They can be used to create secure connections between wire ropes or between a wire rope and other components.
- Ensuring Safety: By preventing rope failure, they contribute to the overall safety of lifting and rigging operations.
Key Features:
- Drop-Forged Construction: The clip is forged from high-quality steel, providing excellent strength and durability.
- JIS Standard: Manufactured to the JIS standard, ensuring consistent quality and performance.
- Secure Grip: The design of the clip provides a secure grip on the wire rope, preventing slippage and ensuring a reliable connection.
- Corrosion Resistance: Often galvanized or coated with other protective finishes to enhance corrosion resistance.
Common Applications:
- Construction: Used in various construction applications, including rigging, hoisting, and cable installations.
- Marine: Used in marine equipment, such as anchors, mooring lines, and rigging.
- Industrial: Used in various industrial applications, such as manufacturing, mining, and oil and gas.
| Size (mm) | Dimensions (mm) | Approx N.W. (kg/pc) |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| B | C | E | G1 | M | H | L | S | ||
| 6 | 6 | 29 | 24 | 14 | 6 | 5 | 35 | 20 | 0.047 |
| 8 | 6 | 36 | 31 | 18 | 8 | 6.5 | 40 | 20 | 0.08 |
| 10 | 8 | 45 | 35 | 22 | 10 | 8 | 50 | 28 | 0.15 |
| 12 | 8 | 51 | 39 | 26 | 12 | 10 | 60 | 35 | 0.25 |
| 16 | 10 | 60 | 48 | 32 | 14 | 11 | 75 | 45 | 0.35 |
| 18 | 11 | 62 | 53 | 34 | 16 | 11 | 80 | 50 | 0.45 |
| 20 | 12 | 78 | 62 | 44 | 20 | 15 | 100 | 60 | 0.96 |
| 24–25 | 13 | 86 | 68 | 48 | 22 | 16 | 110 | 65 | 1.25 |
| 30–32 | 15 | 98 | 79 | 58 | 30 | 18 | 130 | 75 | 2.49 |
| 33–38 | 16 | 120 | 93 | 70 | 30 | 22 | 150 | 85 | 3.4 |
