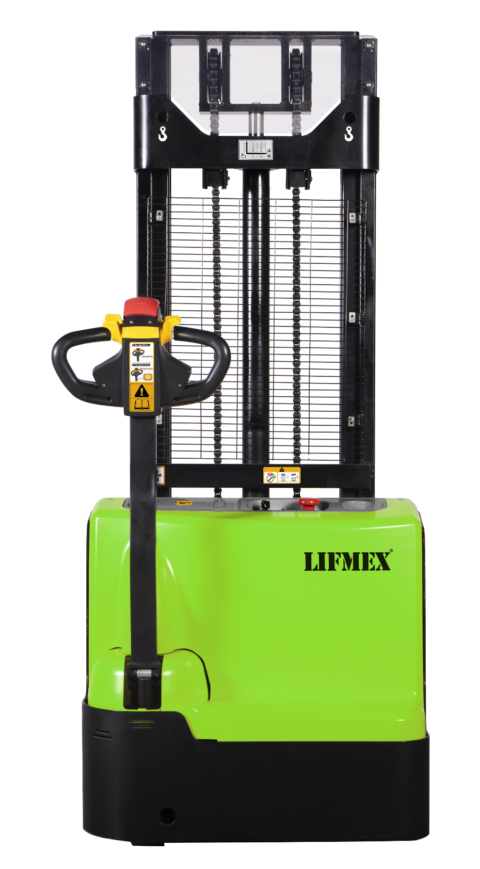

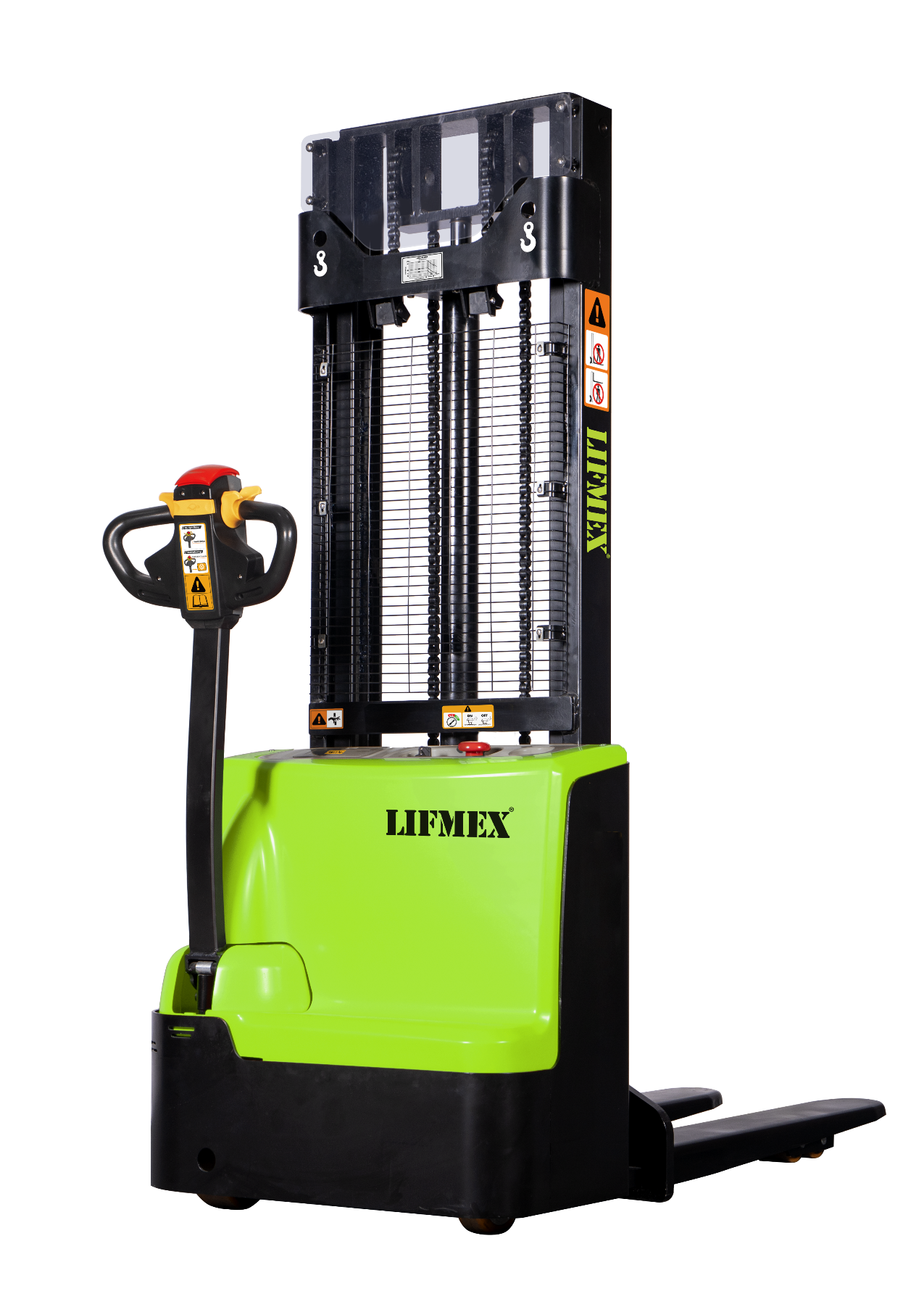

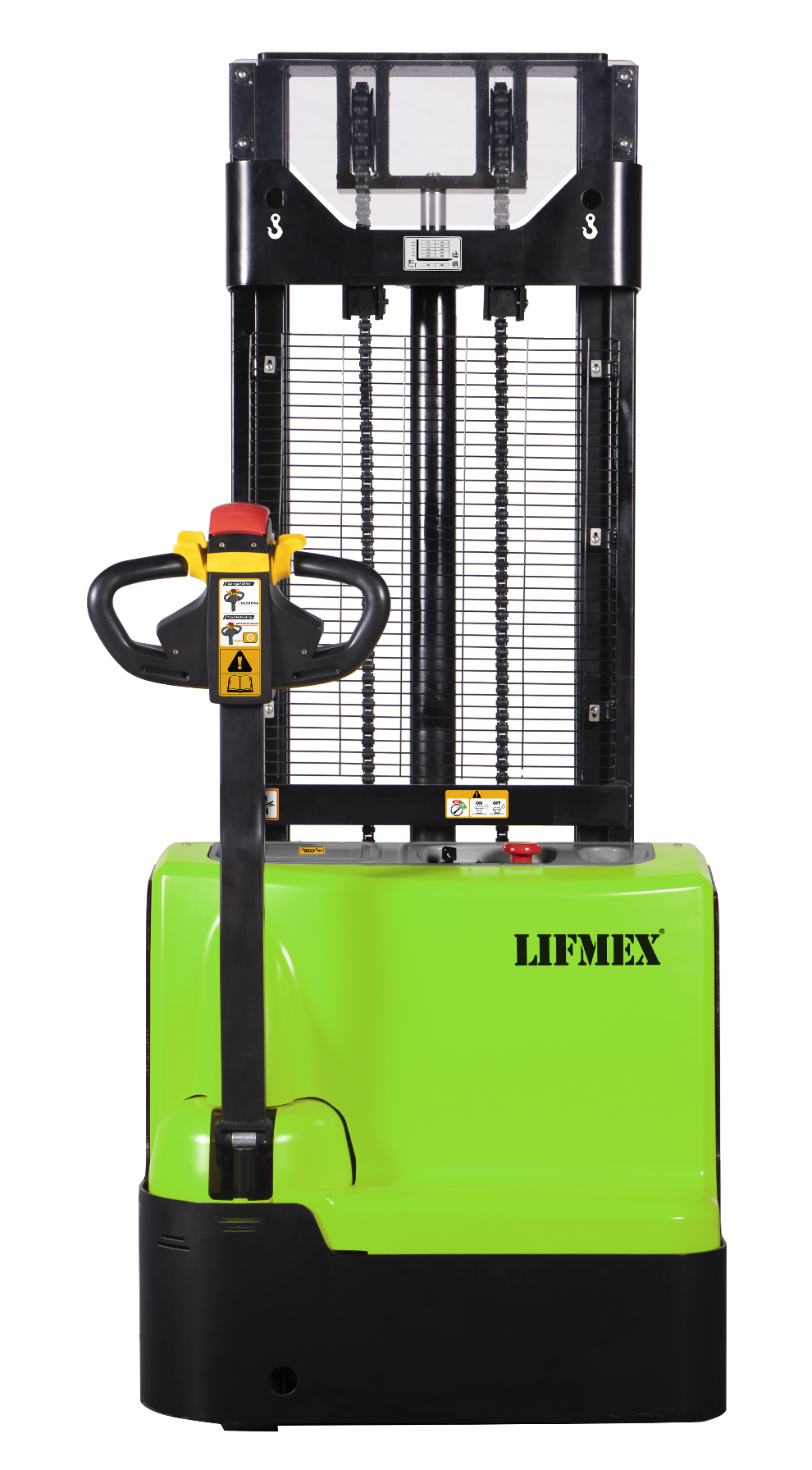

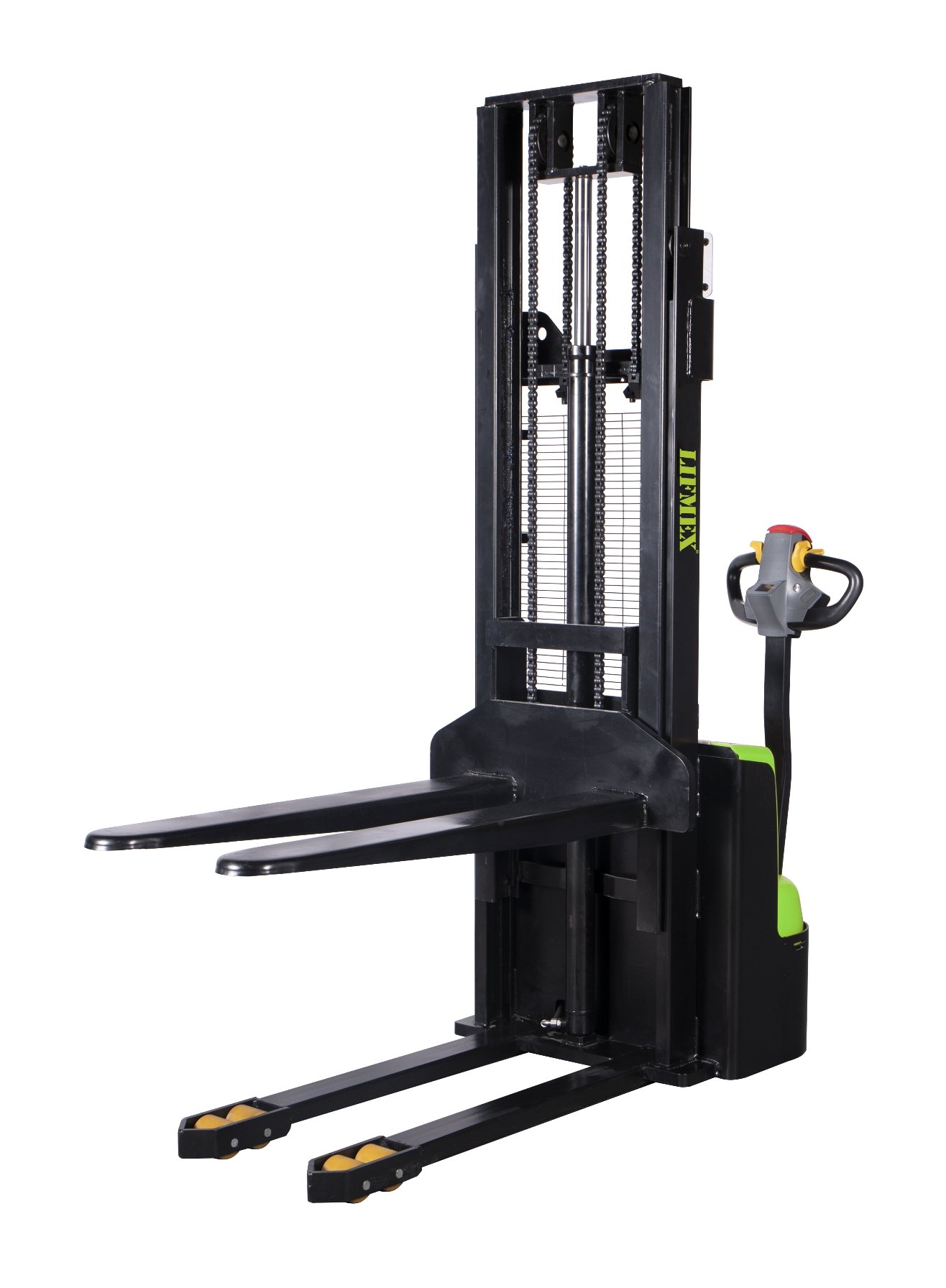

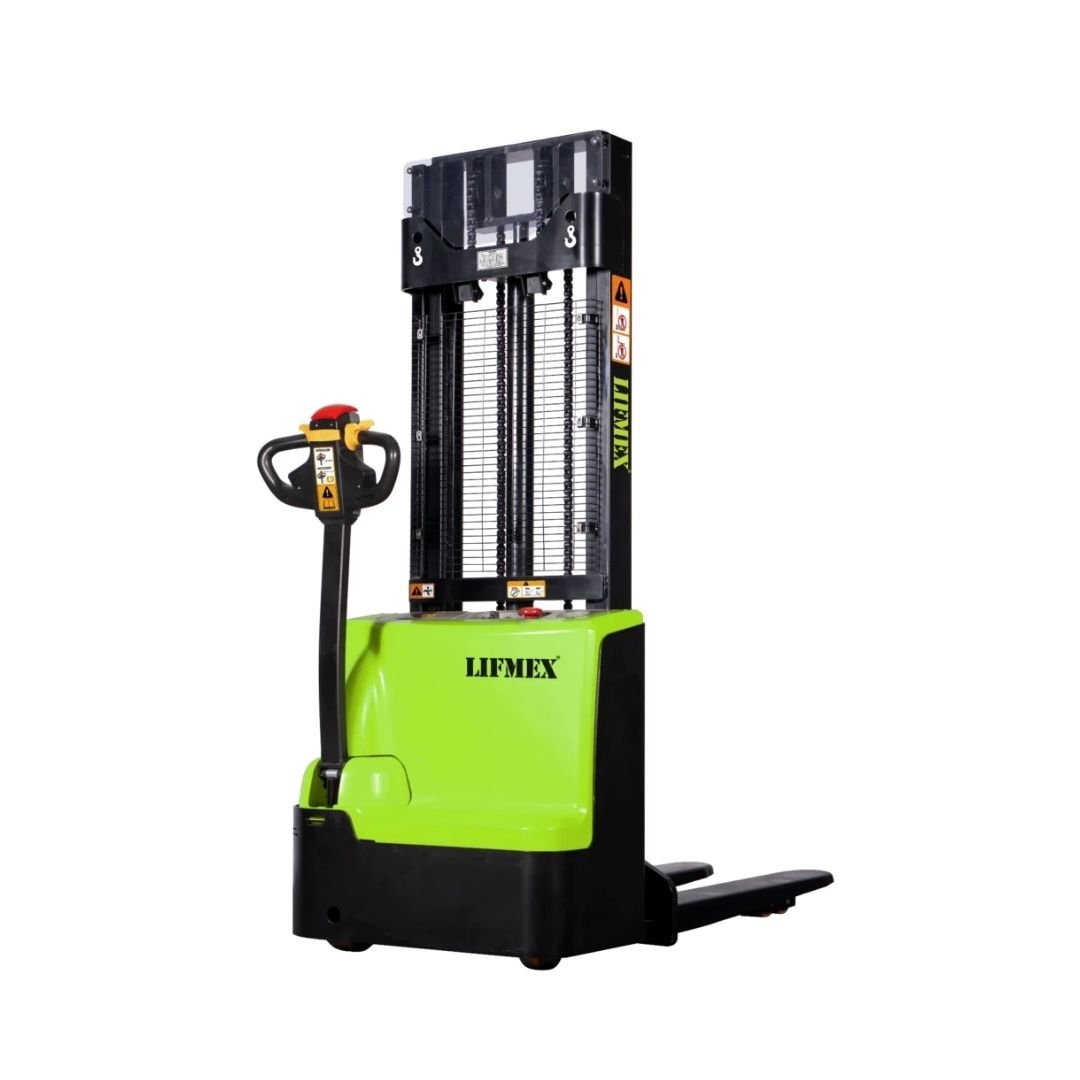

Electric Pedestrian Stacker

Brand
Capacity

Capacity

1500 KG LIFTING HEIGHT 3 MTR AND 3.5 MTR

About This Product

Electric Pallet Stackers are versatile pieces of equipment used in warehouses, factories, and distribution centers to lift, move, and stack pallets. They offer significant advantages over manual handling, especially when dealing with heavy loads or repetitive tasks.

Min Order Quantity: 1

Technical Details

Product Code LEPS 1530 1535
Drive Battery Powered
Operator Type Pedestrians
Load Capacity/ Rated Load (Q) kg 1500
Load Centre Distance (c) mm 600
Load Distance, Centre of drive axle to fork (x) mm 796
Wheelbase (y) mm 1204
Axle Loading, Laden Front/Rear kg 603/1409
Axle Loading, Unladen Front/Rear kg 384/129
Wheel Type Polyethylene
Tread, Front (b10) mm 550
Tread, Rear (b11) mm 390(560)/ 525(680)
Lowered Mast Height (h1) mm 1980 2230
Lift Height (h3) mm 3000 3500
Extended Mast Height (h4) mm 3435 3935
Height of tiller in driving position, Min/Max (h14) mm 692/1255
Height, Lowered (h13) mm 90
Overall Length (L1) mm 1710
Length to face of forks (L2) mm 561.5
Overall Width (b1) mm 820
Fork Dimensions (s/e/l) mm 70x160x1150
Width over Forks (b5) mm 560/ 680
Ground Clearance, Centre of Wheelbase (m2) mm 30
Turning Radius (Wa) mm 1490
Travel Speed, with/without load km/h 4/4.5
Lift Speed, with/without load m/s 0-85 / 0-130
Lowering Speed, with/without load m/s 27.8-137 / 22.5-167
Maximum Gradeability, with/without load % 5/15
Battery Voltage/Nominal Capacity K5 V/Ah 12/71×2  ■12/89 x 2
Approximate N.W. (Battery included) kg 575 597

Warehouse Operations: Loading and unloading trucks, stacking and retrieving pallets from racks, and moving goods within the warehouse.

Manufacturing Facilities: Transporting materials and finished products between workstations.

Distribution Centers: Preparing orders for shipment and loading pallets onto delivery vehicles.

Retail Stores: Receiving and stocking inventory.

Features:

Proportional Lifting & Lowering

The variable speed control ensures the stacker goes up and down smoothly, minimizing the mechanical shock and vibration, ensuring fragile loads are gently placed on racking or the floor and reducing the impact of noise and vibration on operators.

Lowering Buffering

Automatic lowering speed descent with soft buffering when the fork height is lowered to around 10cm from the ground, effectively protects the safety of the cargo, low noise and small vibration.

High Efficiency

The variable speed control brings accurate response for adjusting the lifting and lowering speed according to the actual situation so the operator can easily complete the task and improve the working efficiency.

Energy Saving

Compared to the traditional fixed lifting and lowering speed, variable speed can be adjusted according to the load and height by operator, reducing energy waste and improving energy utilization rate.

Longer Service Life

Variable speed control can reduce the mechanical impact and friction during lifting & lowering, reduce the wear and tear on the chassis, mast, bearings and enable a longer service.

Product Code LEPS 1530 1535
Drive Battery Powered
Operator Type Pedestrians
Load Capacity/ Rated Load (Q) kg 1500
Load Centre Distance (c) mm 600
Load Distance, Centre of drive axle to fork (x) mm 796
Wheelbase (y) mm 1204
Axle Loading, Laden Front/Rear kg 603/1409
Axle Loading, Unladen Front/Rear kg 384/129
Wheel Type Polyethylene
Tread, Front (b10) mm 550
Tread, Rear (b11) mm 390(560)/ 525(680)
Lowered Mast Height (h1) mm 1980 2230
Lift Height (h3) mm 3000 3500
Extended Mast Height (h4) mm 3435 3935
Height of tiller in driving position, Min/Max (h14) mm 692/1255
Height, Lowered (h13) mm 90
Overall Length (L1) mm 1710
Length to face of forks (L2) mm 561.5
Overall Width (b1) mm 820
Fork Dimensions (s/e/l) mm 70x160x1150
Width over Forks (b5) mm 560/ 680
Ground Clearance, Centre of Wheelbase (m2) mm 30
Turning Radius (Wa) mm 1490
Travel Speed, with/without load km/h 4/4.5
Lift Speed, with/without load m/s 0-85 / 0-130
Lowering Speed, with/without load m/s 27.8-137 / 22.5-167
Maximum Gradeability, with/without load % 5/15
Battery Voltage/Nominal Capacity K5 V/Ah 12/71×2  ■12/89 x 2
Approximate N.W. (Battery included) kg 575 597
