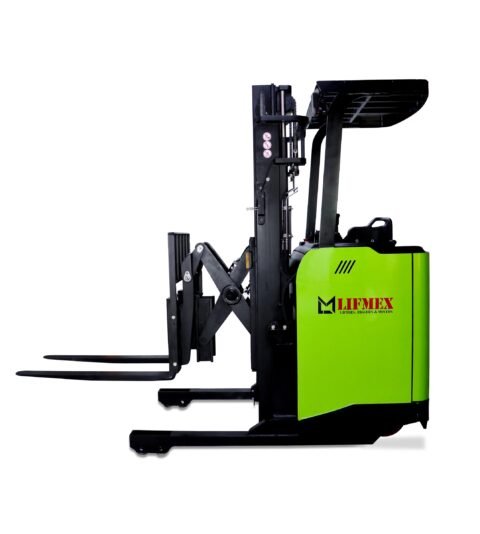

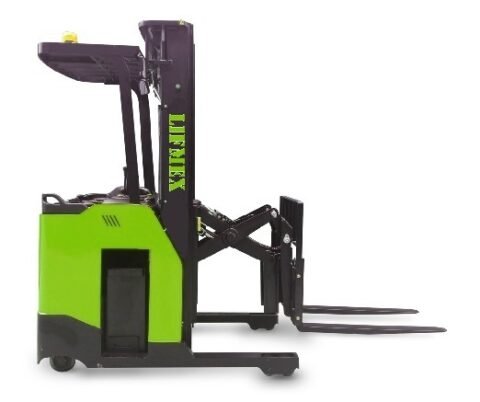

Scissor Reach Truck

Brand
Capacity

Capacity

1.5 TON AND LIFTING HEIGHT 3 MTR

About This Product

Best choice for narrow aisle and high shelf stacking condition. Standing operation which provides broader view. Electric Power Steering (EPS) control makes steering operation more efficient and comfortable. Duplex Mast with lifting height of 3mtrs.

Min Order Quantity: 1

Technical Details

TECHNICAL PARAMETERS
Product Code LERT1530
Drive Unit Battery
Load Capacity (Q) kg 1500
Load Center Distance (c) mm 600
Wheelbase (y) mm 1513
Tyre Type Polyurethane
Height, Mast lowered (h1) mm 2245
Lift Height (h3) mm 3000
Height, Mast extended (h4) mm 3960
Overall Length (l1) mm 2415
Overall Width (b1)(b2) mm 1078
Fork Dimensions (s/e/l) mm 40/100/1070
Turning Radius (Wa) mm 1785
Travel Speed, Laden/Unladen km/hr 8.5/9
Lifting Speed, Laden/Unladen m/s 0.26/0.39
Service Brake Type Electromagnetic
Steering Design Electronic
Drive Motor Rating S2 60 min kW 4
Lift Motor Rating at S3 15% kW 8.2
Battery Voltage/Nominal Capacity K5 V/Ah 48V/420Ah
Approximate Service Weight (Battery included) kg 2285

FEATURES:

  • Electronic Power Steering
  • 420Ah Battery Capacity
  • Front Light
  • Warning Light
  • Rearview Mirror
TECHNICAL PARAMETERS
Product Code LERT1530
Drive Unit Battery
Load Capacity (Q) kg 1500
Load Center Distance (c) mm 600
Wheelbase (y) mm 1513
Tyre Type Polyurethane
Height, Mast lowered (h1) mm 2245
Lift Height (h3) mm 3000
Height, Mast extended (h4) mm 3960
Overall Length (l1) mm 2415
Overall Width (b1)(b2) mm 1078
Fork Dimensions (s/e/l) mm 40/100/1070
Turning Radius (Wa) mm 1785
Travel Speed, Laden/Unladen km/hr 8.5/9
Lifting Speed, Laden/Unladen m/s 0.26/0.39
Service Brake Type Electromagnetic
Steering Design Electronic
Drive Motor Rating S2 60 min kW 4
Lift Motor Rating at S3 15% kW 8.2
Battery Voltage/Nominal Capacity K5 V/Ah 48V/420Ah
Approximate Service Weight (Battery included) kg 2285
