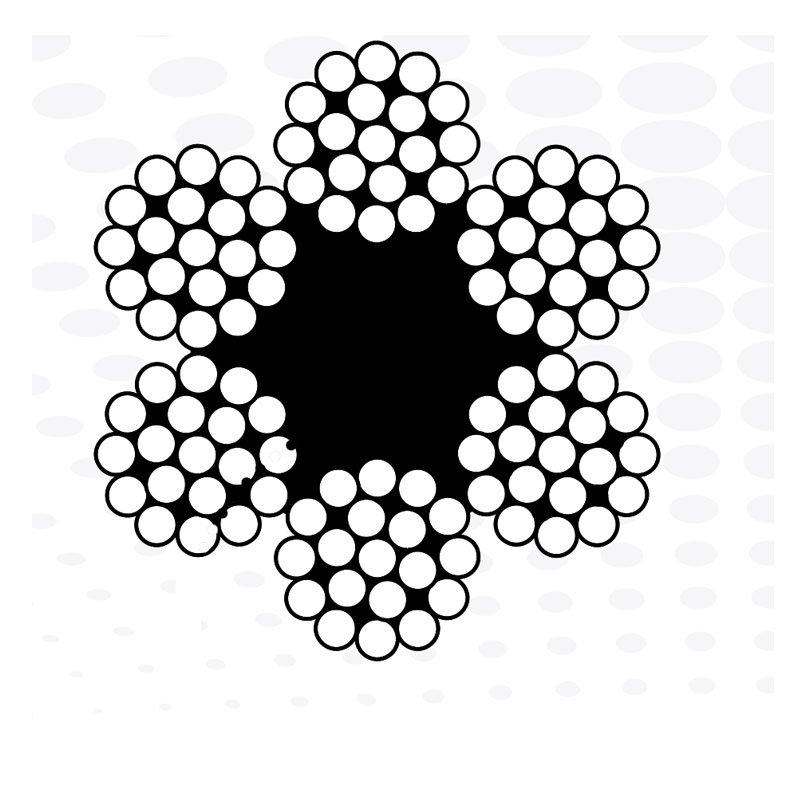

Steel Core Wire Rope

Brand
Capacity

Brand

Lifmex

About This Product

Galvanized vs. Ungalvanized Wire Rope

Wire Rope is a critical component in many industries, from construction and mining to marine and agriculture. Two common types are galvanized and ungalvanized wire ropes.

Galvanized Wire Rope

Galvanized Wire Rope is made by coating steel wire with a layer of zinc through a process called galvanization. This protective zinc coating significantly enhances the rope’s resistance to corrosion, making it ideal for outdoor and harsh environment applications.

Min Order Quantity: 1

Technical Details

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	18.8	21.2	13.7
8	33.4	37.6	24.4
10	52.1	58.8	38.1
12	75.1	84.6	54.9
14	102	115	74.7
16	133	150	97.5
18	169	190	123
20	208	235	152
22	252	284	184
24	300	338	219

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	18.8	21.2	13.7
8	33.4	37.6	24.4
10	52.1	58.8	38.1
12	75.1	84.6	54.9
14	102	115	74.7
16	133	150	97.5
18	169	190	123
20	208	235	152
22	252	284	184
24	300	338	219

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	20.1	22.6	15
8	35.8	40.3	26.8
10	55.9	63	41.8
12	80.5	90.7	60.2
13	94.5	106	70.6
16	143	161	107
18	181	204	135
22	271	305	202
24	322	363	241

Key Benefits of Galvanized Wire Rope:

Corrosion Resistance: The zinc coating acts as a barrier, preventing rust and oxidation, especially in humid or marine environments.
Durability: Galvanized wire ropes are known for their exceptional strength and durability, capable of withstanding heavy loads and harsh conditions.
Flexibility: They offer flexibility, allowing for easy bending and maneuvering, making them suitable for various applications.

Ungalvanized Wire Rope

Ungalvanized Wire Rope, also known as bright wire rope, is made from bare steel wire without any protective coating. While it may offer higher tensile strength compared to galvanized wire rope, it is more susceptible to corrosion, especially in humid environments.

Key considerations for Ungalvanized Wire Rope:

- Corrosion: Ungalvanized wire rope is more prone to rust and corrosion, especially in outdoor or damp environments.
- Maintenance: Regular inspection and lubrication are crucial to maintain the rope’s integrity and prevent premature failure.

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	18.8	21.2	13.7
8	33.4	37.6	24.4
10	52.1	58.8	38.1
12	75.1	84.6	54.9
14	102	115	74.7
16	133	150	97.5
18	169	190	123
20	208	235	152
22	252	284	184
24	300	338	219

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	18.8	21.2	13.7
8	33.4	37.6	24.4
10	52.1	58.8	38.1
12	75.1	84.6	54.9
14	102	115	74.7
16	133	150	97.5
18	169	190	123
20	208	235	152
22	252	284	184
24	300	338	219

Nominal Diameter (mm)	Minimum Breaking Strength (kN) Nominal Tensile Strength (N/mm²)		Approx N.W. (kg/100mtr)
Nominal Diameter (mm)	1570 N/mm²	1770 N/mm²	Approx N.W. (kg/100mtr)
6	20.1	22.6	15
8	35.8	40.3	26.8
10	55.9	63	41.8
12	80.5	90.7	60.2
13	94.5	106	70.6
16	143	161	107
18	181	204	135
22	271	305	202
24	322	363	241
