DIN3093 Aluminium Sleeve Ferrule

Brand
Capacity

Brand

Lifmex

About This Product

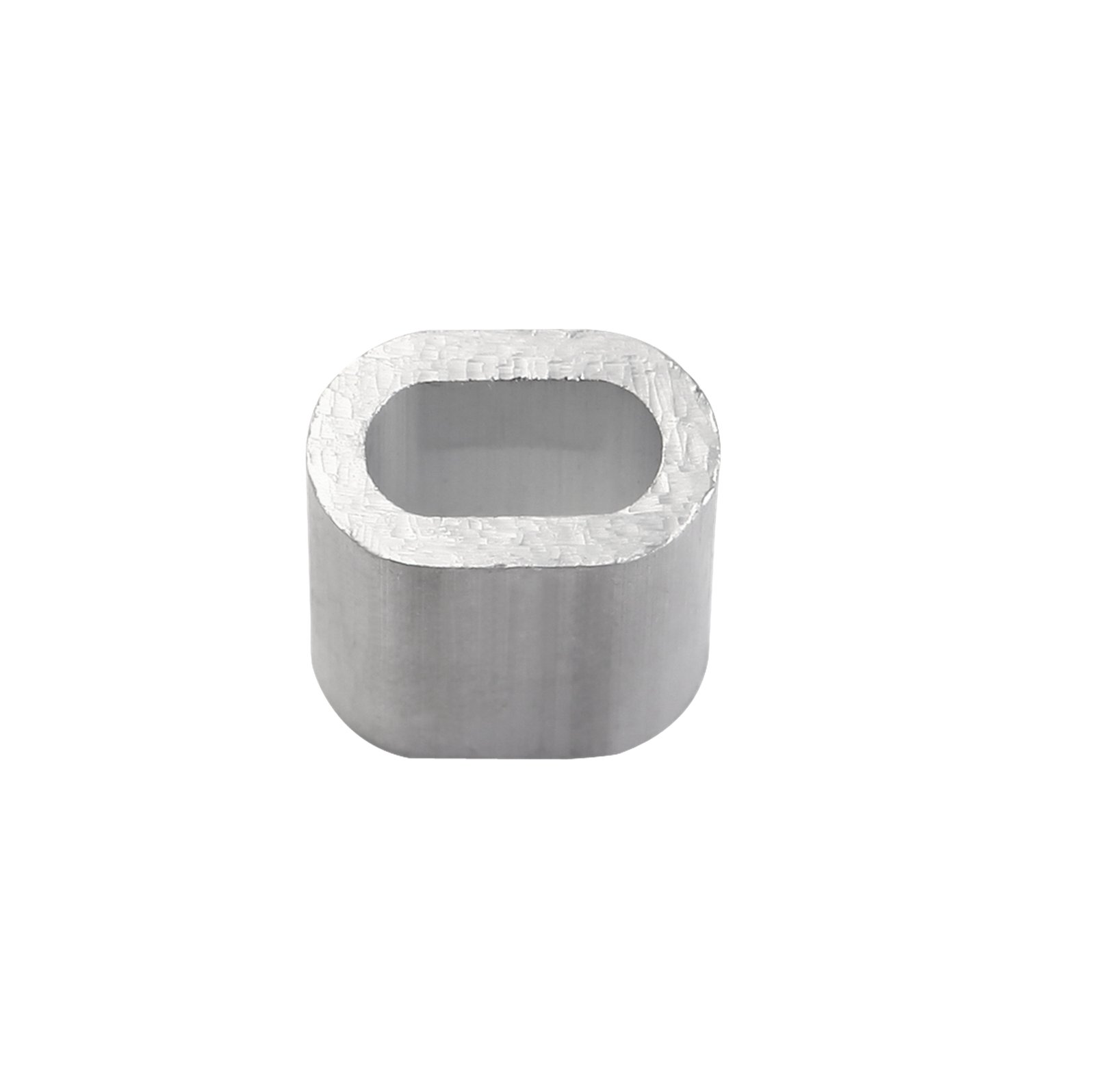

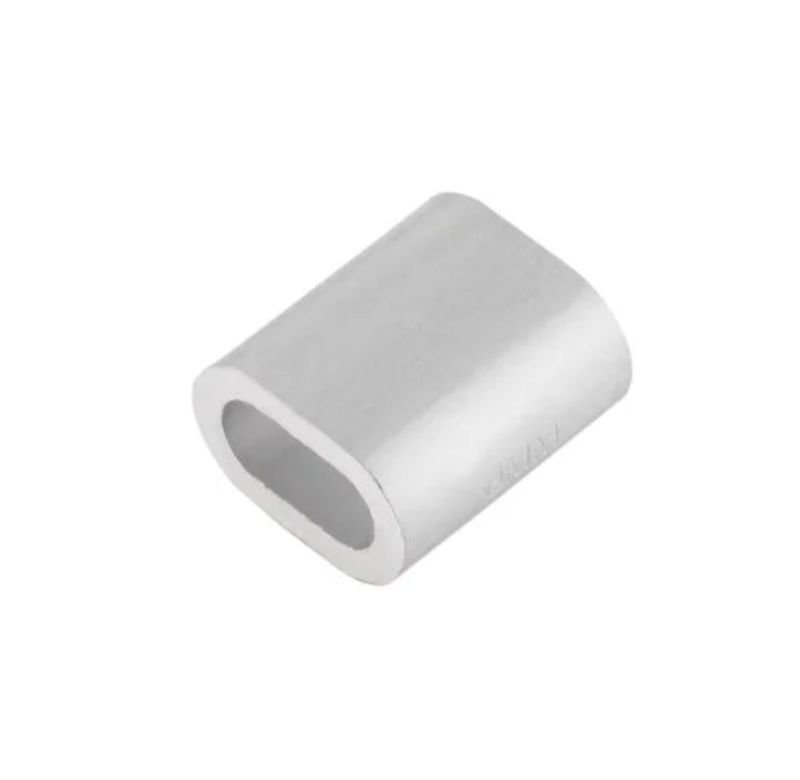

DIN 3093 Aluminum Sleeves, also known as aluminum ferrules, are essential components used in wire rope assemblies to secure fittings and prevent rope fraying.
They are manufactured to the DIN 3093 standard, ensuring consistency and quality.

Min Order Quantity: 1

Technical Details

Rope Diameter (mm)	Dimensions (mm)				Standard Length (mm)	Approx N.W. (g/pc)
Rope Diameter (mm)	A	B	C	D	Standard Length (mm)	Approx N.W. (g/pc)
6	12	18	6.6	13	21	5.86
8	15	24	8.8	18	28	13.7
9	17	27	9.9	20	32	19.8
10	19	30	11	22	35	26.4
11	21	33	12	24	39	35.8
12	23	36	13	26	42	45.8
13	25	39	14	28	46	59.7
14	26	42	15	31	49	73.5
16	31	48	18	35	56	111
18	35	54	20	39	63	159
20	39	60	22	43	70	217
22	43	67	24	49	77	292
24	46	73	26	53	84	376
26	50	79	29	57	91	481
30	58	91	33	66	105	735

Functions:

Secure Fittings: Holds fittings such as thimbles, hooks, or swivels securely in place, preventing them from slipping or pulling out of the wire rope.
Prevent Fraying: Protects the end of the wire rope from fraying and damage, extending its lifespan.
Enhance Safety: By ensuring a secure connection between the wire rope and the fittings, it contributes to overall safety during lifting and rigging operations.

Key Features:

Material: Made from high-quality aluminum, offering a good balance of strength and weight.
Standard: Manufactured according to the DIN 3093 standard, ensuring compliance with industry standards.
Size Range: Available in a wide range of sizes to accommodate various wire rope diameters.
Easy Installation: Designed for easy crimping onto the wire rope using specialized tools.
Corrosion Resistance: Provides protection against corrosion, especially in outdoor and marine environments.

Common Applications:

Construction: Used in various construction applications, including rigging, hoisting, and cable installations.
Marine: Used in marine equipment, such as anchors, mooring lines, and rigging.
Industrial: Used in various industrial applications, such as manufacturing, mining, and oil and gas.

Rope Diameter (mm)	Dimensions (mm)				Standard Length (mm)	Approx N.W. (g/pc)
Rope Diameter (mm)	A	B	C	D	Standard Length (mm)	Approx N.W. (g/pc)
6	12	18	6.6	13	21	5.86
8	15	24	8.8	18	28	13.7
9	17	27	9.9	20	32	19.8
10	19	30	11	22	35	26.4
11	21	33	12	24	39	35.8
12	23	36	13	26	42	45.8
13	25	39	14	28	46	59.7
14	26	42	15	31	49	73.5
16	31	48	18	35	56	111
18	35	54	20	39	63	159
20	39	60	22	43	70	217
22	43	67	24	49	77	292
24	46	73	26	53	84	376
26	50	79	29	57	91	481
30	58	91	33	66	105	735
