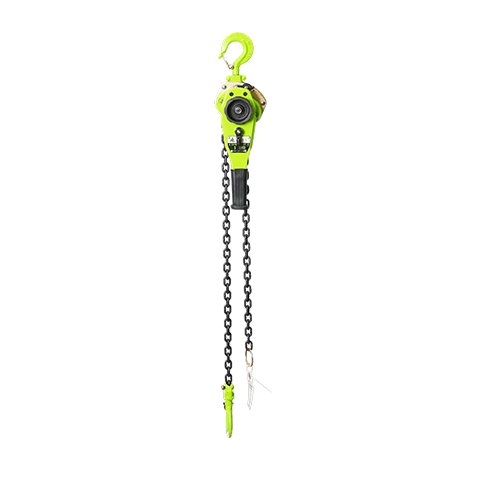

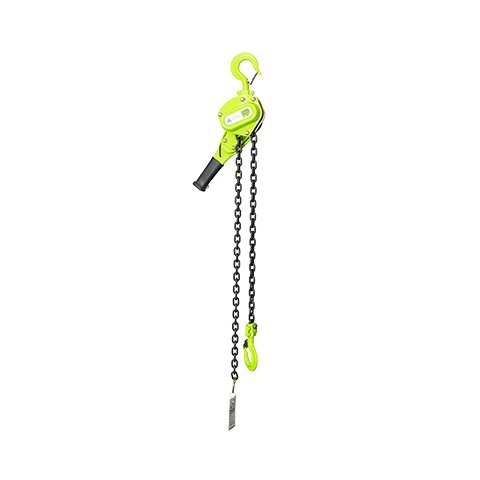

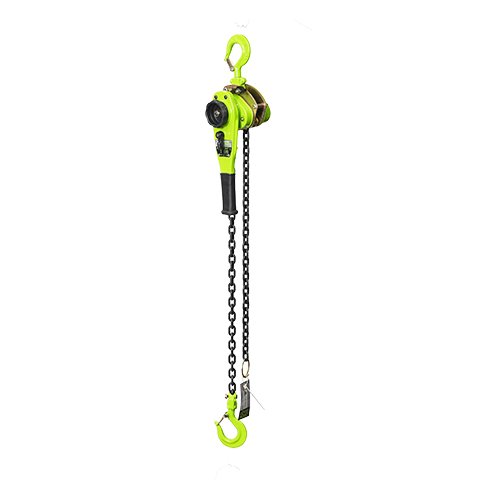

Lifmex Lever Hoist

Brand	LIFMEX
Brand Origin	UK
Capacity
Color	Green
Product Dimensions
Min Order Quantity	1

Brand

Lifmex

0.5 TON TO 9 TON

About This Product

Compact. Versatile. Heavy-duty Manual Lifting.

360° Operation – Works in any position (horizontal, vertical, diagonal).
Precision Control – Micro-adjustment capability for perfect load positioning.
Compact & Portable – Lightweight design for easy transport and use in tight spaces.
No Power Needed – Ideal for remote sites or power-outage situations.
Safety Guaranteed – Meets ISO 9001, CE, and OSHA standards.

Min Order Quantity: 1

Technical Details

Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort required to lift Max Load (n)	Load Chain (mm)		Dimensions (mm)						Approx N.W. (kg/pc)
Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort required to lift Max Load (n)	No. of Falls	Diameter	A	B	C	D	L	H	Approx N.W. (kg/pc)
0.5	1.5	0.75	330	1	5	102	80	95	–	–	–	3.5
0.75	1.5	1.125	230	1	6.3	150	55	128	32	25	303	6.3
1	1.5	1.5	250	1	6.3	150	55	128	32	26	303	7
1.5	1.5	2.25	295	1	7.1	165	64	149	36	36	365	11
2	1.5	3	315	1	7.1	195	64	149	36	36	365	11
3	1.5	4.5	414	1	9	195	85	182	46	36	48	19.5
6	1.5	9	430	2	9	195	85	246	50	60	70	27.5
9	1.5	13.5	430	3	9	195	85	335	57	60	70	47

Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort required to lift Max Load (n)	Load Chain (mm)		Dimensions (mm)						Approx N.W. (kg/pc)
Capacity (t)	Standard Lift (m)	Running Test Load (t)	Effort required to lift Max Load (n)	No. of Falls	Diameter	A	B	C	D	L	H	Approx N.W. (kg/pc)
0.5	1.5	0.75	330	1	5	102	80	95	–	–	–	3.5
0.75	1.5	1.125	230	1	6.3	150	55	128	32	25	303	6.3
1	1.5	1.5	250	1	6.3	150	55	128	32	26	303	7
1.5	1.5	2.25	295	1	7.1	165	64	149	36	36	365	11
2	1.5	3	315	1	7.1	195	64	149	36	36	365	11
3	1.5	4.5	414	1	9	195	85	182	46	36	48	19.5
6	1.5	9	430	2	9	195	85	246	50	60	70	27.5
9	1.5	13.5	430	3	9	195	85	335	57	60	70	47
