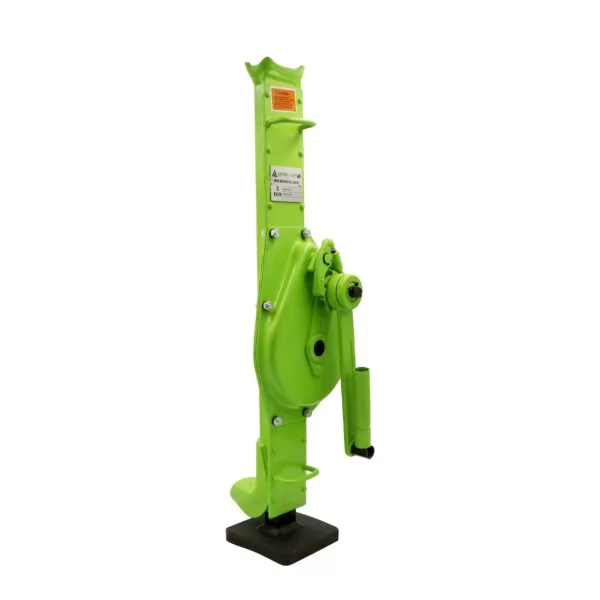

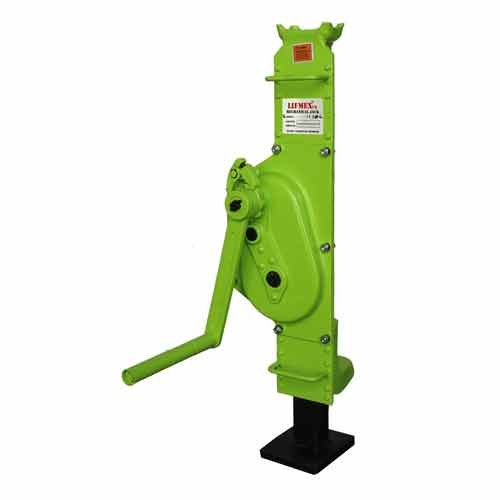

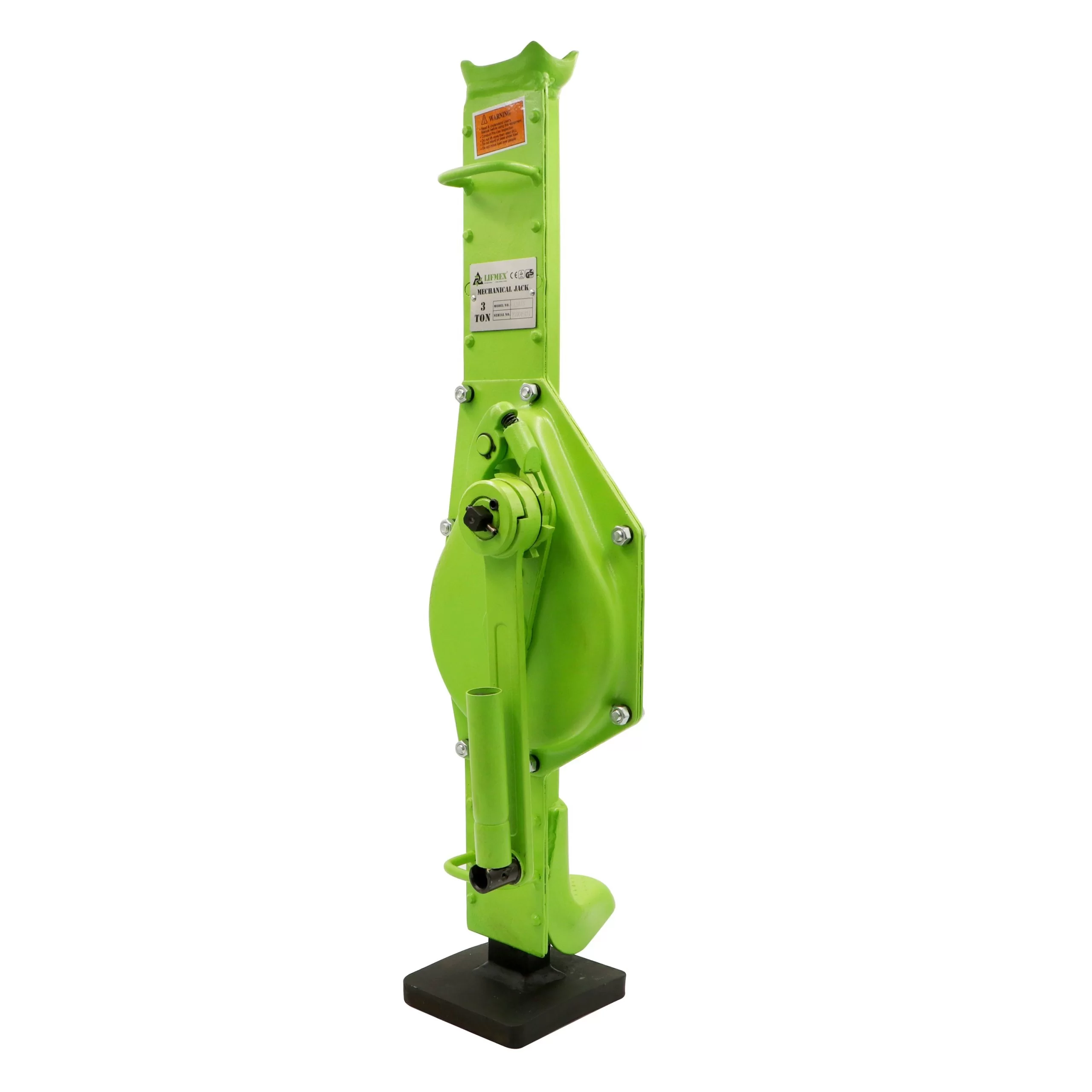

Lifmex Mechanical Jack
| Brand | LIFMEX |
| Brand Origin | UK |
| Capacity | 1.5-20 Ton |
| Color | Green |
| Product Dimensions | |
| Min Order Quantity | 1 |
Brand
Lifmex
Capacity
1.5-20 Ton
About This Product
The Lifmex Mechanical Jack, with a capacity range of 1.5 to 20 tons, is designed for heavy-duty lifting applications. It features a double pawl brake system for enhanced safety and reliability. The jack offers smooth transmission with low gearing tolerance, ensuring minimal jerks during operation.
Technical Details
| MECHANICAL JACK | |||||
|---|---|---|---|---|---|
| MODEL | RATED CAPACITY (T) |
TEST LOAD (kN) |
GROUND CLEARANCE (MM) | NET WEIGHT (KG) |
|
| MIN | MAX | ||||
| LMJ1.5 | 1.5 | 22 | 60 | 360 | 14 |
| LMJ3 | 3 | 44.1 | 70 | 425 | 20 |
| LMJ5 | 5 | 73.5 | 80 | 425 | 28 |
| LMJ10 | 10 | 147 | 100 | 490 | 46 |
| LMJ16 | 16 | 196 | 100 | 490 | 65 |
| LMJ20 | 20 | 220 | 115 | 425 | 72 |
It requires less than 25 kg of turning force to lift its full rated capacity, making it highly efficient. The jack is constructed from ableforge steel, adhering to the latest safety standards (DIN 7355). It is commonly used in the automotive industry for lifting vehicles and other heavy loads. The compact design allows for easy handling and storage.
- These jacks are commonly seen in the automotive industry for lifting vehicles and other loads
- Double pawl brake system, safe and reliable
- Low gearing tolerance-smooth transmission, free of jerks
- High efficiency and minimum turning force less than 25kgs is required to lift full load of all rated capacity
- The ableforge steel hack is designed and developed for heavy industrial lifting applications, strictly in accordance with the latest safety standard DIN 7355.
| MECHANICAL JACK | |||||
|---|---|---|---|---|---|
| MODEL | RATED CAPACITY (T) |
TEST LOAD (kN) |
GROUND CLEARANCE (MM) | NET WEIGHT (KG) |
|
| MIN | MAX | ||||
| LMJ1.5 | 1.5 | 22 | 60 | 360 | 14 |
| LMJ3 | 3 | 44.1 | 70 | 425 | 20 |
| LMJ5 | 5 | 73.5 | 80 | 425 | 28 |
| LMJ10 | 10 | 147 | 100 | 490 | 46 |
| LMJ16 | 16 | 196 | 100 | 490 | 65 |
| LMJ20 | 20 | 220 | 115 | 425 | 72 |
