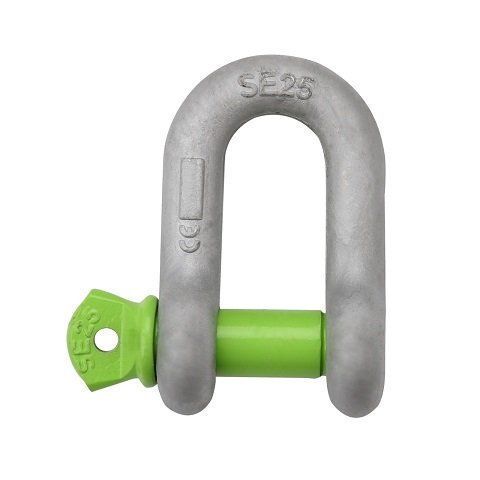

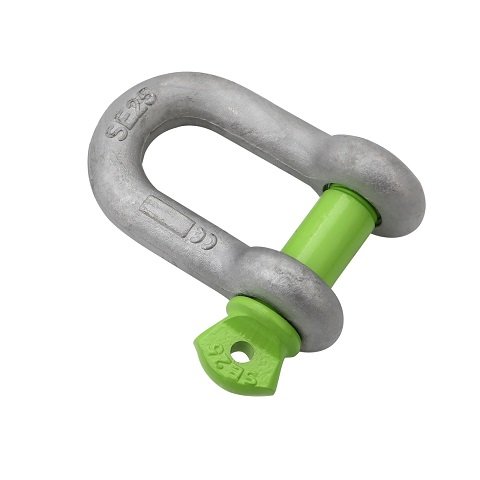

G210 US Type Forged Screw Pin Chain Type
| Brand | |
| Capacity |
Brand
Lifmex
Capacity
1 TON TO 55 TON
About This Product
TheG210 US Type Forged Screw Pin Chain Typeis a reliable and durable connection solution for lifting, rigging, and load securing applications. The screw pin allows for quick and secure fastening, making it ideal for temporary or adjustable connections.
Technical Details
| Size (in) | WLL (t) | Dimensions (in) | Approx N.W. (kg/pc) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 3/8 | 1 | 0.66 | 0.44 | 1.28 | 0.13 |
| 1/2 | 2 | 0.81 | 0.63 | 1.66 | 0.27 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.04 | 0.57 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.40 | 1.19 |
| 7/8 | 6 1/2 | 1.44 | 1.00 | 2.86 | 1.43 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.24 | 2.15 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 3.61 | 3.06 |
| 1 1/4 | 12 | 2.03 | 1.38 | 3.97 | 4.11 |
| 1 1/2 | 17 | 2.38 | 1.63 | 4.84 | 7.23 |
| 1 3/4 | 25 | 2.88 | 2.00 | 5.78 | 12.13 |
| 2 | 35 | 3.25 | 2.25 | 6.77 | 19.19 |
| 2 1/2 | 55 | 4.13 | 2.75 | 8.07 | 32.27 |
Functions:
- Lifting: The shackle can be used to connect lifting hooks, chains, or other rigging hardware to loads.
- Rigging: It serves as a crucial component in rigging setups, allowing for the attachment of various components to form a complete lifting system.
- Anchoring: The shackle can be used as an anchor point for securing loads or equipment.
- Lashing: It can be used for lashing and securing cargo during transportation.
Features:
- Construction: Drop forged from high-quality carbon steel, ensuring strength and durability.
- Screw Pin Type: The shackle features a screw pin, allowing for quick and easy attachment of various rigging hardware.
- Hot-Dip Galvanized: This coating provides excellent corrosion resistance, extending the shackle’s lifespan.
- Quenched and Tempered: This heat treatment process enhances the shackle’s strength and toughness.
- Alloy Pin: The screw pin is made from alloy steel for superior strength and resistance to wear and tear.
- Wide Body Design: The shackle’s body is designed to handle multi-directional loads, providing versatility in various lifting scenarios.
- Clear Markings: The shackle is clearly marked with its Working Load Limit (WLL), grade, and other relevant information.
Key Points:
- Safety Factor: The shackle is designed with a safety factor of 6, meaning it can withstand six times its Working Load Limit before failure.
- Versatility: The wide body design allows for multi-directional loading, making it suitable for various applications.
- Durability: The hot-dip galvanized coating and robust construction ensure long-lasting performance in harsh environments.
- Compliance: The G210 shackle meets or exceeds industry standards, ensuring safety and reliability.
| Size (in) | WLL (t) | Dimensions (in) | Approx N.W. (kg/pc) | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 3/8 | 1 | 0.66 | 0.44 | 1.28 | 0.13 |
| 1/2 | 2 | 0.81 | 0.63 | 1.66 | 0.27 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.04 | 0.57 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.40 | 1.19 |
| 7/8 | 6 1/2 | 1.44 | 1.00 | 2.86 | 1.43 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.24 | 2.15 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 3.61 | 3.06 |
| 1 1/4 | 12 | 2.03 | 1.38 | 3.97 | 4.11 |
| 1 1/2 | 17 | 2.38 | 1.63 | 4.84 | 7.23 |
| 1 3/4 | 25 | 2.88 | 2.00 | 5.78 | 12.13 |
| 2 | 35 | 3.25 | 2.25 | 6.77 | 19.19 |
| 2 1/2 | 55 | 4.13 | 2.75 | 8.07 | 32.27 |
