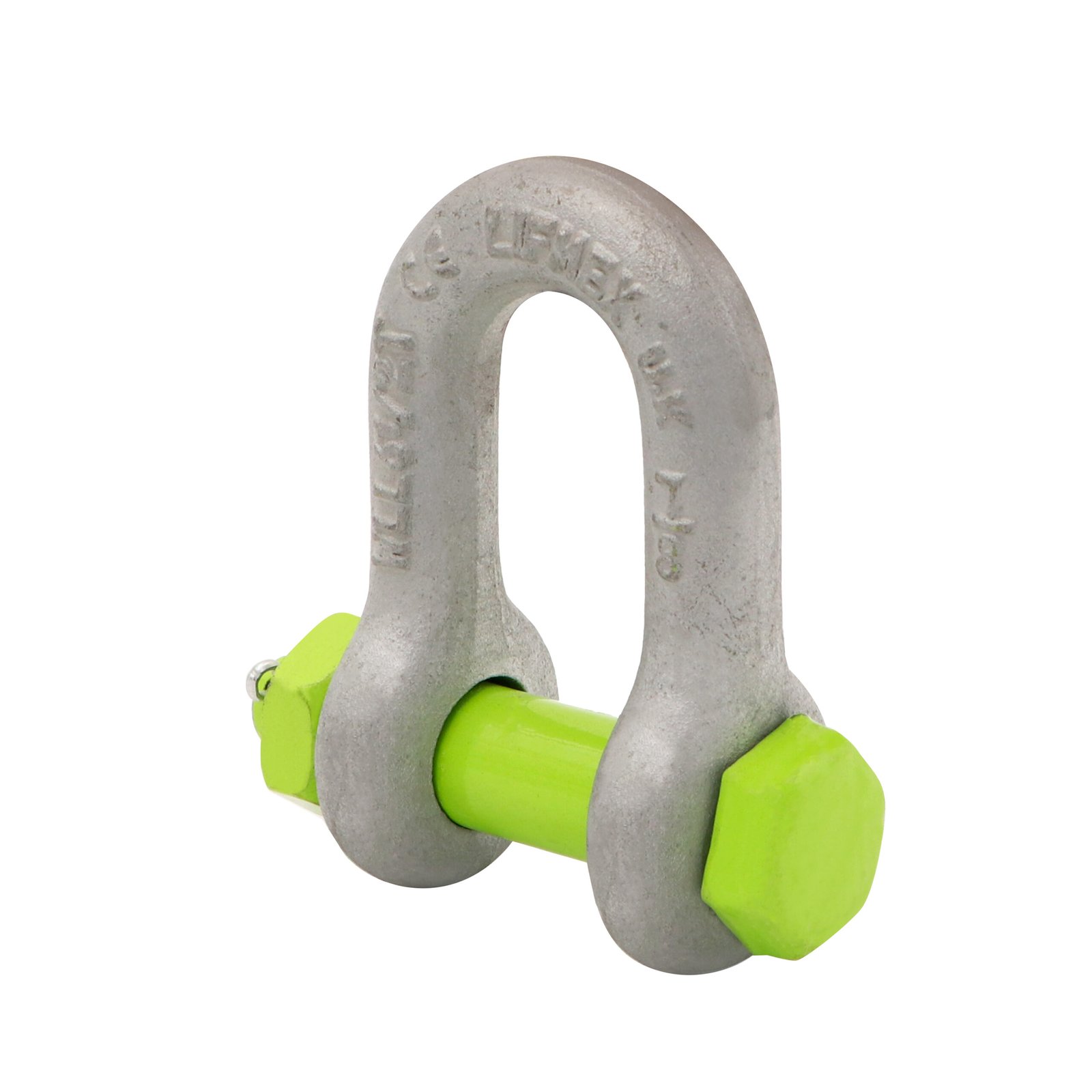

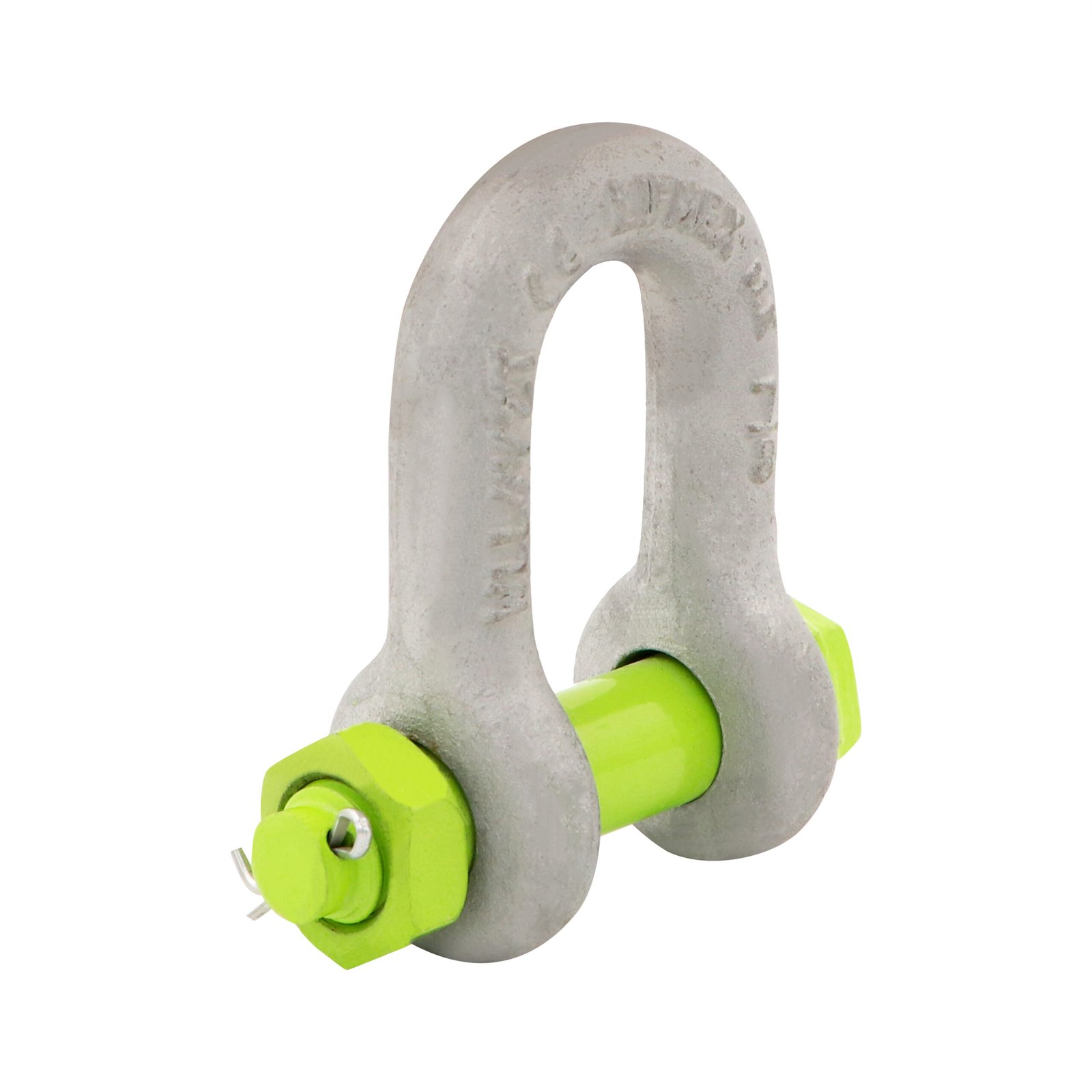

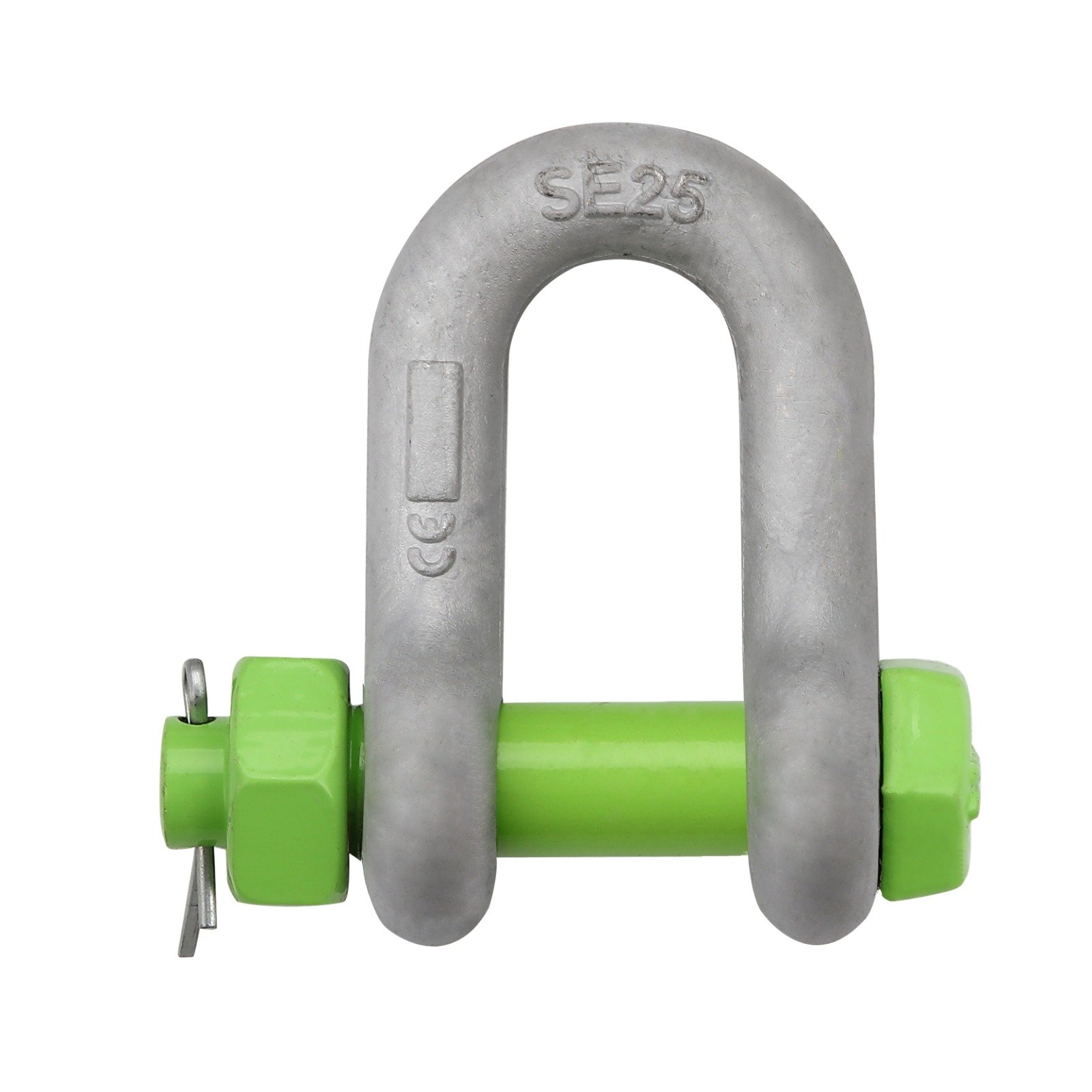

G2150 US Type Forged Bolt Type

Functions:

• Lifting: The shackle can be used to connect lifting hooks, chains, or other rigging hardware to loads.
• Rigging: It serves as a crucial component in rigging setups, allowing for the attachment of various components to form a complete lifting system.
• Anchoring: The shackle can be used as an anchor point for securing loads or equipment.
• Lashing: It can be used for lashing and securing cargo during transportation.

Key Features:

• Construction: Drop forged from high-quality carbon steel, ensuring strength and durability.
• Bolt Type: The shackle features a bolt and nut with a cotter pin for secure fastening.
• Hot-Dip Galvanized: This coating provides excellent corrosion resistance, extending the shackle’s lifespan.
• Quenched and Tempered: This heat treatment process enhances the shackle’s strength and toughness.
• Alloy Pin: The pin is made from alloy steel for superior strength and resistance to wear and tear.
• Wide Body Design: The shackle’s body is designed to handle multi-directional loads, providing versatility in various lifting scenarios.
• Clear Markings: The shackle is clearly marked with its Working Load Limit (WLL), grade, and other relevant information.

Key Points:

Robust Construction:

• Drop forged from high-quality carbon steel for exceptional strength and durability.
• Quenched and tempered for enhanced strength and toughness.
• Hot-dip galvanized for excellent corrosion resistance.

Safe Design:

• Designed with a safety factor of 6, meaning it can withstand six times its Working Load Limit before failure.
• Features an alloy steel pin for superior strength and wear resistance.

Versatility:

• Wide body design allows for multi-directional loading, making it suitable for various lifting and rigging applications.

Clear Markings:

• • Clearly marked with its Working Load Limit (WLL), grade, and other relevant information for easy identification and safe use.
