Grade 80 Chain

Brand
Brand Origin
Capacity
Color
Product Dimensions
Min Order Quantity

Brand

Lifmex

Capacity

1.1 TON TO 32.2 TON

About This Product

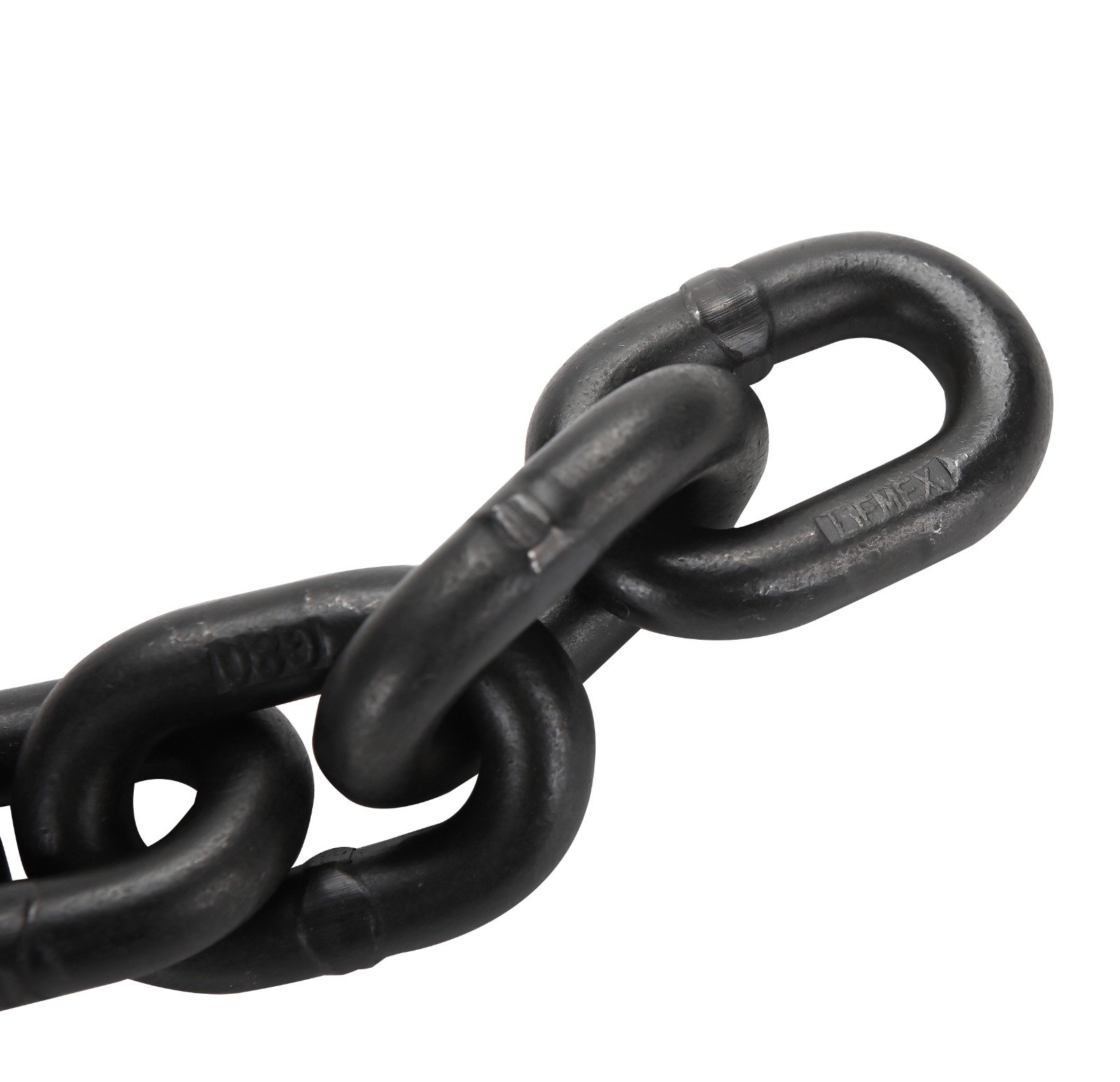

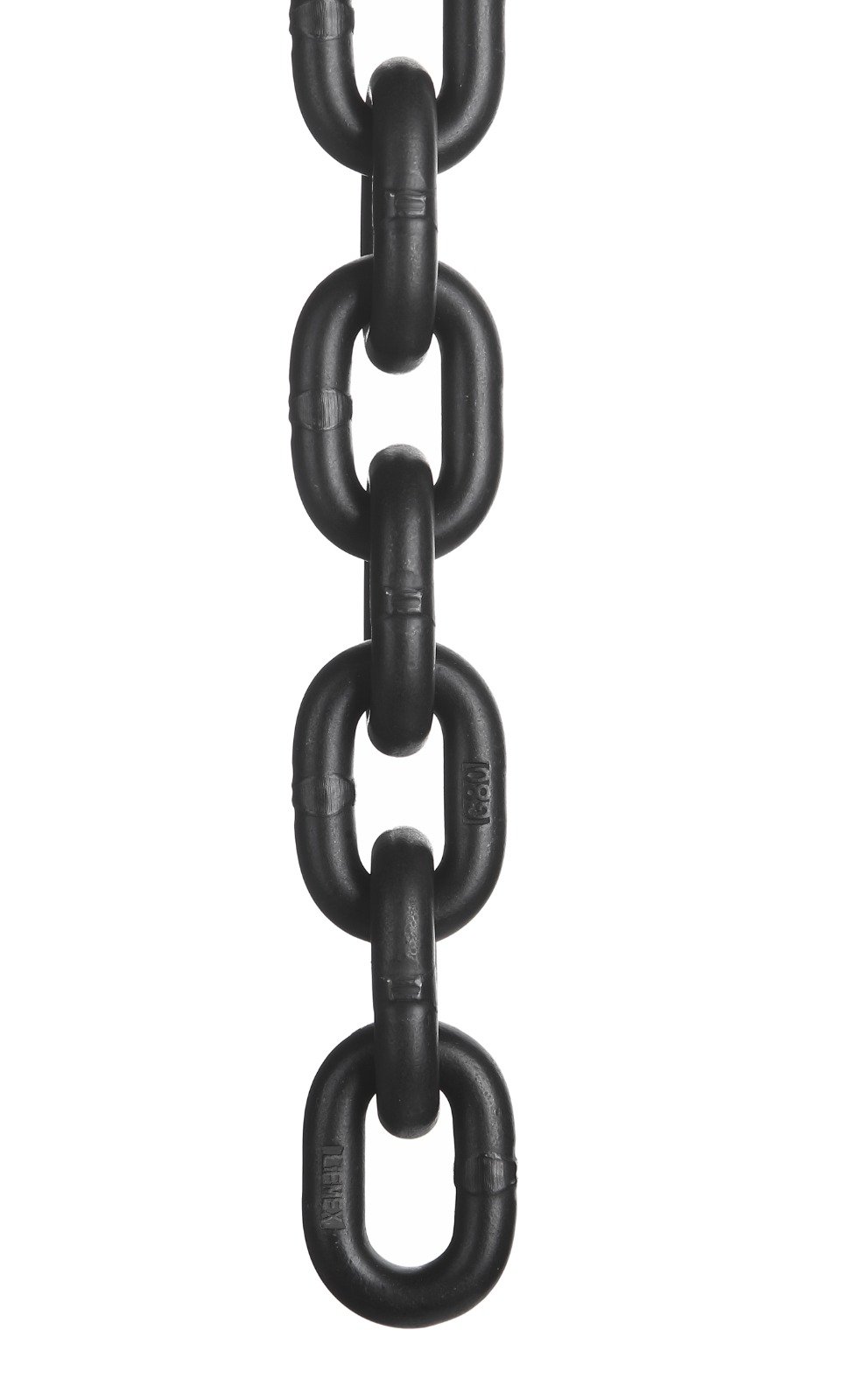

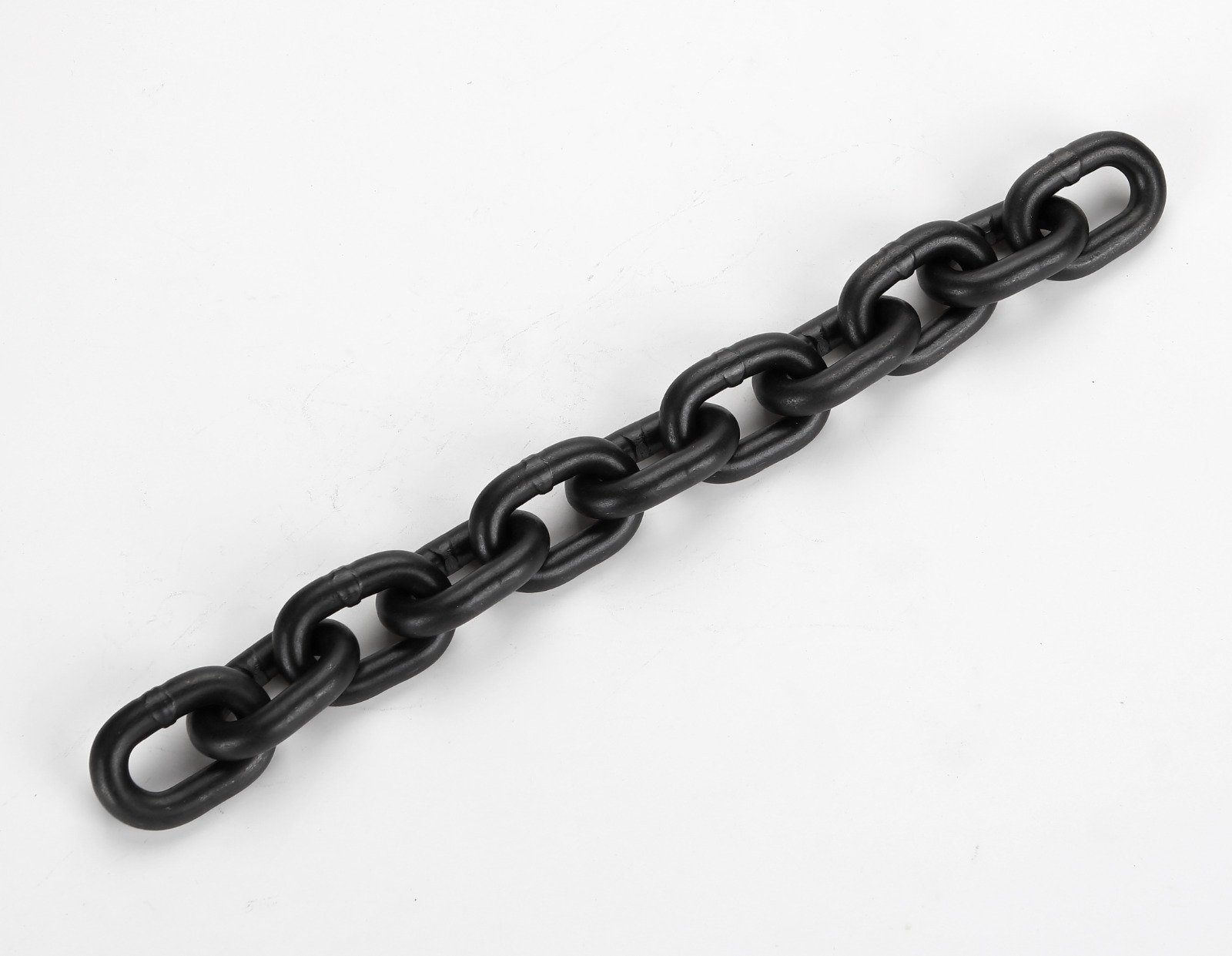

G80 Load Chain, also known as Grade 80 lifting chain or G80 alloy lifting chain, is a high-quality chain product used for various lifting applications.
It’s made from superior quality alloy steel and is manufactured according to strict standards like ISO 3077, EN 818, and AS2321.

Min Order Quantity: 1

Technical Details

Size (mm) d x P	Width (mm)		WLL (t)	BL (kN)	Approx N.W. (kg/mtr)
Size (mm) d x P	Inside MIN (a)	Outside MAX (b)	WLL (t)	BL (kN)	Approx N.W. (kg/mtr)
6 x 18	7.5	21	1.1	45.2	0.79
8 x 24	10	28	2	80.4	1.38
10 x 30	12.5	35	3.15	126	2.2
13 x 39	16.3	46	5.3	212	3.8
16 x 48	20	56	8	320	5.63
20 x 60	25	70	12.5	450	8.6
22 x 66	28	77	15.3	610	10.2
26 x 78	35	91	21.3	850	14.87
32 x 96	40	106	32.2	1286	22.29

Key Features and Benefits:

High Tensile Strength: G80 chains offer exceptional tensile strength, making them suitable for heavy-duty lifting tasks.
Durability: They are designed to withstand harsh conditions and resist wear and tear.
Safety: G80 chains are manufactured with a safety factor of 4, ensuring a high level of safety during lifting operations.
Versatility: They can be used in a wide range of applications, including construction, manufacturing, and material handling.

Common Applications:

Chain slings: Used to create custom lifting configurations for specific tasks.
Lifting equipment: Employed in various lifting equipment, such as chain hoists and winches.
Rigging: Utilized in rigging setups to secure loads and components.

Size (mm) d x P	Width (mm)		WLL (t)	BL (kN)	Approx N.W. (kg/mtr)
Size (mm) d x P	Inside MIN (a)	Outside MAX (b)	WLL (t)	BL (kN)	Approx N.W. (kg/mtr)
6 x 18	7.5	21	1.1	45.2	0.79
8 x 24	10	28	2	80.4	1.38
10 x 30	12.5	35	3.15	126	2.2
13 x 39	16.3	46	5.3	212	3.8
16 x 48	20	56	8	320	5.63
20 x 60	25	70	12.5	450	8.6
22 x 66	28	77	15.3	610	10.2
26 x 78	35	91	21.3	850	14.87
32 x 96	40	106	32.2	1286	22.29
