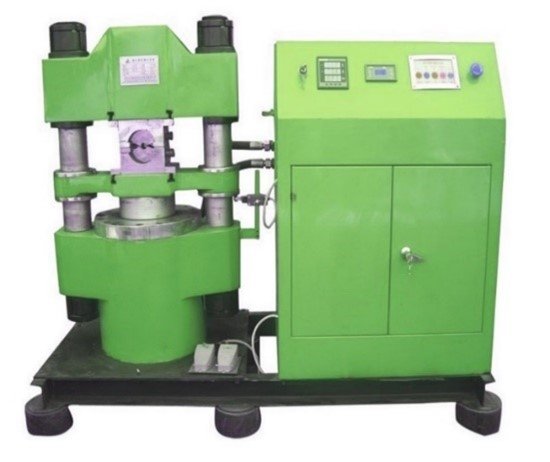

Ferrule Pressing Machine

Brand
Capacity

Brand

Lifmex

About This Product

A Ferrule Pressing Machine is a specialized tool used to crimp or press ferrules onto the ends of cables or wires. Ferrules are metal sleeves that provide mechanical support and electrical insulation to the wire or cable termination.

Min Order Quantity: 1

Technical Details

Specifications		Unit	LFPM0300
Nominal Pressure		kN	3000
Maximum Diameter in one pressure		mm	28
Maximum Diameter with multi bite pressing		mm	32
Maximum Piston Movement		mm	140
Maximum Working Movement		mm	60
Maximum Working Pressure		MPa	28
Approximate Weight		kg	2000
Overall Size (L x W x H)		m	1.95 x 0.95 x 1.5
Volume of Oil Tank		L	120
First time theory Storage Volume		L	80
Motor
	Voltage	V	380
	Power	kW	5.5
	Frequency	Hz	50
Hydraulic Pump
	Rated pressure	MPa	31.5
	Nominal flow	L/min	25
Speed of Piston
	Up	mm/s	5.3
	Down	mm/s	8.8
Dies allocation
	GB straight aluminum ferrule	#	10-32
	GB taper aluminum joint	#	10-32
	DIN straight aluminum joint	#	10-26
	DIN taper aluminum joint	#	10-26
	W902 conical steel ferrule	#	10-26

Key Features and Functions:

Precision Crimping: The machine ensures accurate and consistent crimping of ferrules, preventing loose connections and potential electrical hazards.
Efficient Operation: Automated or semi-automated machines can significantly increase productivity and reduce labor costs.
Wide Range of Applications: Ferrule pressing machines can be used for various wire sizes and types, making them versatile tools in electrical and electronic assembly.
Adjustable Crimping Force: Many machines allow for adjustment of the crimping force, ensuring optimal results for different wire gauges and ferrule types.
Durable Construction: The machines are built to withstand heavy-duty use and provide reliable performance.

Common Applications:

- Electrical Wiring: Crimping wire ends for connections in electrical panels, control cabinets, and other electrical equipment.
- Telecommunications: Crimping connectors for network cables, fiber optic cables, and other telecommunications equipment.
- Automotive: Crimping wire connections in automotive wiring harnesses.
- Aerospace: Crimping wire connections in aircraft and aerospace equipment.

Specifications		Unit	LFPM0300
Nominal Pressure		kN	3000
Maximum Diameter in one pressure		mm	28
Maximum Diameter with multi bite pressing		mm	32
Maximum Piston Movement		mm	140
Maximum Working Movement		mm	60
Maximum Working Pressure		MPa	28
Approximate Weight		kg	2000
Overall Size (L x W x H)		m	1.95 x 0.95 x 1.5
Volume of Oil Tank		L	120
First time theory Storage Volume		L	80
Motor
	Voltage	V	380
	Power	kW	5.5
	Frequency	Hz	50
Hydraulic Pump
	Rated pressure	MPa	31.5
	Nominal flow	L/min	25
Speed of Piston
	Up	mm/s	5.3
	Down	mm/s	8.8
Dies allocation
	GB straight aluminum ferrule	#	10-32
	GB taper aluminum joint	#	10-32
	DIN straight aluminum joint	#	10-26
	DIN taper aluminum joint	#	10-26
	W902 conical steel ferrule	#	10-26
