- Availability
- In Stock

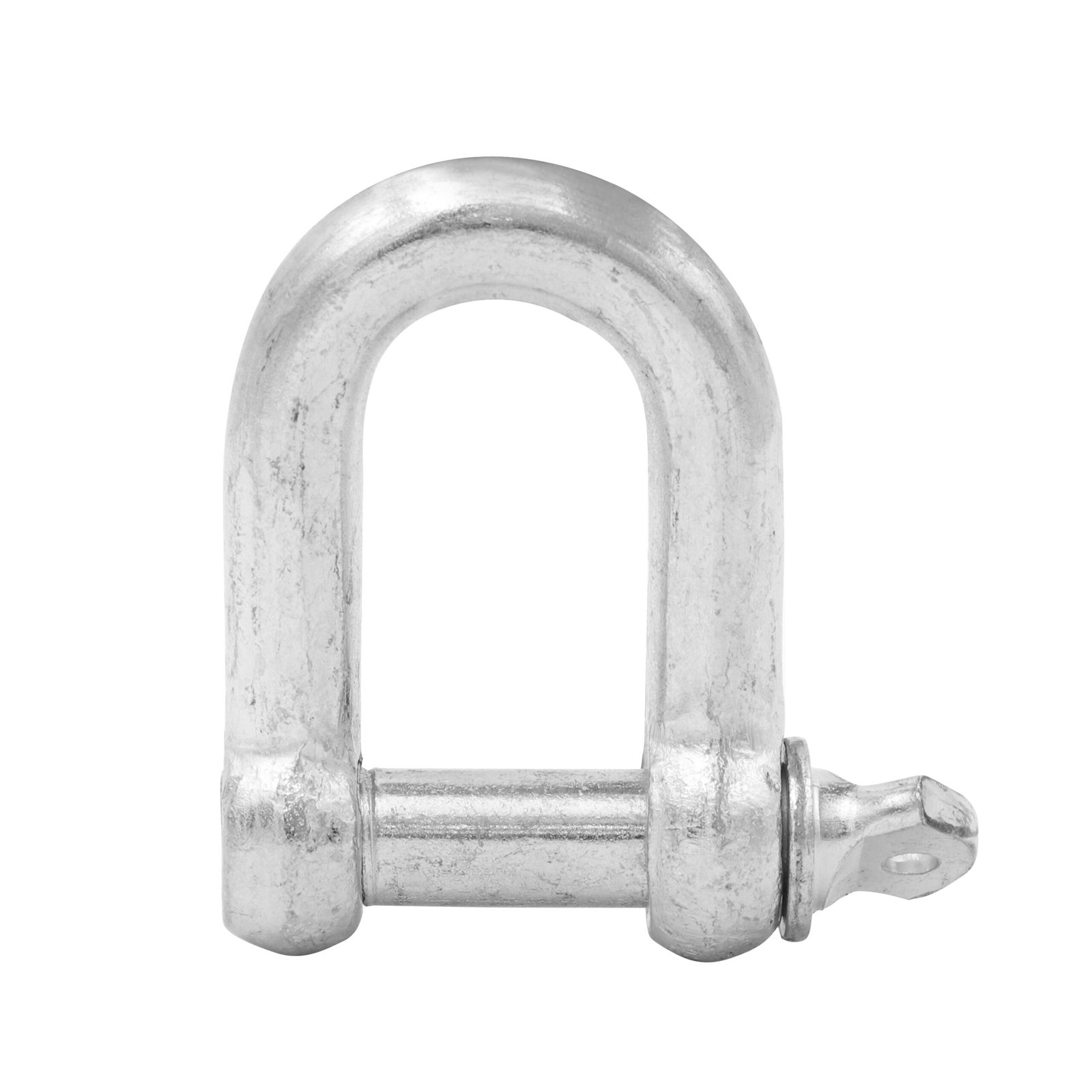

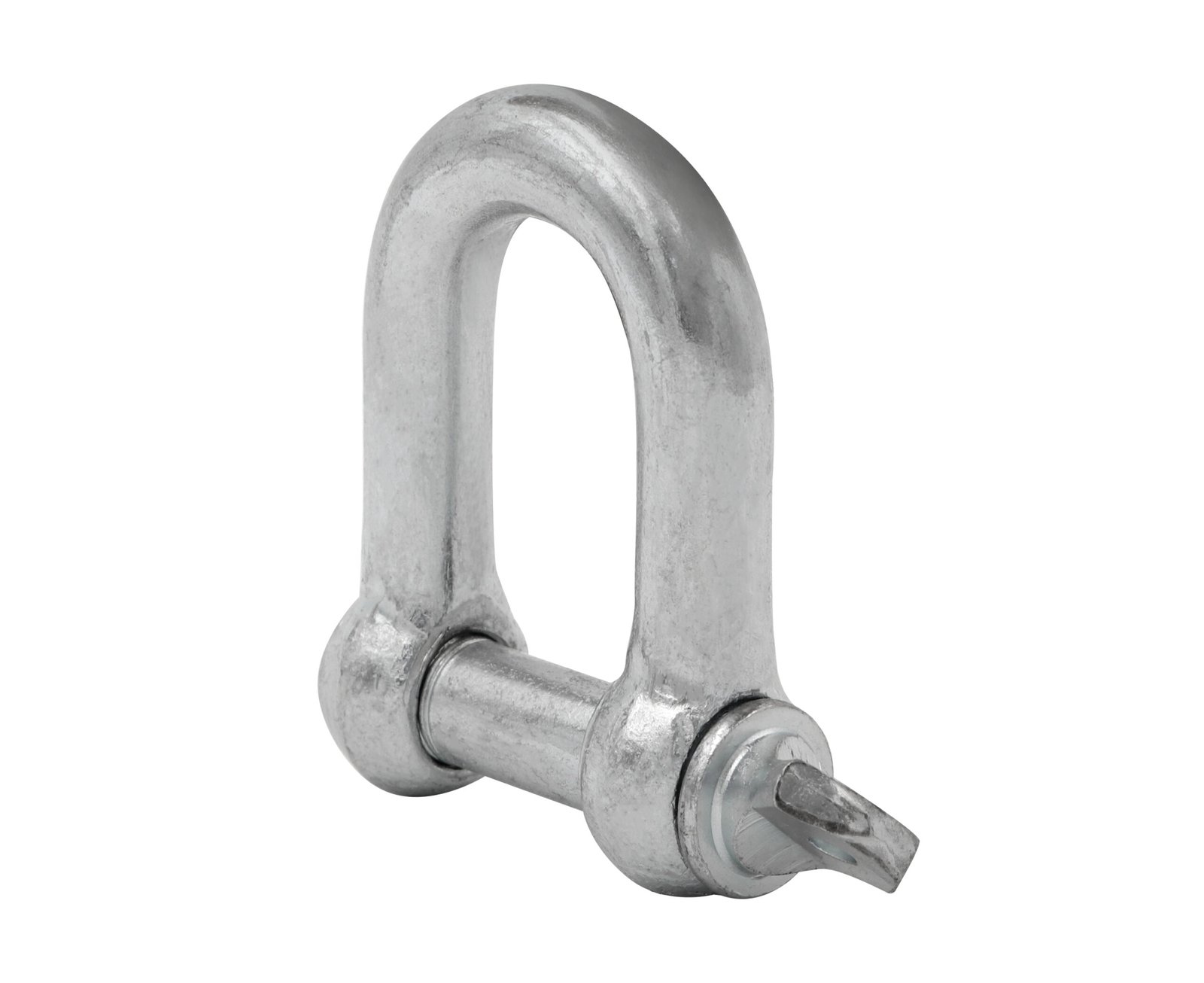

Standard Commercial Type Screw Pin Chain Shackle
| Brand | |
| Capacity |
Brand
Lifmex
Capacity
80 KG TO 5000 KG
About This Product
- A Commercial Type Screw Pin Chain Shackle is a type of lifting and rigging hardware used to connect chains or ropes together, or to attach them to other components like hooks or rings. It consists of a U-shaped body with a screw pin to secure the connection.
Technical Details
| Size (mm) |
WLL (kg) |
Dimensions (mm) | Approx N.W. (kg/pc) |
|||
|---|---|---|---|---|---|---|
| B | D | L | d/d1 | |||
| 5 | 80 | 10 | 10 | 18.5 | 5 | 0.014 |
| 6 | 100 | 12 | 11 | 25 | 6.5 | 0.028 |
| 8 | 200 | 14 | 15 | 31 | 8.5 | 0.049 |
| 10 | 320 | 18 | 17 | 36 | 10 | 0.049 |
| 12 | 520 | 24 | 23 | 46 | 13 | 0.18 |
| 16 | 800 | 30 | 32 | 58 | 16 | 0.42 |
| 20 | 1100 | 36 | 37 | 74 | 20 | 0.772 |
| 22 | 1500 | 43 | 43 | 86 | 23 | 1.18 |
| 25 | 2100 | 47 | 50 | 95 | 27 | 1.50 |
| 28 | 3000 | 55 | 56 | 108 | 30 | 2.50 |
| 32 | 3500 | 64 | 64 | 130 | 34 | 3.70 |
| 38 | 5000 | 76 | 76 | 145 | 40 | 6.10 |
Functions:
- Connecting Chains and Ropes: Used to join chains or ropes together to form longer lengths or create specific configurations.
- Attaching to Other Components: Can be used to attach chains or ropes to hooks, rings, or other lifting equipment.
- Creating Lifting Assemblies: Used to assemble custom lifting configurations for specific tasks.
Key Features:
- U-shaped Body: Provides a strong and durable connection point.
- Screw Pin: A threaded pin that passes through the shackle body to secure the connection.
- High-Strength Material: Typically made from forged steel for superior strength and durability.
- Working Load Limit (WLL): The maximum safe load the shackle can handle, clearly marked on the device.
Common Applications:
- Construction: Securing loads and equipment.
- Material Handling: Lifting and transporting heavy materials.
- Industrial Settings: Various industrial applications, such as manufacturing and maintenance.
- Marine: Used for anchoring, mooring, and towing.
- Off-Road Recovery: Vehicle recovery and towing
| Size (mm) |
WLL (kg) |
Dimensions (mm) | Approx N.W. (kg/pc) |
|||
|---|---|---|---|---|---|---|
| B | D | L | d/d1 | |||
| 5 | 80 | 10 | 10 | 18.5 | 5 | 0.014 |
| 6 | 100 | 12 | 11 | 25 | 6.5 | 0.028 |
| 8 | 200 | 14 | 15 | 31 | 8.5 | 0.049 |
| 10 | 320 | 18 | 17 | 36 | 10 | 0.049 |
| 12 | 520 | 24 | 23 | 46 | 13 | 0.18 |
| 16 | 800 | 30 | 32 | 58 | 16 | 0.42 |
| 20 | 1100 | 36 | 37 | 74 | 20 | 0.772 |
| 22 | 1500 | 43 | 43 | 86 | 23 | 1.18 |
| 25 | 2100 | 47 | 50 | 95 | 27 | 1.50 |
| 28 | 3000 | 55 | 56 | 108 | 30 | 2.50 |
| 32 | 3500 | 64 | 64 | 130 | 34 | 3.70 |
| 38 | 5000 | 76 | 76 | 145 | 40 | 6.10 |
